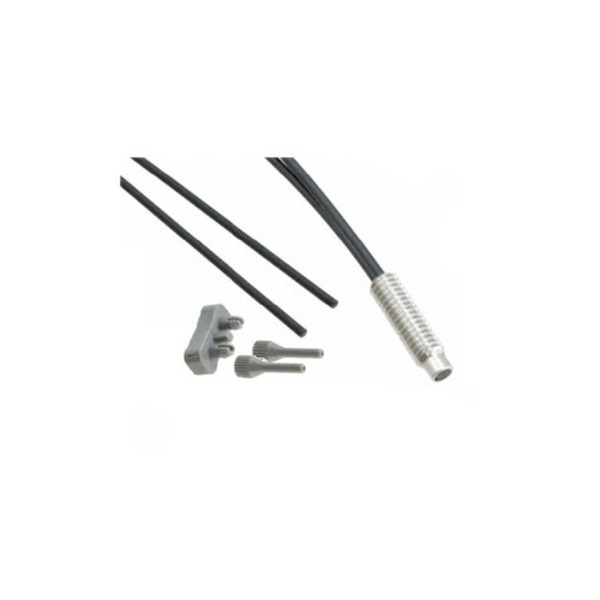

PANASONIC FD-41W DIFFUSE FIBER OPTIC CABLE
Starting At: $108.23
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FD-41W
IMS Product Code: 1972751
Packaging: Sold Individually
Description:
Panasonic FD-41W Diffuse Fiber Optic Cable, M4 Threaded, 2m R1 Cuttable Cable, Tight Bend Diffuse Fiber Cable with Side by Side Optics, M4 Threaded Barrel 14mm Long, 2 Meter Free-cut Cable With 1mm Bending Radius
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Thread Mount
- Sensing Mode: Diffuse
- Key Attributes: Axial Sensing
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: M4
- Mounting Dimension: M4 x 14mm
- Fiber Cable Feature: Featues SUS body, nuts, locking washers. Beam Axis deviation within ±3°
- Fiber Cable Bend Radius: R1 Tight Bend
- Cuttable / Non-Cuttable: Cuttable
- Fiber Length: 2 meter
- Fiber Core: Ø 1.0mm
- Temperature Rating: -40 to +60° C
- Includes: FX-AT5 grey attachment w/tips for Ø1.0mm cuttable fibers, fiber cutter
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
