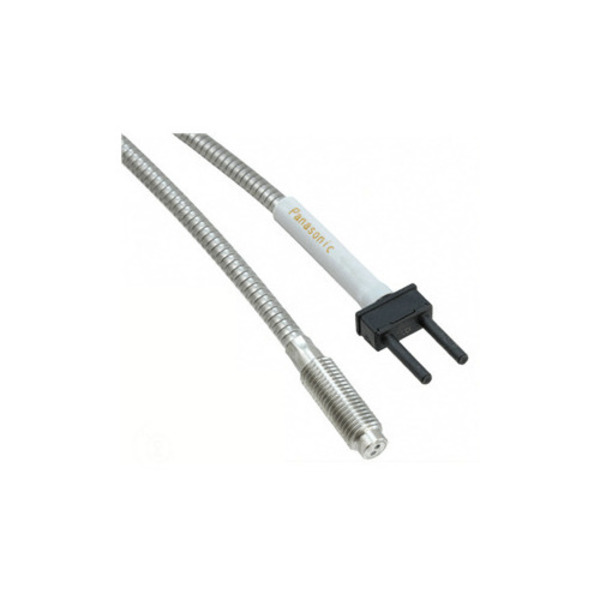

PANASONIC FD-64X DIFFUSE FIBER OPTIC CABLE
Starting At: $100.43
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FD-64X
IMS Product Code: 1972777
Packaging: Sold Individually
Description:
Panasonic FD-64X Diffuse Fiber Optic Cable, M6 Threaded, SUS Stainless Steel Jacketed, 1m R4 Fixed Cable, Diffuse Stainless Steel Sheath Fiber Cable With Side By Side Optics, M6 Threaded Barrel 22mm Long, 1 Meter Cable With 4mm Bending Radius
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Thread Mount
- Sensing Mode: Diffuse
- Key Attributes: Axial Sensing
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: M6
- Mounting Dimension: M6 x 22mm
- Fiber Cable Feature: Featues SUS body, nuts, locking washers. Beam Axis deviation within ±3° SUS Sheath Provides Fiber Cable Protection
- Fiber Cable Bend Radius: R4 High-flex
- Cuttable / Non-Cuttable: Non-Cuttable w/ SUS Jacket
- Fiber Length: 1 meter
- Fiber Core: Ø 0.25mm x 9 / Ø 0.25mm x 9
- Temperature Rating: -55 to +80° C
- Includes: Designed to fit FX110/300/500 amplifiers
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
