PANASONIC FD-E23 DIFFUSE FIBER OPTIC CABLE

MSRP: $106.00
Starting At: $103.35

Quick Overview

Manufactured By: PANASONIC
Manufacturer Part Number: FD-E23
IMS Product Code: 1972794
Packaging: Sold Individually

Description:

Panasonic FD-E23 Diffuse Fiber Optic Cable, Cylindrical Smooth Type, ø3mm, 1m R4 Non-Cuttable Cable, Coaxial Optics, 15mm Long, 3mm Smooth Barrel With 0.65mm Sleeve That is 5mm Long, 1 Meter Cable With 4mm Bending Radius

Specifications:

  • Series: FT/FD/FR
  • Key Characteristics: Cylindrical Body
  • Sensing Mode: Diffuse
  • Key Attributes: Micro-Tip Axial Sensing
  • Lens Compatible: Not Compatible With Add-On Lens
  • Mounting Body Style: Ø 3.0mm

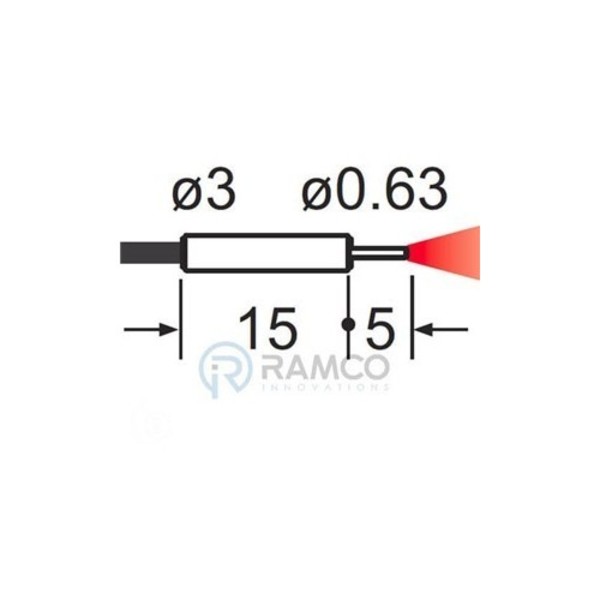

  • Mounting Dimension: Ø 3.0mm x 15mm
  • Fiber Cable Feature: Ultra-small diameter non-bendable sleeve Ø 0.63mm x 5mm
  • Fiber Cable Bend Radius: R4 High-flex
  • Cuttable / Non-Cuttable: Non-Cuttable
  • Fiber Length: 1 meter
  • Fiber Core: Ø 0.125mm x 9 / Ø 0.25mm x 1
  • Temperature Rating: -40 to +70° C
  • Includes: Designed to fit FX110/300/500 amplifiers

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 30 Days

Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. IMS Supply is not an authorized distributor, reseller or representative of Panasonic. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
