PANASONIC FD-EG31 DIFFUSE COAXIAL FIBER OPTIC CABLE
Starting At: $111.15
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FD-EG31
IMS Product Code: 1972803
Packaging: Sold Individually
Description:

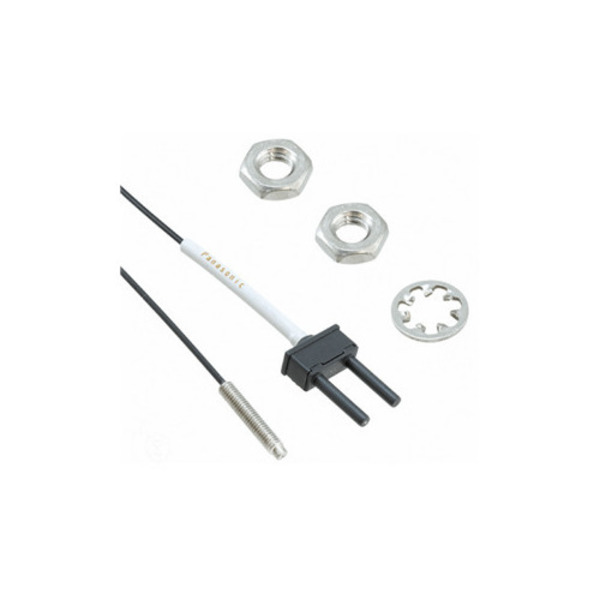

Panasonic FD-EG31 Diffuse Coaxial Fiber Optic Cable, M3 Threaded, .5m R4 Non-Cuttable Cable, Lens Mountable FX-MR3, FX-MR6, M3 Threaded Barrel 16mm Long, 1 Meter Non-cuttable Fiber Cable With 4mm Bending Radius
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Thread Mount
- Sensing Mode: Diffuse Coaxial
- Key Attributes: Axial Sensing
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: M3
- Mounting Dimension: M3 x 16mm
- Fiber Cable Feature: Featues SUS body, nuts, locking washers. Beam Axis deviation within ±5°For High Precision Beam Spot use the following add-on lens: FX-MR6 for Ø0.1mm at 7mm distance, FX-MR3 for Ø0.15mm at 7mm distance. Other lens options are available.
- Fiber Cable Bend Radius: R4 High-flex
- Cuttable / Non-Cuttable: Non-Cuttable
- Fiber Length: 1 meter
- Fiber Core: Ø 0.125mm x 1 / Ø 0.125mm x 6
- Temperature Rating: -20 to +60° C
- Includes: Designed to fit FX110/300/500 amplifiers
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
