PANASONIC FD-H20-M1 DIFFUSE COAXIAL FIBER OPTIC CABLE
Starting At: $232.05
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FD-H20-M1
IMS Product Code: 1972840
Packaging: Sold Individually
Description:
Panasonic FD-H20-M1 Diffuse Coaxial Fiber Optic Cable, M6 Threaded, High-Temp Rated to 200°C, 1m Non-Cuttable Cable, Heat Resistant Rated to 200° C, M6 Threaded Sensing Head, Coaxial Style Fiber, 1 Meter Long Non-cuttable Fiber Cable
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Heat-resistant
- Sensing Mode: Diffuse Coaxial
- Key Attributes: Axial Sensing
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: M6

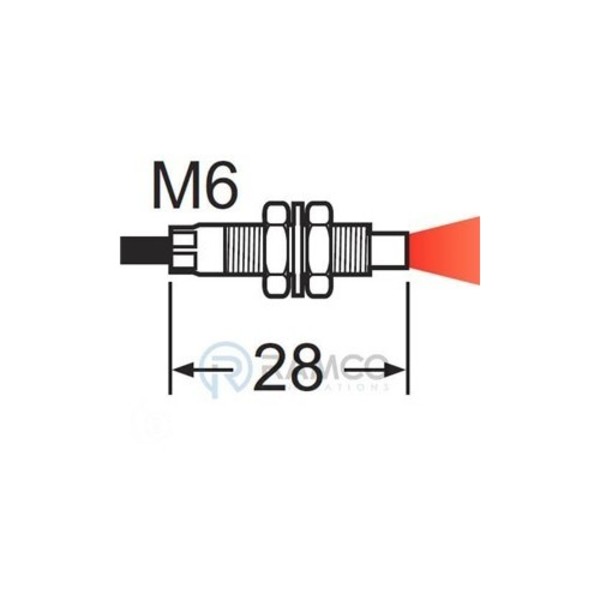

- Mounting Dimension: M6 x 28mm
- Fiber Cable Feature: Features wide temperature range for use in severe temperture enviroments. SUS Sheath Provides Fiber Cable Protection
- Fiber Cable Bend Radius: R25
- Cuttable / Non-Cuttable: Non-Cuttable
- Fiber Length: 1 meter
- Fiber Core: Ø 1.1mm x 2 (coaxial type)
- Temperature Rating: -60 to +200° C
- Item Weight: 0.29 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
