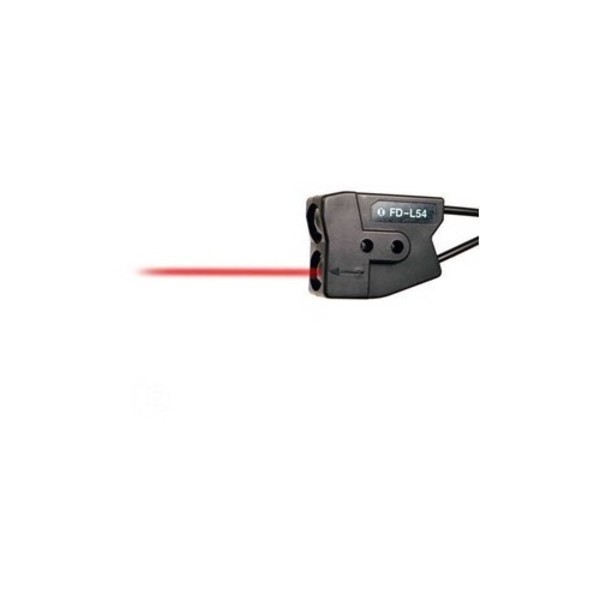

PANASONIC FD-L54 COLOR DETECTION FIBER SENSOR W/ CABLE
Starting At: $143.29
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FD-L54
IMS Product Code: 1948459
Packaging: Sold Individually
Description:
Panasonic FD-L54 Color Detection Fiber Sensor w/ Cable, Sensor Head 50mm Fixed-Focus 1m, Sensing Distance 30mm-50mm, For Use with FZ-11(P) Amplifier, Fixed Sensing Distance of 40mm, 8mm Diameter Beam Spot, 1m Non-cuttable Fiber Cable Length
Specifications:
- Series: FZ-10
- Detection Type: Color & Color Mark Sensing
- Light Source: RGB LED
- Sensor Type: Fiber Optic
- Features: Just pressing a button recognizes the reference color you want to detect as the criterion even with Auto-Teaching. 16-step tolerance adjuster determines acceptable tolerance of taught color/mark. Precise discrimination between white and yellow surfaces. Multiple fibers provide various spot sizes and distances.
- Sensitivity: PB Teach
- Teaching: Manual and Auto-teaching: 1-point teach
- Display Type: LED Indicators
- Display Details: Power (green) Output (red)
- Beam Spot Optimum Distance: ø8.0mm
- Optimum Distance: 40mm
- Sensing: 30 to 50mm
- Includes: Yes
- Timing: OFF-delay (40ms) selectable
- Number of Storage: 1
- Control Output: NPN or PNP
- Output Details: Light-ON / Dark-ON Selectable
- Response Time: Color mode: 1ms
- Supply Voltage: DC
- Supply Voltage Details: 12 to 24VDC
- Material: Polycarbonate housing, Acrylic lens
- Temperature: -20 to +70° C
- Connection Details: Cable 2 meter
- Item Weight: 0.13 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 12 hours and 14 minutes.
