PANASONIC FD-Z40W DIFFUSE FIBER OPTIC CABLE

MSRP: $123.00
Starting At: $119.93

Quick Overview

Manufactured By: PANASONIC
Manufacturer Part Number: FD-Z40W
IMS Product Code: 1973026
Packaging: Sold Individually

Description:

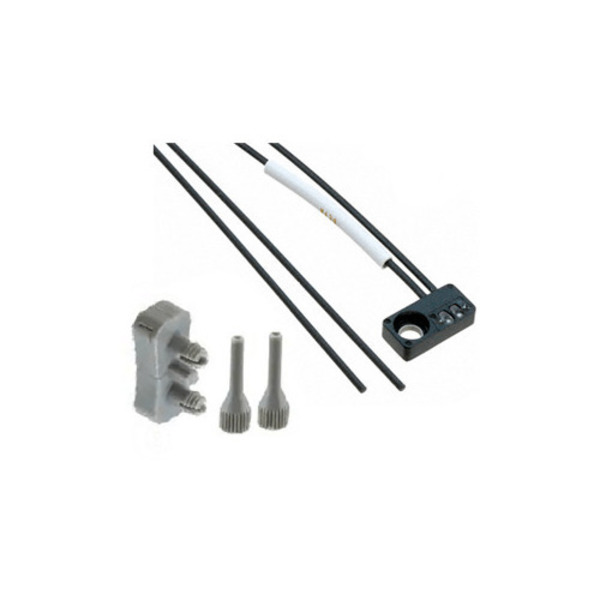

Panasonic FD-Z40W Diffuse Fiber Optic Cable, Flat Type with Boss, Front Sensing, 2m R1 Cuttable Cable

Specifications:

  • Series: FT/FD/FR
  • Key Characteristics: Thin Rectangular
  • Sensing Mode: Diffuse
  • Key Attributes: Front Sensing
  • Lens Compatible: Not Compatible With Add-On Lens
  • Mounting Body Style: Square/Rectangular
  • Mounting Dimension: 14mm x 7mm x 3.5mm
  • Fiber Cable Feature: Super thin body and rectangular shape can be installed in very narrow locations. Sensing body features bottom boss for 1-point mounting installation.
  • Fiber Cable Bend Radius: R1 Tight Bend
  • Cuttable / Non-Cuttable: Cuttable
  • Fiber Length: 2 meter
  • Fiber Core: Ø 1.0mm
  • Temperature Rating: -40 to +60° C
  • Includes: FX-AT5 grey attachment w/tips for Ø1.0mm cuttable fibers, and cutter
  • Item Weight: 0.10 lbs per EA

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 30 Days
