PANASONIC FR-KZ22E RETRO-REFLECTIVE FIBER OPTIC CABLE
Starting At: $314.93
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FR-KZ22E
IMS Product Code: 1974722
Packaging: Sold Individually
Description:

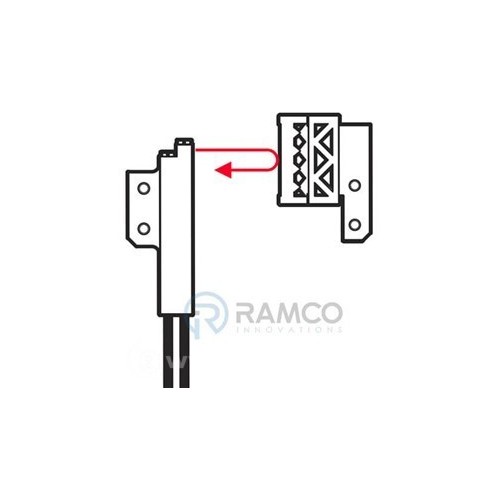

Panasonic FR-KZ22E Retro-Reflective Fiber Optic Cable, Side Sensing, Polarized For Mapping, 2m R2 High-Flex Cuttable Cable, Designed For Wafer Mapping, Side Sensing, Includes Reflector, Sensor Dimensions: 4 mm W x 2 mm H x 21.5 mm D, 2 Meter High-Flex Cuttable Cable With 2 Mm Bending Radius
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Narrow Beam
- Sensing Mode: Retro-reflective
- Key Attributes: Side-View
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: Square/Rectangular
- Mounting Dimension: 7.5mm X 2.2mm x 11.2mm
- Fiber Cable Feature: Retro-reflective Fiber Optic Sensor for Wafer Mapping Applications. Aperture angle of 3°. Reflector is included
- Fiber Cable Bend Radius: R2 High-flex
- Cuttable / Non-Cuttable: Cuttable
- Fiber Length: 2 meter
- Fiber Core: Ø 0.5mm
- Temperature Rating: -40 to +60° C
- Includes: FX-AT4 black attachment w/tips for Ø1.0mm fibers, FR- reflector, and cutter
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
