PANASONIC FR-KZ50H RETRO-REFLECTIVE FIBER OPTIC CABLE

MSRP: $169.00
Starting At: $164.78

Quick Overview

Manufactured By: PANASONIC
Manufacturer Part Number: FR-KZ50H
IMS Product Code: 1974725
Packaging: Sold Individually

Description:

Panasonic FR-KZ50H Retro-Reflective Fiber Optic Cable, End Sensing, Narrow View, 2m R2 High-Flex Cuttable Cable, Narrow View Version, End Sensing, Includes Reflector, Sensor Dimensions: 28 mm W x 25 mm H x 5.2 mm D, 2 Meter High-flex Cable With 2 Mm Bending Radius

Specifications:

  • Series: FT/FD/FR
  • Key Characteristics: Narrow Beam
  • Sensing Mode: Retro-reflective
  • Key Attributes: Axial Sensing
  • Lens Compatible: Not Compatible With Add-On Lens
  • Mounting Body Style: Square/Rectangular

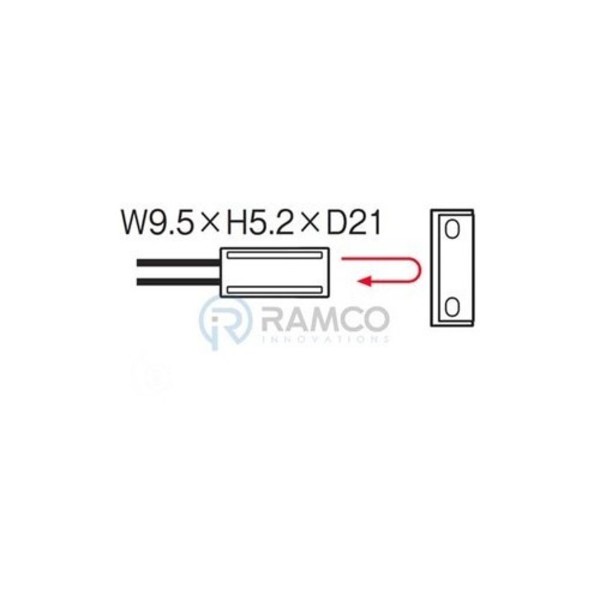

  • Mounting Dimension: 5.2mm X 9.5mm x 21mm
  • Fiber Cable Feature: Narrow Beam Type Retro-reflective Fiber Optic Sensor. Side Sensing Style. Reflector is included
  • Fiber Cable Bend Radius: R2 High-flex
  • Cuttable / Non-Cuttable: Cuttable
  • Fiber Length: 2 meter
  • Fiber Core: Ø 0.5mm
  • Temperature Rating: -40 to +60° C
  • Includes: FX-AT4 black attachment w/tips for Ø1.0mm fibers, MS-FD-2 mtg brkt, FR-003 reflector, and cutter
