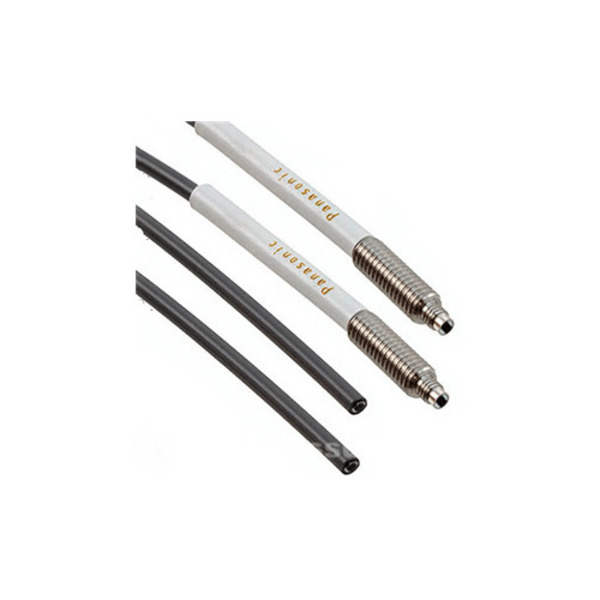

PANASONIC FT-42W THRUBEAM FIBER OPTIC CABLE
Starting At: $82.88
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FT-42W
IMS Product Code: 1974766
Packaging: Sold Individually
Description:
Panasonic FT-42W Thrubeam Fiber Optic Cable, M4 Threaded, 2m R1 Cuttable Cable, M4 Threaded Sensing Head 15mm Long, 1.1 Meter Sensing Distance with FX-500 Series Amplifier at STD Mode, 2 Meter Free Cut Cable with 1mm Bending Radius
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Thread Mount
- Sensing Mode: Thrubeam
- Key Attributes: Axial Sensing
- Lens Compatible: Add-On Lens Compatible
- Mounting Body Style: M4
- Mounting Dimension: M4 x 15mm
- Fiber Cable Feature: Featues SUS body, nuts, locking washers. Beam Axis deviation within ±3°Use add-on lens for increasing sensing distance: FX-LE1, FX-LE2, and Side-view type FX-SV1
- Fiber Cable Bend Radius: R1 Tight Bend
- Cuttable / Non-Cuttable: Cuttable
- Fiber Length: 2 meter
- Fiber Core: Ø 1.0mm
- Temperature Rating: -40 to +60° C
- Includes: FX-AT3 transclucent orange attachment for Ø2.2mm cuttable fibers, fiber cutter
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
