PANASONIC FT-H20-J30-S THRUBEAM FIBER OPTIC CABLE KIT

MSRP: $283.00
Starting At: $275.93

Quick Overview

Manufactured By: PANASONIC
Manufacturer Part Number: FT-H20-J30-S
IMS Product Code: 1974808
Packaging: Sold Individually

Description:

Panasonic FT-H20-J30-S Thrubeam Fiber Optic Cable Kit, Includes: 1 Set of 300 mm High-Temp M4 Fibers Rated to 200°C and 1 Set of FT-42, 2m 80° C Standard Fiber Cable With Connector, Amplifier Sold Separately

Specifications:

  • Series: FT/FD/FR
  • Key Characteristics: Heat-resistant
  • Sensing Mode: Thrubeam
  • Key Attributes: Axial Sensing
  • Lens Compatible: Add-On Lens Compatible
  • Mounting Body Style: M4

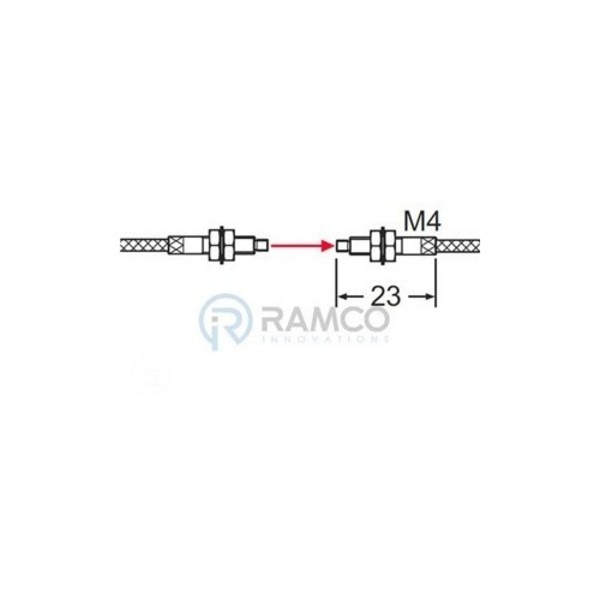

  • Mounting Dimension: M4 x23mm
  • Fiber Cable Feature: Heat-resistant joint fiber set includes fibers for high-temp side and fiber for ordinary side. SUS Sheath Provides Fiber Cable Protection Use add-on lens for increasing sensing distance: FX-LE1, FX-LE2, and Side-view type FX-SV1
  • Fiber Cable Bend Radius: R4 High-flex
  • Cuttable / Non-Cuttable: Cuttable w/SUS Jacket
  • Fiber Length: 2.3 meter
  • Fiber Core: Ø 1.0mm
  • Temperature Rating: -60 to +200° C
  • Includes: FT-42, FX-AT3 transclucent orange attachment for Ø2.2mm cuttable fibers, fiber cutter
  • Item Weight: 0.20 lbs per EA

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 30 Days
