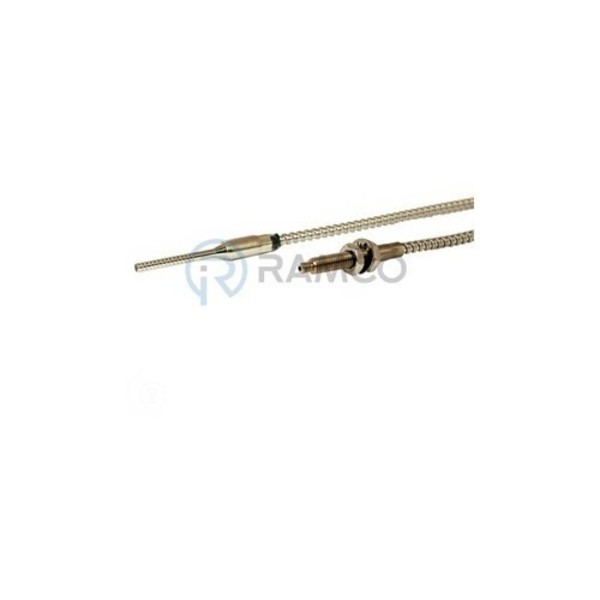

PANASONIC FT-H35-M2 THRUBEAM FIBER OPTIC CABLE
Starting At: $370.50
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FT-H35-M2
IMS Product Code: 1974841
Packaging: Sold Individually
Description:
Panasonic FT-H35-M2 Thrubeam Fiber Optic Cable, M4 Threaded, High-Temp Rated to 350°C, 2m Non-Cuttable Stainless Steel Flex-Tube Cable, Temperature Rating Of -60° To 350°C With R25 mm Bending Radius, M4 Threaded Sensing Head With M2.6 × 0.45 Threaded Tip For Adding Expansion Lens, 1.2 mm Fiber Core, 2m Long Non-cuttable Stainless Steel Flex-tube Fiber Cable Length
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Heat-resistant
- Sensing Mode: Thrubeam
- Key Attributes: Axial Sensing
- Lens Compatible: Add-On Lens Compatible
- Mounting Body Style: M4
- Mounting Dimension: M4 x 30mm
- Fiber Cable Feature: Features wide temperature range for use in severe temperture enviroments SUS Sheath Provides Fiber Cable Protection Use add-on lens for increasing sensing distance: FX-LE1, FX-LE2, and Side-view type FX-SV1
- Fiber Cable Bend Radius: R25
- Cuttable / Non-Cuttable: Non-Cuttable w/ SUS Jacket
- Fiber Length: 2 meter
- Fiber Core: Ø 1.2mm
- Temperature Rating: -60 to +350° C
- Includes: Mounting hardware
- Item Weight: 0.29 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
