PANASONIC FT-H35-M2S6 THRUBEAM FIBER OPTIC CABLE
Starting At: $422.18
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FT-H35-M2S6
IMS Product Code: 1974844
Packaging: Sold Individually
Description:

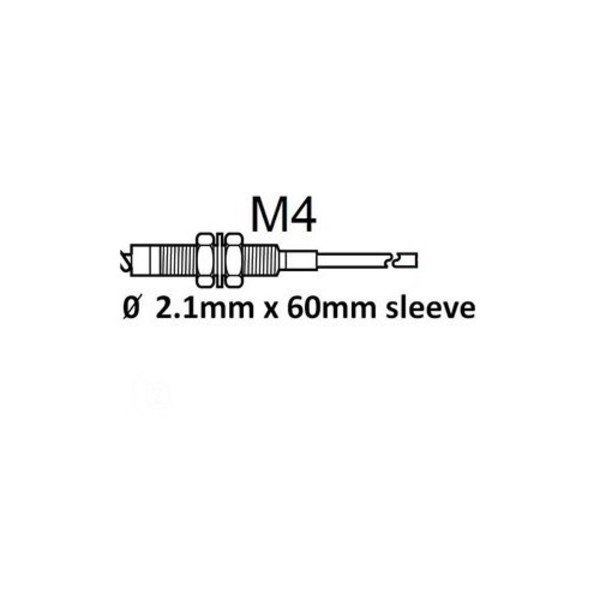

Panasonic FT-H35-M2S6 Thrubeam Fiber Optic Cable, M4 Threaded, High-Temp Rated to 350°C, 60mm Bendable Sleeve, 2m Non-Cuttable Stainless Steel Flex-Tube Cable, Temperature Rating Of -60° To 350°C With R25 mm Bending Radius, M4 Threaded Sensing Head With 2.1 mm OD X 60 Mm Bendable Sleeve, 1.2 mm Fiber Core, 2 M Long Non-cuttable Stainless Steel Flex-tube Fiber Cable Length
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Heat-resistant
- Sensing Mode: Thrubeam
- Key Attributes: Sleeve Non-Bendable
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: M4
- Mounting Dimension: M4 x 27mm
- Fiber Cable Feature: Features wide temperature range for use in severe temperture enviroments. SUS Sheath Provides Fiber Cable Protection Sleeve is bendable using FB-1 tool.
- Fiber Cable Bend Radius: R25
- Cuttable / Non-Cuttable: Non-Cuttable w/ SUS Jacket
- Fiber Length: 2 meter
- Fiber Core: Ø 1.2mm
- Temperature Rating: -60 to +350° C
- Includes: Mounting hardware
- Item Weight: 0.29 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
