PANASONIC FT-V23 THRUBEAM FIBER OPTIC CABLE
Starting At: $138.45
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FT-V23
IMS Product Code: 1974927
Packaging: Sold Individually
Description:

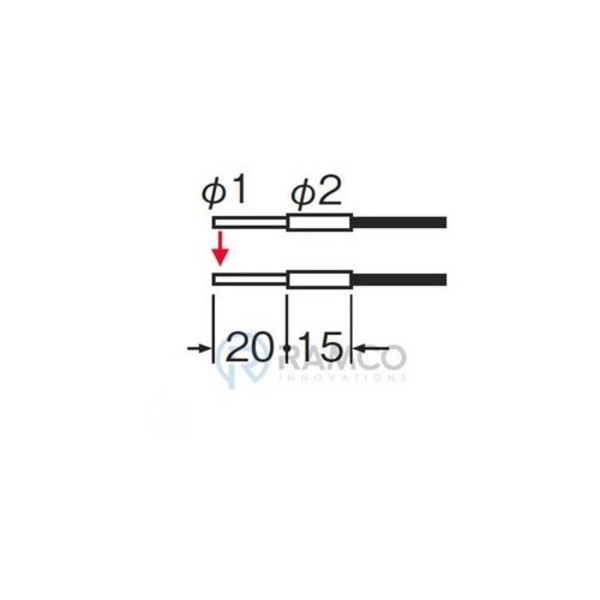

Panasonic FT-V23 Thrubeam Fiber Optic Cable, ø2.0mm Cylinder w/ 20mm w/Side Sensing Non-Bendable Sleeve, 2m R4 High-Flex Cuttable Cable, Side View Miniature Thrubeam, 2 mm Outer Diameter X 15 mm Smooth Cylindrical Sensing Head, 1.0 mm Outer Diameter x 20 mm Non-Bendable Sleeve, 2 M Long Free Cut Cable With R4 High-flex Bending Radius
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Cylindrical Body
- Sensing Mode: Thrubeam
- Key Attributes: Side-View
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: Ø 2.0mm
- Mounting Dimension: Ø 2.0mm x 15mm
- Fiber Cable Feature: Side-view Sensing Type with 15mm Long Sleeve
- Fiber Cable Bend Radius: R4 High-flex
- Cuttable / Non-Cuttable: Cuttable
- Fiber Length: 2 meter
- Fiber Core: Ø 0.75mm
- Temperature Rating: -55 to +80° C
- Includes: FX-AT5 grey attachment w/tips for Ø1.0mm cuttable fibers, and cutter
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
