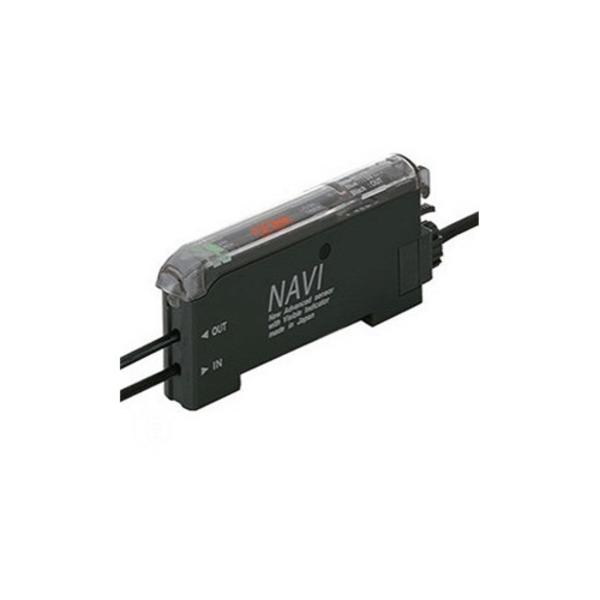

PANASONIC FX-301-F7 DIGITAL FIBER AMPLIFIER WITH RED LED
Starting At: $185.25
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FX-301-F7
IMS Product Code: 1975029
Packaging: Sold Individually
Description:
Panasonic FX-301-F7 Digital Fiber Amplifier with Red LED, Designed Specifically for the FD-F71 Leak Detection Fiber Optic Cable NPN, Designed Specifically For The FD-F71 Leak Detection Fiber Optic Cable Only, NPN Output, Requires Panasonic CN-73-C Quick Connection Cable Sold Separately
Specifications:
- Series: FX-300
- Remove Discontinued: Currrent Model
- Setting Type: PB Teaching
- Setting Type Detail: PB Teach - PB fine adjust
- Display Type: Digital LED Display
- Display Detail: 4-digit Red LED display, LED Status Indicators
- Features: Adoption of a “double coupling lens” that increases emission efficiency to its maximum limits and greatly increases sensing range. MODE NAVI uses six indicators to display the amplifier’s basic operations. The optical communication function allows the data that is currently set to be copied and saved for all amplifiers connected together from the right side.
- Amplifier Type: Stand alone, main, sub
- Output Type: NPN
- Output Details: 1 each NPN
- Connection Type: Cable
- Connection Details: Use CN-70 Series Connector/cable
- Supply Voltage: DC
- Voltage Details: 12 to 24VDC
- Fastest Respose Time: 60µs
- Time Delay Option: Multifunction
- Counter Option: No
- Remote Input Feature: No
- Cross Talk Prevention: Up to 4 units
- Item Weight: 0.18 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
