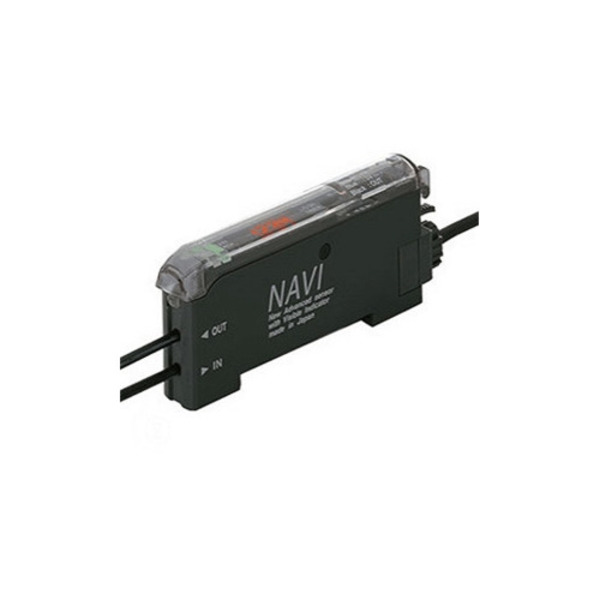

PANASONIC FX-301H DIGITAL FIBER OPTIC AMPLIFIER

MSRP: $225.00
Starting At: $219.38

Quick Overview

Manufactured By: PANASONIC
Manufacturer Part Number: FX-301H
IMS Product Code: 1976778
Packaging: Sold Individually

Description:

Panasonic FX-301H Digital Fiber Optic Amplifier, Standard Type, Infrared LED, NPN, Response Time: 65s or less, 12 to 24 VDC, Din Rail Mount, Accepts All Panasonic And Standard 2.2 mm OD Fiber Terminated Fiber Cables, Push-button Teach And Programming, Many Programmable Features Including Time Delay, Requires Panasonic CN-73-C_ Quick Connection Cable (Sold Separately – See Recommended Products)

Specifications:

  • Series: FX-300
  • Remove Discontinued: Currrent Model
  • Setting Type: PB Teaching
  • Setting Type Detail: PB Teach - PB fine adjust
  • Display Type: Digital LED Display
  • Display Detail: 4-digit Red LED display, LED Status Indicators
  • Features: Adoption of a “double coupling lens” that increases emission efficiency to its maximum limits and greatly increases sensing range. MODE NAVI uses six indicators to display the amplifier’s basic operations. The optical communication function allows the data that is currently set to be copied and saved for all amplifiers connected together from the right side.
  • Amplifier Type: Stand alone, main, sub
  • Output Type: NPN
  • Output Details: 1 each NPN
  • Connection Type: Cable
  • Connection Details: Use CN-70 Series Connector/cable
  • Supply Voltage: DC
  • Voltage Details: 12 to 24VDC
  • Fastest Respose Time: 60µs
  • Time Delay Option: Multifunction
  • Counter Option: No
  • Remote Input Feature: No
  • Cross Talk Prevention: Up to 4 units
  • Item Weight: 0.00 lbs per EA

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 30 Days
