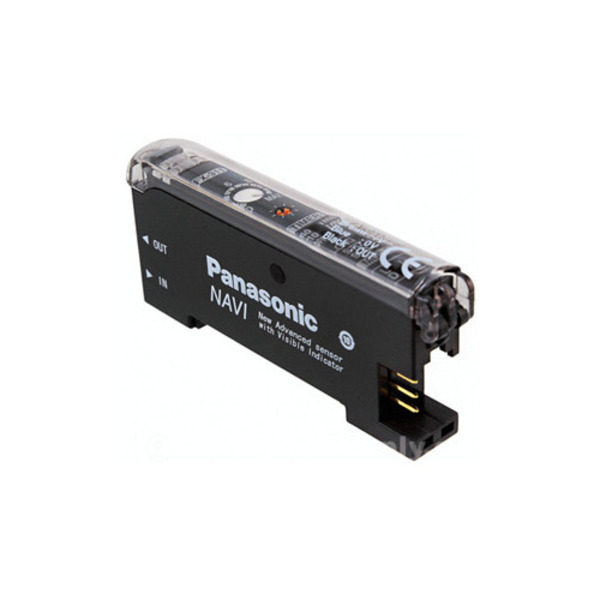

PANASONIC FX-311G MANUALLY ADJUSTABLE FIBER OPTIC AMPLIFIER
Starting At: $175.50
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FX-311G
IMS Product Code: 1976794
Packaging: Sold Individually
Description:
Panasonic FX-311G Manually Adjustable Fiber Optic Amplifier, Green LED, NPN, 12-turn Finger Adjustable Potentiometer Provides Max Sensitivity, Green LED Light Source, 12 to 24 VDC Input, NPN Output, Works with all 2.2 mm OD Plastic Fiber Cables, Requires Panasonic CN-73 Hook-up Cable Which is Sold Separately
Specifications:
- Series: FX-311
- Remove Discontinued: Currrent Model
- Setting Type: Manual Adjustment
- Setting Type Detail: Potentiometer 12-turn
- Display Type: LED Indicators
- Display Detail: LED Status Indicators
- Features: 12-turn potentiometer enables detection of very fine differences. The pointer of indicator has a red backlight, you can confirm the position at a glance. The FX-311 series has a convenient built-in “assist function” which indicates the optimum sensitivity position by flashing rapidly when optimum sensitivity is reached
- Amplifier Type: Stand alone, main, sub
- Output Type: NPN
- Output Details: 1 each NPN
- Connection Type: Cable
- Connection Details: Use CN-70 Series Connector/cable
- Supply Voltage: DC
- Voltage Details: 12 to 24VDC
- Fastest Respose Time: 250µs
- Time Delay Option: 10 or 40 ms Off Delay
- Counter Option: No
- Remote Input Feature: No
- Cross Talk Prevention: Up to 4 units
- Item Weight: 0.00 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
