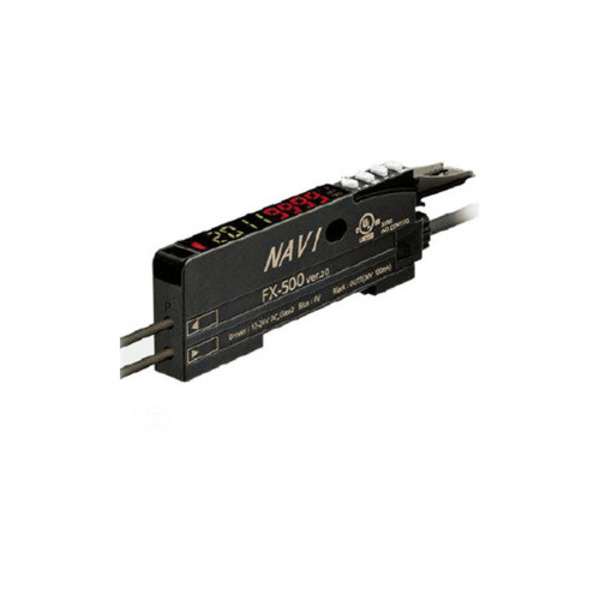

PANASONIC FX-502 FIBER OPTIC AMPLIFIER

MSRP: $196.00
Starting At: $191.10

Quick Overview

Manufactured By: PANASONIC
Manufacturer Part Number: FX-502
IMS Product Code: 1976833
Packaging: Sold Individually

Description:

Panasonic FX-502 Fiber Optic Amplifier, 2 Output Type, NPN, Two Channel Output, 12 to 24 VDC input, Dual NPN Output, Red LED Light Source, Large Digital Display, Push-button Teach, High Functionality And Simple Programming Operation, Works With All 2.2mm OD Plastic Fiber Cables, Requires Panasonic (formerly Sunx) CN74 Hook-up Cable

Specifications:

  • Series: FX-500
  • Remove Discontinued: Currrent Model
  • Setting Type: PB Teaching
  • Setting Type Detail: PB Teach - PB fine adjust
  • Display Type: Digital LED Display
  • Display Detail: Dual 4-digit Red & Green LED display,LED Status Indicators
  • Features: When the FX-500 series is used together with our super quality fiber, the incident light intensity variation among units is decreased to only 1/4 of that of conventional models. By being close to absolute values instead of modified digital values, changes in detection that could not be found in the past can now be monitored. FX-500 with its accurate detection catches fractional differences in light intensity, achieving high precision and solving low-hysteresis applications.
  • Amplifier Type: Stand alone, main, sub
  • Output Type: NPN
  • Output Details: 2 each NPN
  • Connection Type: Cable
  • Connection Details: Use CN-70 Series Connector/cable
  • Supply Voltage: DC
  • Voltage Details: 12 to 24VDC
  • Fastest Respose Time: 25µs
  • Time Delay Option: Multifunction
  • Counter Option: No
  • Remote Input Feature: No
  • Cross Talk Prevention: Up to 12 units (Main/Sub)
  • Protection Rating: IP40
  • Includes: FX-MB1 (amplifier protection seal): 1 set
  • Item Weight: 0.18 lbs per EA

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 5 Days

Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. IMS Supply is not an authorized distributor, reseller or representative of Panasonic. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
