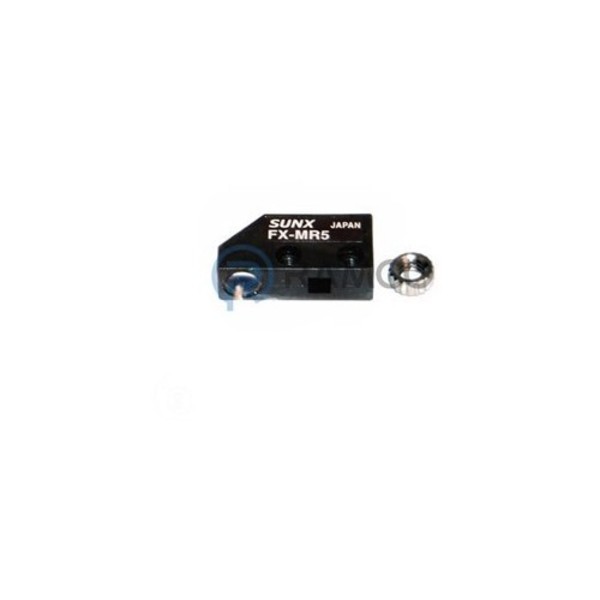

PANASONIC FX-MR5 90 DEGREE ADD-ON LENS FOR DIFFUSE FIBERS
Starting At: $69.23
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FX-MR5
IMS Product Code: 1976886
Packaging: Sold Individually
Description:
Panasonic FX-MR5 90 Degree Add-on Lens For Diffuse Fibers, ø0.5 to 3.0mm Beam Spot, For Fine Spot Detection Of Diffuse Fiber Optic Cables, Converts Beam Into A Side-view Type And Can Be Mounted In A Very Small Space, This Zoom Lens Enables Detection Of Minute Targets With Adjustable Beam Spot Based On Insertion, Beam Spot Size Adjustable From 0.5 mm To 3.0 mm Diameter At Distances Of 13 mm To 30 mm, For Diffuse Fibers With M3 × 0.5 Threaded Tip, Ambient Temperature: –40 To +70 °D (–40 To +158 °F)
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Add-on Lens
- Sensing Mode: Diffuse
- Key Attributes: Side-View
- Mounting Dimension: W6.3 x D10.3 / M4 x 0.7 Internal thread
- Fiber Cable Feature: Works with Fiber Cables / (Spot Diameter) FD-42G(W) / (Ø 0.5mm to Ø 3.0mm)
- Temperature Rating: -40 to +70° C
- Item Weight: 0.04 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
