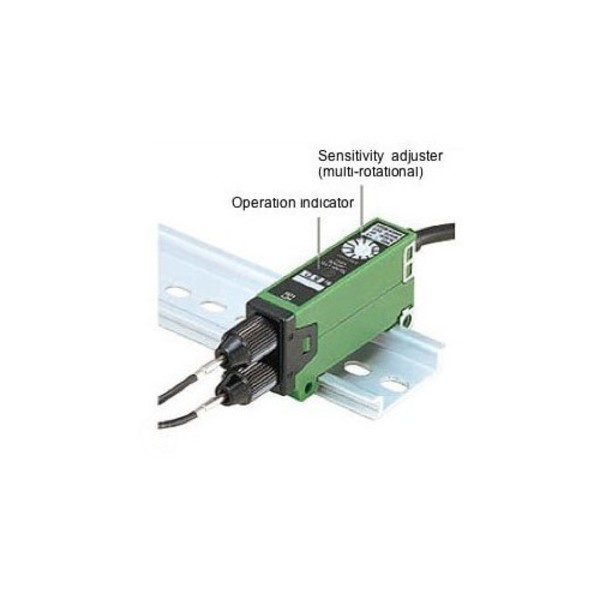

PANASONIC FX2-A3R-LED LED SENSING TYPE FIBER OPTIC AMPLIFIER
Starting At: $523.58
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FX2-A3R-LED
IMS Product Code: 1975010
Packaging: Sold Individually
Description:
Panasonic FX2-A3R-LED LED Sensing Type Fiber Optic Amplifier, 12VDC input, 50 Micro Second Response Time, 3-turn Adjustment Potentiometer With Mechanical Indicator, This Amplifier Does Not Provide A Light Source, Receiving Element: Photodiode (Peak Wavelength: 590 nm), NPN Output Programmable LO-DO, Works With all 2.2 mm OD Plastic Fibers, 2 m Connection Cable
Specifications:
- Series: FX2
- Remove Discontinued: Currrent Model
- Setting Type: Manual Adjustment
- Setting Type Detail: Potentiometer 3-turn
- Display Type: LED Indicators
- Display Detail: LED Status Indicators
- Features: This amplifier does not provide a light source, Receiving element: Photodiode (peak wavelength: 590 nm) 50 micro second response time 3-turn potentiometer with mechanical indicator
- Amplifier Type: Stand alone
- Output Type: NPN
- Output Details: 1 each NPN
- Connection Type: Cable
- Connection Details: 2 Meter Cable
- Supply Voltage: DC
- Voltage Details: 12 to 24VDC
- Fastest Respose Time: 50µs
- Time Delay Option: None
- Counter Option: No
- Remote Input Feature: No
- Cross Talk Prevention: None
- Protection Rating: IP65
- Includes: MS-FX-1 Mounting Bracket and Adjustment Screw Driver
- Item Weight: 0.28 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
