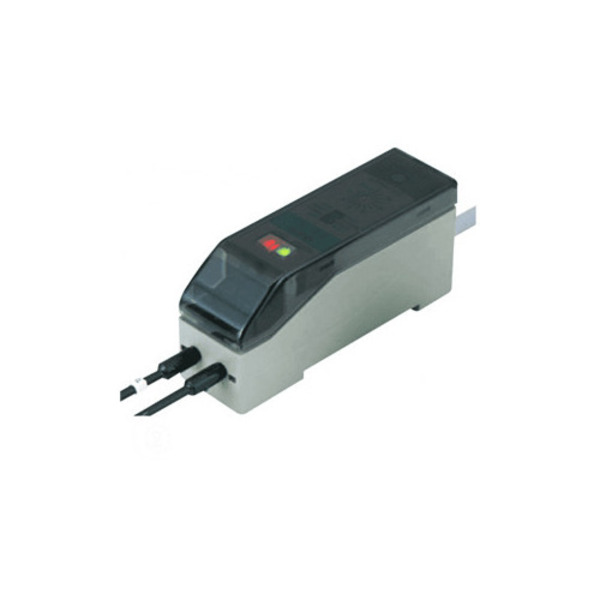

PANASONIC FZ-11 RGB COLOR DETECTION FIBER OPTIC AMPLIFIER

MSRP: $785.00
Starting At: $765.38

Quick Overview

Manufactured By: PANASONIC
Manufacturer Part Number: FZ-11
IMS Product Code: 1976898
Packaging: Sold Individually

Description:

Panasonic FZ-11 RGB Color Detection Fiber Optic Amplifier, NPN, Uses Red, Green, And Blue LED Light For Reliable Detection Of All Colors, Single Button Teaching Simplifies Color Sensing, For Use With FD-L Type Fibers And Standard Fibers, 12 To 24 VDC Input NPN Output, 2m Cable For Connection

Specifications:

  • Series: FZ-10
  • Detection Type: Color & Color Mark Sensing
  • Light Source: RGB LED
  • Sensor Type: Fiber Optic
  • Features: Just pressing a button recognizes the reference color you want to detect as the criterion even with Auto-Teaching. 16-step tolerance adjuster determines acceptable tolerance of taught color/mark. Precise discrimination between white and yellow surfaces. Multiple fibers provide various spot sizes and distances.
  • Sensitivity: PB Teach
  • Teaching: Manual and Auto-teaching: 1-point teach
  • Display Type: LED Indicators
  • Display Details: Power (green) Output (red)
  • Beam Spot Optimum Distance: Fiber Dependant
  • Optimum Distance: Fiber Dependant
  • Sensing: Fiber Dependant
  • Includes: Yes
  • Timing: OFF-delay (40ms) selectable
  • Number of Storage: 1
  • Control Output: NPN
  • Output Details: Light-ON / Dark-ON Selectable
  • Response Time: Color mode: 1ms
  • Supply Voltage: DC
  • Supply Voltage Details: 12 to 24VDC
  • Material: ABS housing, polycarbonate cover
  • Temperature: -10 to +55° C
  • Connection Details: Cable 2 meter
  • Item Weight: 0.20 lbs per EA

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 30 Days
