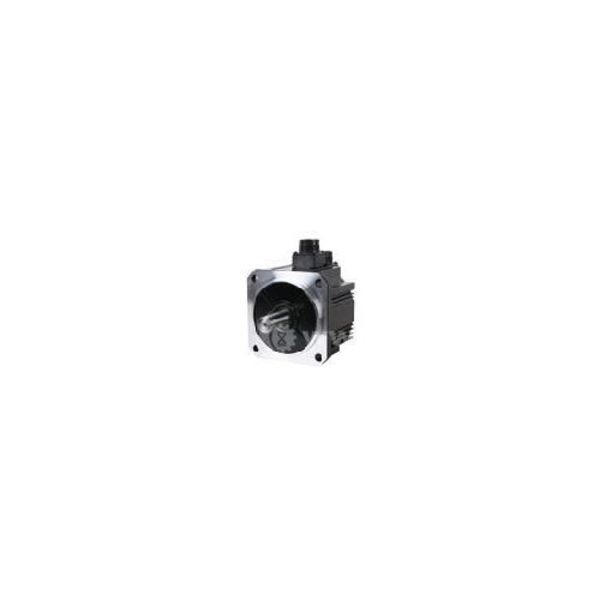

PANASONIC MDMF152L1D5 AC SERVO MOTOR- (A6 SERIES - MDM)
Starting At: $1,660.43
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: MDMF152L1D5
IMS Product Code: 1974842
Packaging: Sold Individually
Description:
Panasonic AC Servo Motor- (A6 series - MDM) - Supply voltage 200Vac - Rated power 1.5kW - Rotational speed (Rated) 2000rpm - with 23bit Absolute rotary encoder - with Round shaft - with Oil seals - with (Encoder terminal) JN2 connector
- Functions:
Round shaft
Brake
Oil seals - Net Width (mm): (Flange) 130mm
- Current consumption: (Brake excitation) 0.711-0.869A
- Connection type: (Encoder terminal) JN2 connector
- Mechanical withstand:
(During assembly; Radial load; P-direction) 980N
(During assembly; Thrust load; A-direction) 588N
(During assembly; Thrust load; B-direction) 686N
(During operation; Radial load; P-direction) 490N
(During operation;Thrust load; A; B-direction) 196N - Operating torque:
(Rated torque) 7.16N.m
(Continuous stall torque) 7.52N.m
(Momentary max Peak torque) 21.5N.m
(Brake static friction) 13.7N.m - Moment of inertia: 0.0104kg.m²
- Net weight: 7.2kg
- Rotational speed:
(Rated) 2000rpm
(Max) 3000rpm
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
