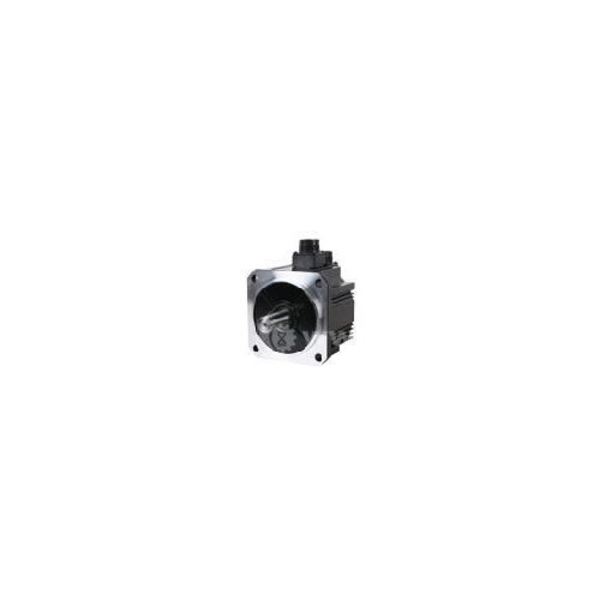

PANASONIC MDMF502L1D5 AC SERVO MOTOR- (A6 SERIES - MDM)
Starting At: $2,476.50
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: MDMF502L1D5
IMS Product Code: 1975183
Packaging: Sold Individually
Description:
Panasonic AC Servo Motor- (A6 series - MDM) - Supply voltage 200Vac - Rated power 5kW - Rotational speed (Rated) 2000rpm - with 23bit Absolute rotary encoder - with Round shaft - with Oil seals - with (Encoder terminal) JN2 connector
- Functions:
Round shaft
Brake
Oil seals - Net Width (mm): (Flange) 176mm
- Current consumption: (Brake excitation) 1.161-1.419A
- Connection type: (Encoder terminal) JN2 connector
- Mechanical withstand:
(During assembly; Radial load; P-direction) 1666N
(During assembly; Thrust load; A-direction) 784N
(During assembly; Thrust load; B-direction) 980N
(During operation; Radial load; P-direction) 784N
(During operation;Thrust load; A; B-direction) 343N - Operating torque:
(Rated torque) 23.9N.m
(Continuous stall torque) 26.3N.m
(Momentary max Peak torque) 71.6N.m
(Brake static friction) 44.1N.m - Moment of inertia: 0.063kg.m²
- Net weight: 19kg
- Rotational speed:
(Rated) 2000rpm
(Max) 3000rpm
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
