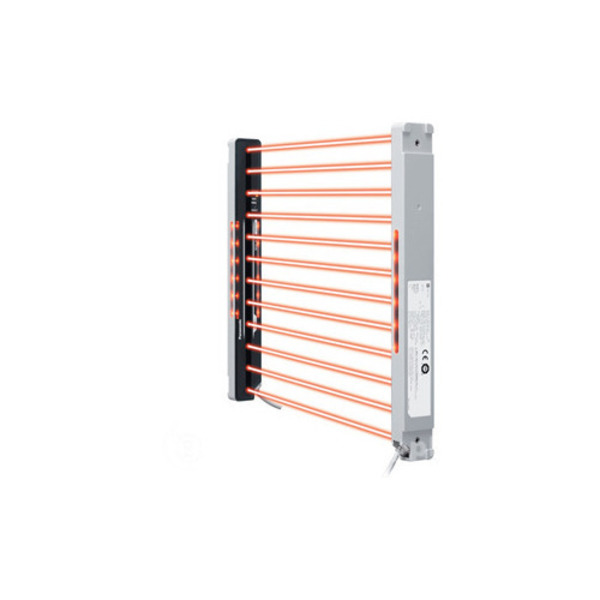

PANASONIC SF2C-H32-N ULTRA-SLIM TYPE 2 LIGHT CURTAIN SENSOR

MSRP: $1,495.00
Starting At: $1,457.63

Quick Overview

Manufactured By: PANASONIC
Manufacturer Part Number: SF2C-H32-N
IMS Product Code: 1972258
Packaging: Sold Individually

Description:

Panasonic SF2C-H32-N Ultra-Slim Type 2 Light Curtain Sensor, 20mm Beam Pitch Hand Protection 640mm Height PNP Output, 0.1 to 3 Meter Operation Range, 25mm Minimum Detectable Object, 24 VDC NPN, 640mm Height Protection, 3 Meter Integral Connection Cable

Specifications:

  • Series: SF2C
  • Light Curtain Type & Style: Type 2-Ultra-Slim
  • Protection Type: Hand
  • Number of Beams: 32 beam channels
  • Beam Pitch: 20mm
  • Minimum Detectable Object: Ø 25mm
  • Protection Height: 640mm
  • Operation Range: 0.1 to 3 meters
  • Features: Only 13.2mm deep! Large bright built-in multi-purpose LED indicators
  • Light Source: Infrared LED
  • Effective Aperture: ±5° or less
  • Safety Rated Control Outputs: NPN x 1
  • Safety Control Output Response Time: OFF response: 20 ms or less, ON response: 80 to 100 ms
  • Voltage Details: 24VDC ±20% Ripple P-P 10% or less
  • Temperature: –10 to +55 °C
  • Protection: IP65 (IP67 IEC)
  • Construction: Polycarbonate alloy enclosure and sensing surface
  • Connection Type: Cabled
  • Connection Type Detail: Integral Cable 3 meter
  • Item Weight: 1.44 lbs per EA

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 30 Days

Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. IMS Supply is not an authorized distributor, reseller or representative of Panasonic. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
