PARKER 06F23C6140ACF4C01 2-WAY SOLENOID VALVE
Quick Overview
Manufactured By: PARKER
Manufacturer Part Number: 06F23C6140ACF4C01
IMS Product Code: 2148827
Packaging: Sold Individually
Description:

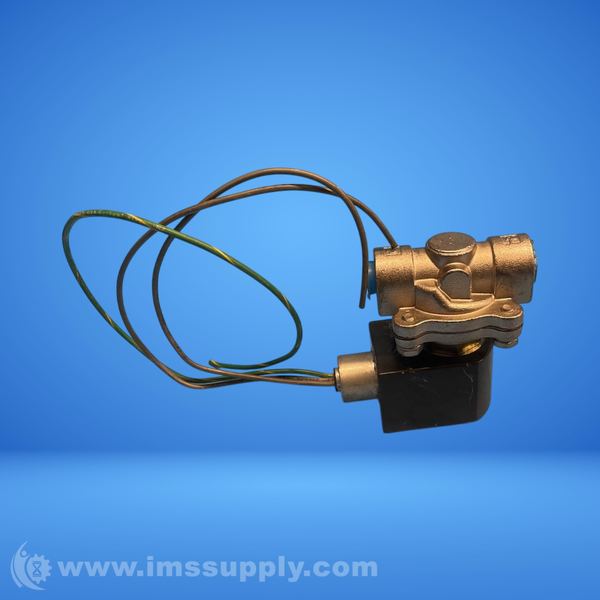

Parker 06F23C6140ACF4C01 2-Way Solenoid Valve
3/8 in., 24/60V, NBR Seals, 316 Stainless Casting
Specifications
- Body Material: 316 Stainless Steel
- Seal Material: NBR
- Port Type: NPT
- Main Flow Coefficient: 3.0
- Specifications Met: UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC
- Maximum Pressure Differential: 150.0
- Insulation Class: Class F
- Port Size: 3/8
- Coil Type: 1/2" NPT Conduit w/ Leads (Incl. Ground Lead)
- Ingress Protection Rating: NEMA 4, 4X
- Function: 2-Way
- Maximum Fluid Temperature: 180.0
- Power Consumption: 11.0
- Orifice Size: 5/8
- Input Voltage: 24/60
- Maximum Ambient Temperature: 130.0
- Minimum Pressure Differential: 0.0
- Media: General Purpose
- Valve Configuration: Normally Closed
- Actuation Type: Direct Lift
