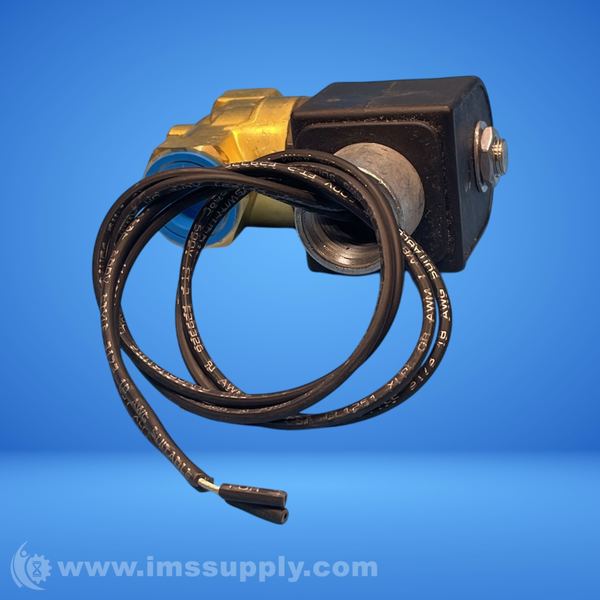

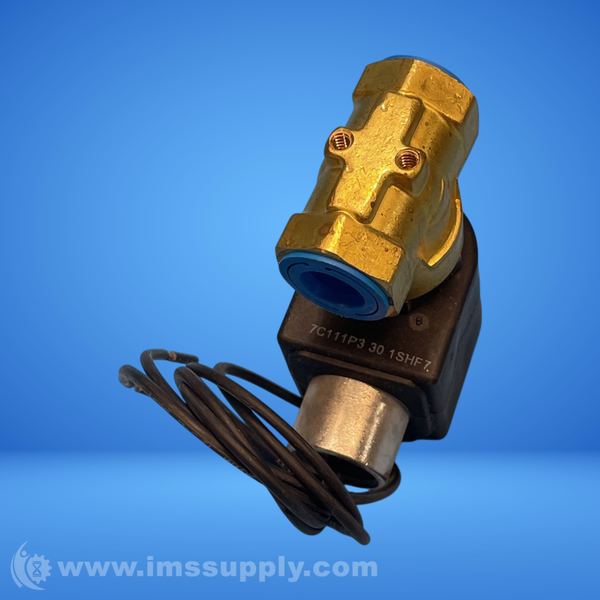

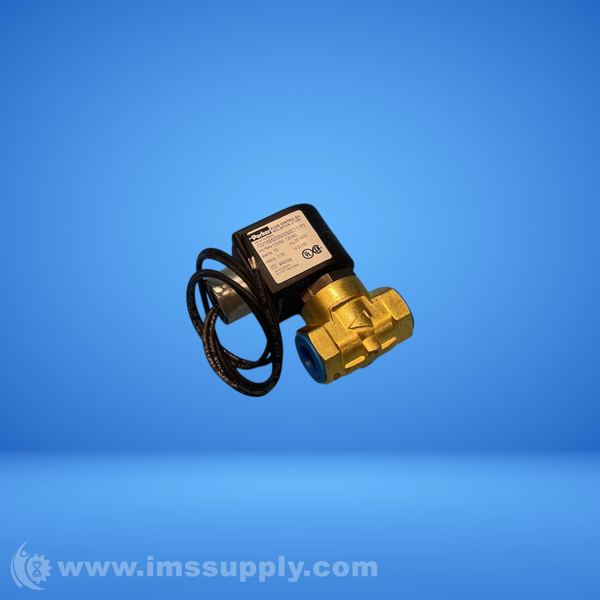

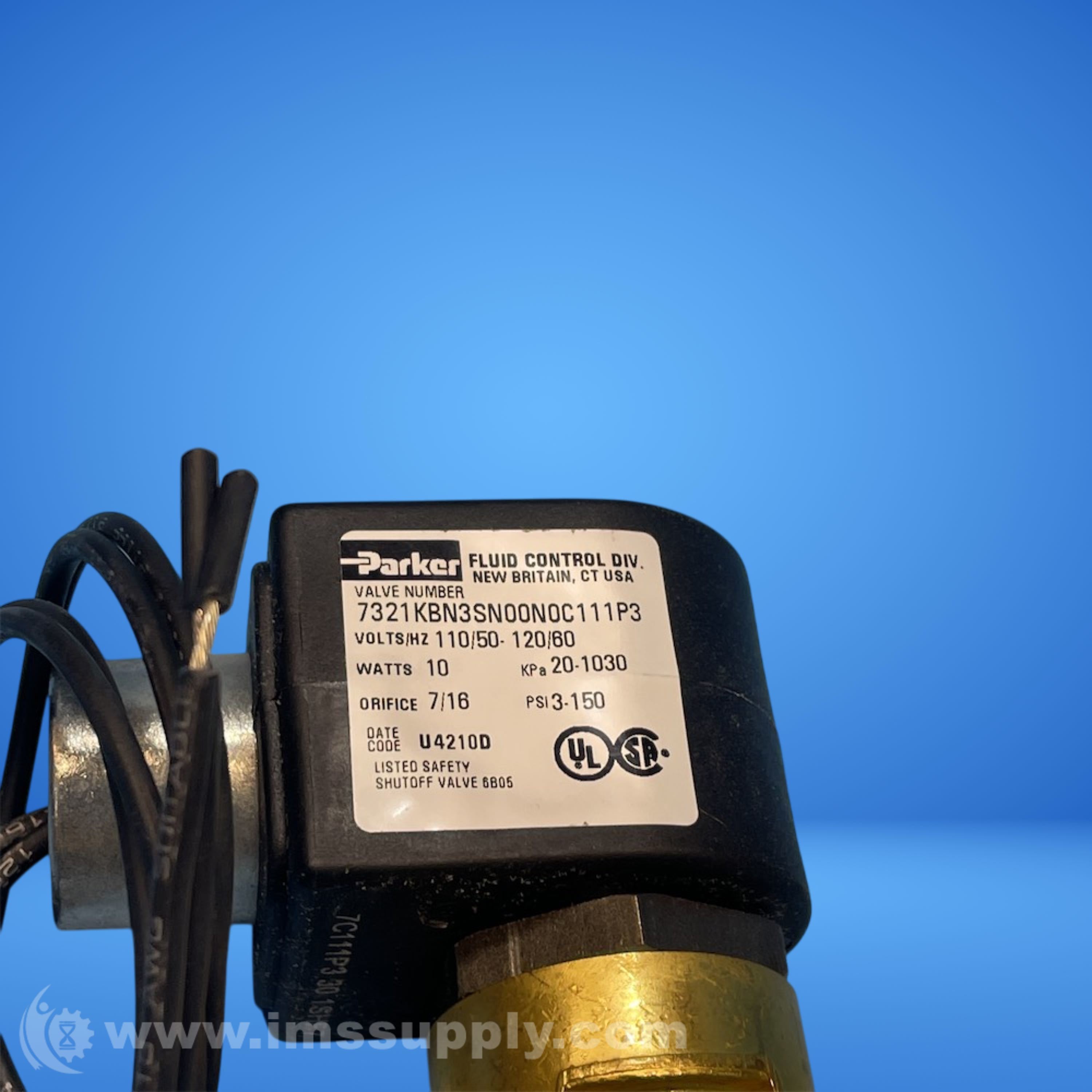

PARKER 7321KBN3SN00N0C111P3 2-WAY BRASS SOLENOID VALVE
Quick Overview
Manufactured By: PARKER
Manufacturer Part Number: 7321KBN3SN00N0C111P3
IMS Product Code: 2120058
Packaging: Sold Individually
Description:
Parker 7321KBN3SN00N0C111P3 2-Way Brass Solenoid Valve
Parker 2-Way Normally Closed, 3/8" NPT Solenoid Valves provide operating pressures up to 600 PSI and flow factors up to 5.5 CV's. They offer multiple body materials, mounting positions and coil options for all general purpose flow control applications.
Specifications
- Orifice 1 Size: 7/16 inch
- Body Material: Brass
- Number of Ports: 2
- Valve Type: 2-Way
- Function: Normally Closed (NC)
- Port Size: 3/8 inch
- Power Consumption: 10 W (AC)
- Actuation Type: Mechanical
- Coil Type: 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
- Maximum Fluid Temperature: 185 °F
- Coil Specifications Met: NEMA 4X
- Maximum Pressure Differential: 150 psi (AC)
- Division: Fluid Control Division
- Input Voltage: 110/50-120/60
- Seal Material: NBR
- Port Type: NPT
- Minimum Pressure Differential: 0 psi
- Media: General Purpose for Air
- Minimum Fluid Temperature: 0 °F
- Product Series: 7000 Series
- Flow Coefficient 1: 2.5 Cv
- Weight: 2 LB
- Valve Operation: Solenoid
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
