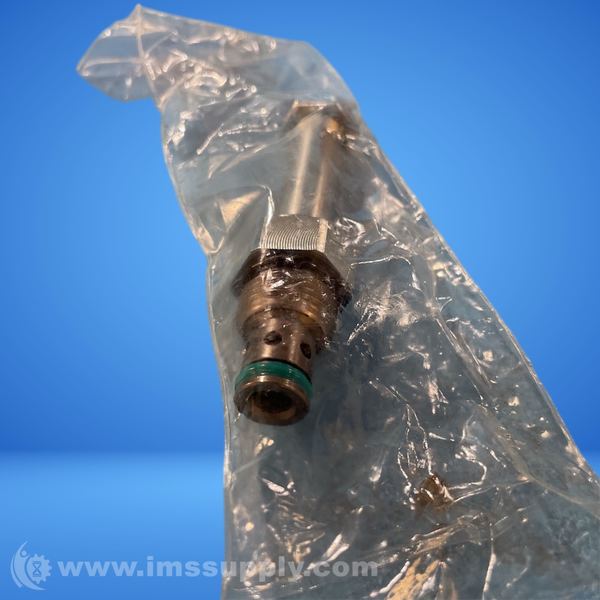

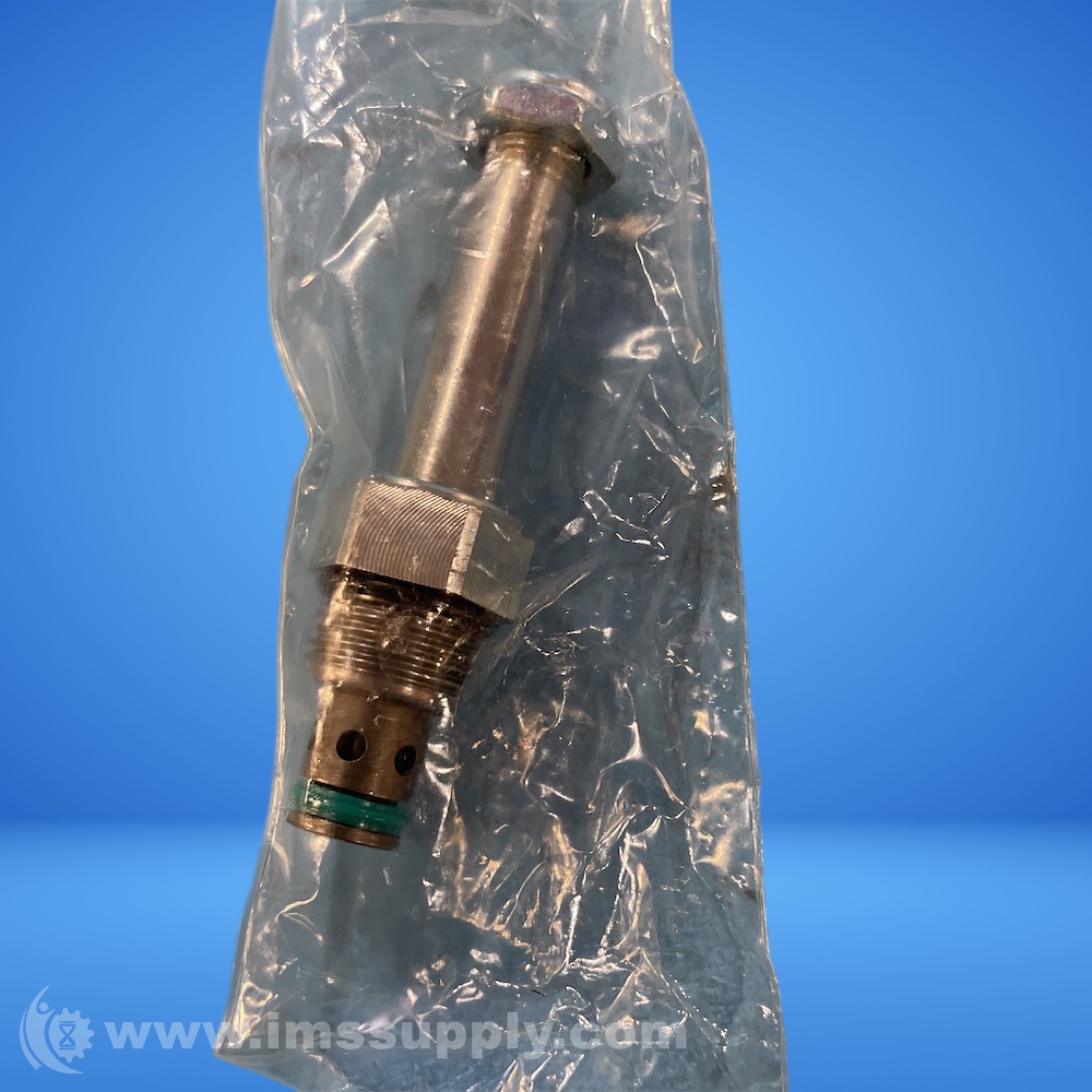

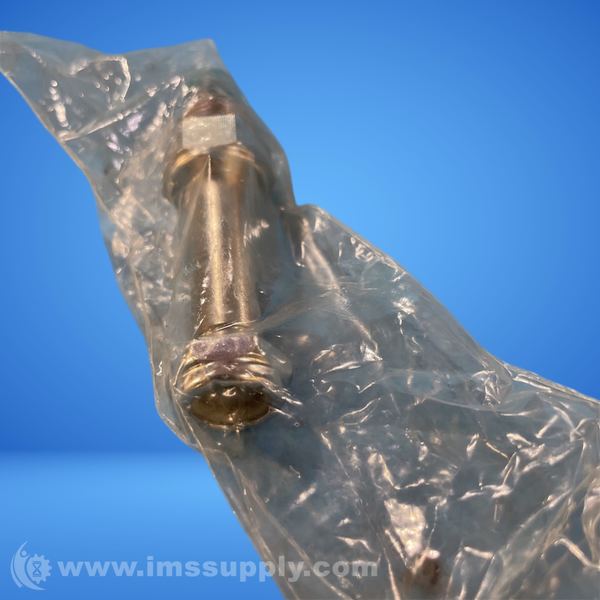

PARKER DSH081CR 2-WAY SOLENOID VALVE
Quick Overview
Manufactured By: PARKER
Manufacturer Part Number: DSH081CR
IMS Product Code: 2162048
Packaging: Sold Individually
Description:
Parker DSH081CR 2-Way Solenoid Valve
Parker's 2-way poppet style solenoid valves feature a proven design that ensures very low leakage when flow is blocked in one direction and minimized pressure drop in the free flow position. These valves can operate with hydraulic system flows as high as 260 lpm and pressures up to 350 bar with normally-open or normally closed configurations available.
Specifications
- Actuation Type: Electrical
- Configuration: Normally Closed
- Flow Rate: 8 GAL/MIN, 30 L/MIN
- Leak Rate: 5 drops/min
- Maximum Inlet Pressure Rating: 5000 PSI, 350 BAR
- Maximum Operating Pressure: 5000 psi, 350 bar
- Mounting Type: Screw in cartridge valve
- Operation Type: Solenoid operated
- Seal Material: D-Ring (Standard)
- Valve Material: All parts steel. All operating parts hardened steel
- Flow Direction: Side to Nose (2-1)
- Free Reverse Flow: Yes
- Cavity Size: C08-2
- Function: 2-way
- For Fluid Type: Mineral-based or synthetic hydraulic fluids
- Maximum Kinematic Viscosity: 45-2000 SSU (6 to 420 cSt)
- Filter Efficiency Rating: ISO 4406 18/16/13, SAE Class 4
- Installation Torque: 32-36 lb-ft, 43-49 Nm
- Coil Nut Tightening Torque: 5-7 lb-ft, 7-10 Nm
- Operating Temperature: -35 to +200 F, -37 to +93 C
- Coil Type: 1/2" Super Coil
- Input Voltage: 85% of rated voltage at 72F (20C) min
- Response Time: 50 ms
- Weight: 0.25 lb, 0.11 kg
