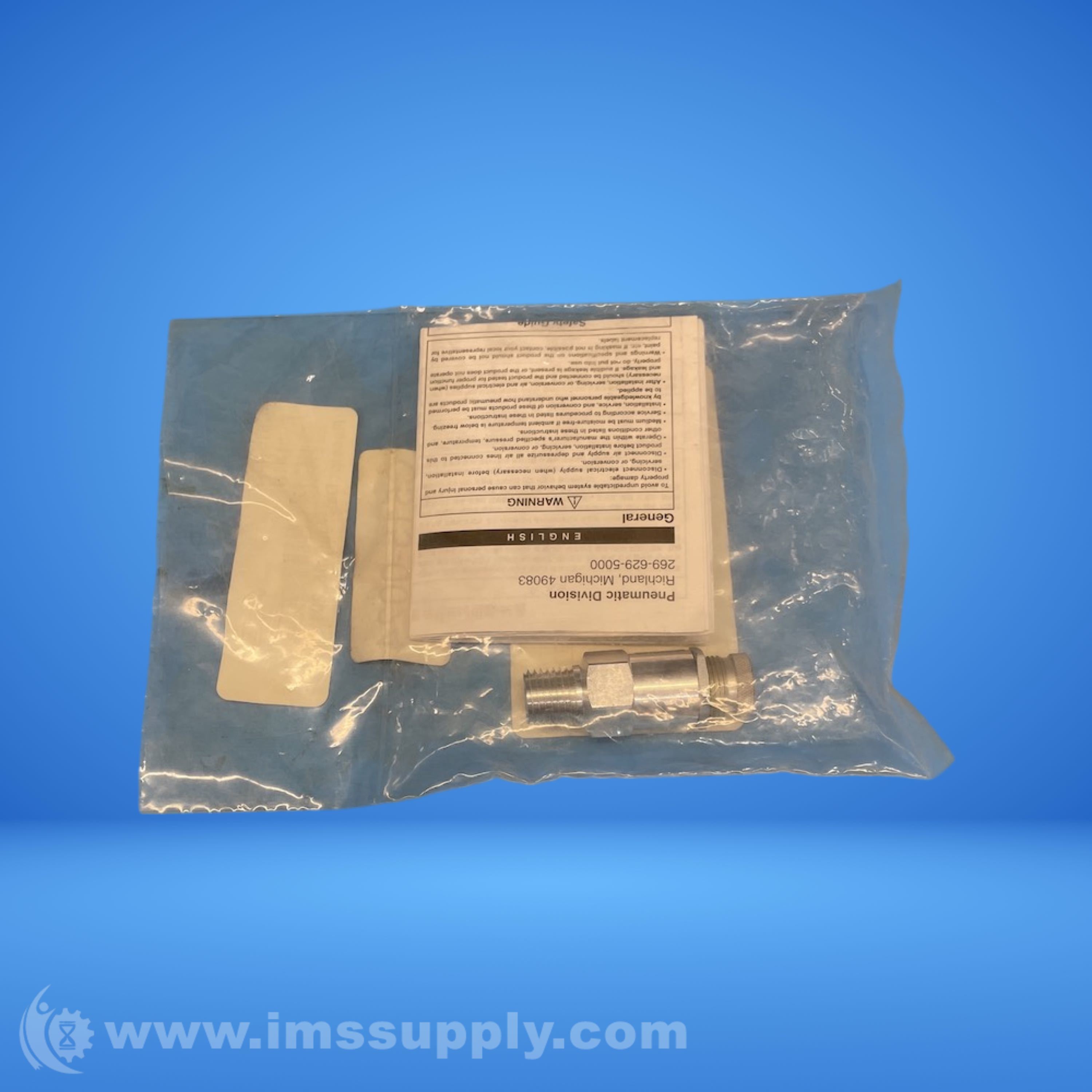

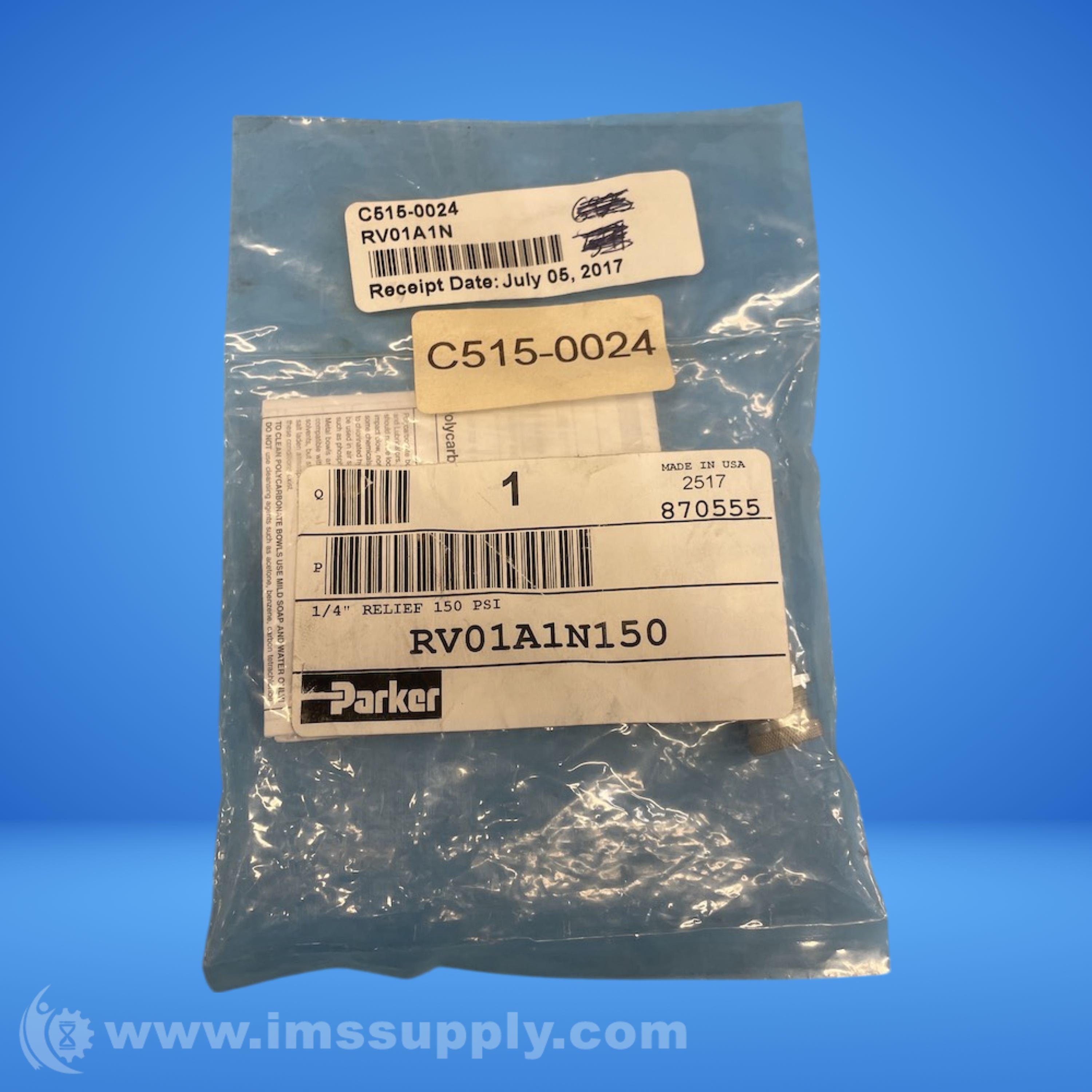

PARKER RV01A1N150 RELIEF VALVE
Quick Overview
Manufactured By: PARKER
Manufacturer Part Number: RV01A1N150
IMS Product Code: 2132110
Packaging: Sold Individually
Description:
Parker RV01A1N150 Relief Valve
Compact relief valve that relieves excess pressure to protect pneumatic circuits or systems.
Specifications
- Seal Material: Buna
- Pressure Relief Setting: 150 psig, 10.5 barg
- Maximum Inlet Pressure Rating: 300 psig, 20.7 barg
- Body Material: Aluminum
- Port Size: 1/4"
- Pressure Range: 105-150 psig
- Adjustment Mechanism: Knurled Knob
- Adjustment Screw Material: Steel Locking Nut and Spring
- Port Type: NPT
- Operating Temperature: +32 to +200 degrees F
