PATLITE LR10-02WJNW SIGNAL LIGHT BASE
Quick Overview
Manufactured By: PATLITE
Manufacturer Part Number: LR10-02WJNW
IMS Product Code: 2123432
Packaging: Sold Individually
Description:

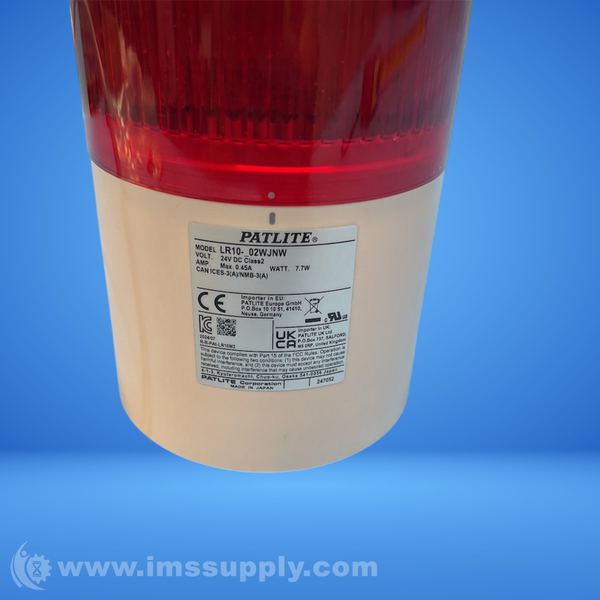

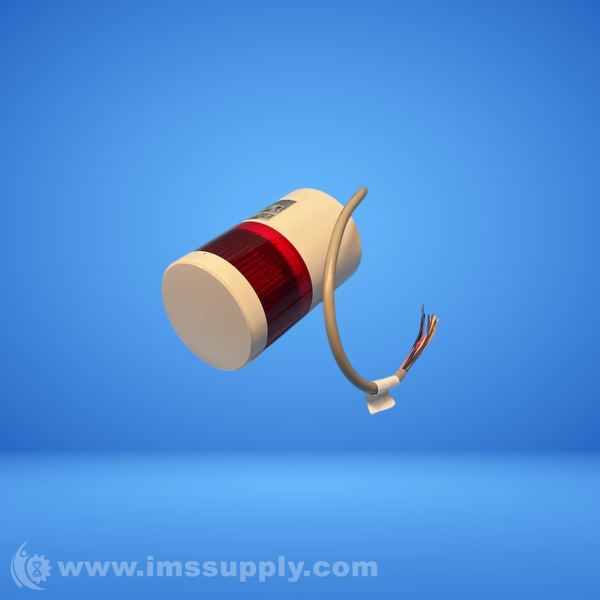

Patlite LR10-02WJNW Signal Light Base
100mm diameter 24V DC direct mount base unit for LR10 series stack light. Off-white color, body only without LED modules.
Specifications
- Diameter: 100mm
- Voltage: 24V DC
- Mounting Type: Direct Mount
- Color: Off-White
- IP Rating: IP66 and IP69K
- Weight: 0.635 Kg
- Operating Ambient Temperature: -20? - +50?
- Operating Humidity Range: 90% RH or less, no condensation
- Insulation Resistance: More than 1MO at DC500V between the power input lead and chassis
- Withstand Voltage: AC 500V for 1 minute between terminals and chassis without breaking insulation
- Conformity Standards: UL 508, CSA-C22.2 No.14, FCC Part 15 Subpart B Class A, RoHS Directive (EN 50581), EMC Directive (EN 61000-6-4, EN 61000-6-2)
New - Missing Box (Special):

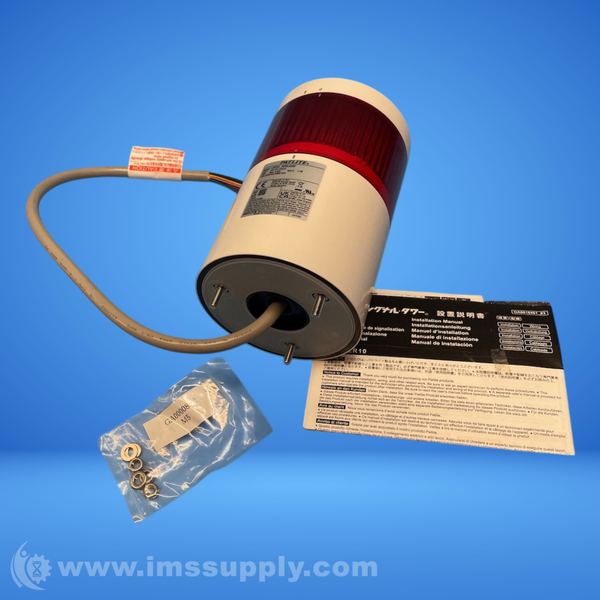

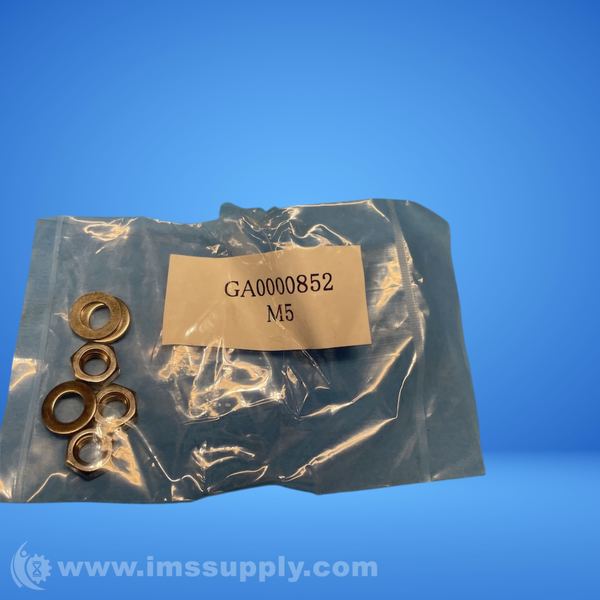

Comes with manual, and hardware.
