PBC LINEAR HVBEA-455 ADJUSTABLE BEARING
Quick Overview
Manufactured By: PBC LINEAR
Manufacturer Part Number: HVBEA-455
IMS Product Code: 1857405
Packaging: Sold Individually
Description:

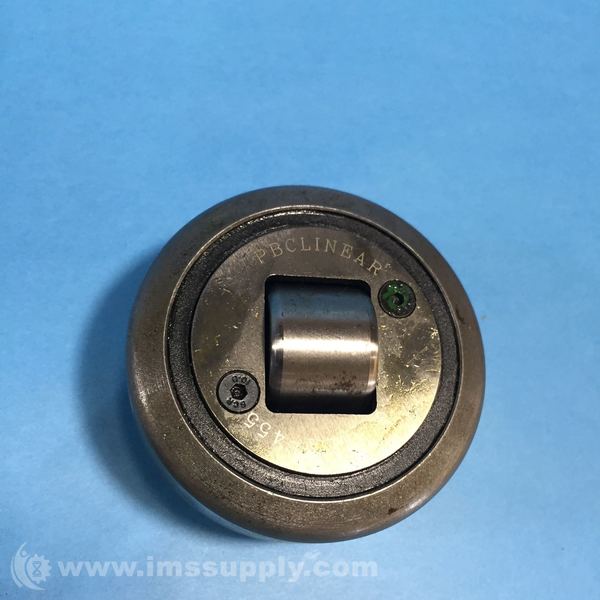

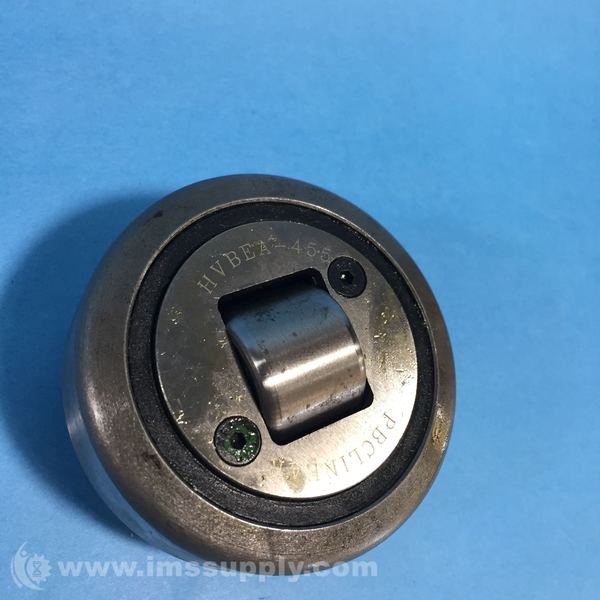

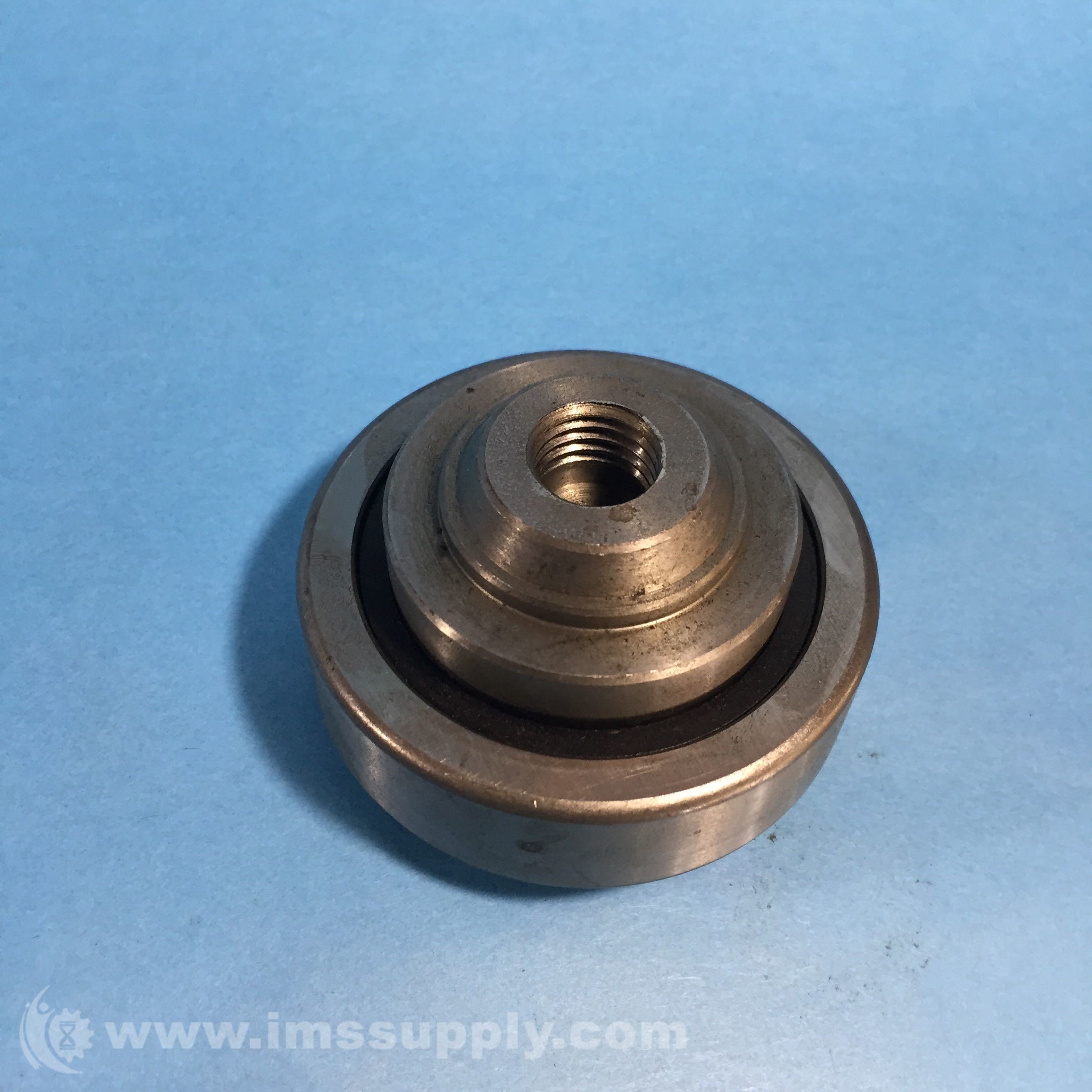

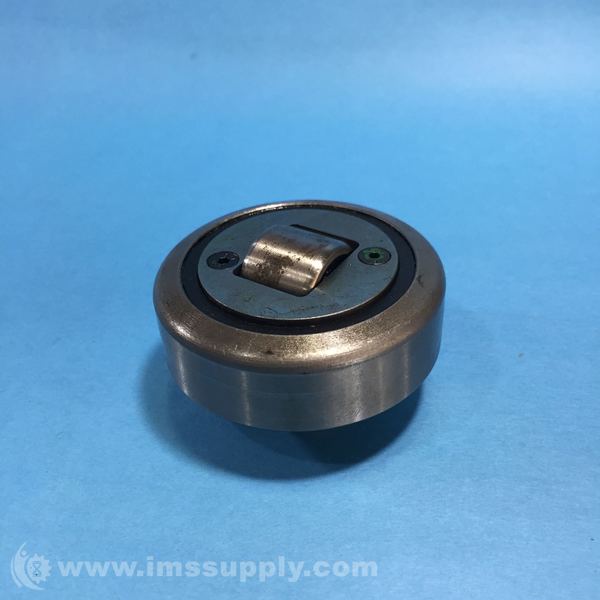

PBC Linear HVBEA-455 Adjustable Bearing
Eccentric adjustable roller bearing with 70.1mm diameter, part of Hevi-Rail Linear Guide system, handling substantial axial and radial loads. Compatible with HVR-1 U-Type or HVRI-07 I-Type rails, made from S450J2 MOD carbon steel.
Specifications
- Radial Maximum Static Load: 12.4 kN/1.39 US Ton-Force
- Axial Maximum Static Load: 3.87 kN/0.43 US Ton-Force
- Operating Temperature: -30°C to 120°C (-22°F to 248°F)
- Weight: 1.75 lbs
- Width: 1.73 in
- Height: 2.76 in
- Inner Diameter: 35.00 MM
- Outer Diameter: 70.10 MM
- Width: 44.00 MM
- Lubrication: Yes
- Type: Hevi-Rail Adjustable Bearing
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships on Monday, March 16, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
