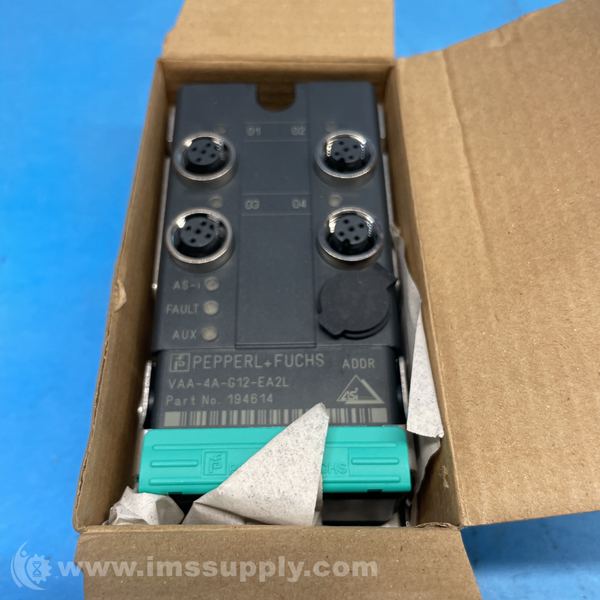

PEPPERL+FUCHS 194614 AS-INTERFACE ACTUATOR MODULE
Quick Overview
Manufactured By: PEPPERL & FUCHS
Manufacturer Part Number: 194614
IMS Product Code: 2135746
Packaging: Sold Individually
Description:
Pepperl+Fuchs 194614 AS-Interface Actuator Module
AS-Interface actuator module with 4 electronic outputs, PNP, IP67 protection, and auxiliary voltage supply.
Specifications
- Slave type: Standard slave
- AS-Interface specification: V3.0
- Auxiliary voltage (output): 24 V DC ± 15 % PELV
- Rated operating voltage: 26.5 ... 31.6 V from AS-Interface
- Number/Type: 4 electronic outputs, PNP
- Supply: from external auxiliary voltage UAUX
- Current: 2 A per output, 6 A total (TB = 40°C), 4 A total (TB = 70°C)
- Voltage: = (UAUX - 0.5 V)
- Degree of protection: IP67
- Connection: Cable piercing method, flat cable yellow/flat cable black, inputs/outputs: M12 round connector
- Material: Housing: PBT
- Mass: 200 g
- Ambient temperature: -25 ... 70°C (-13 ... 158°F)
- Storage temperature: -25 ... 85°C (-13 ... 185°F)
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 3 In Stock
Ships today if ordered in the next 3 hours and 56 minutes.
