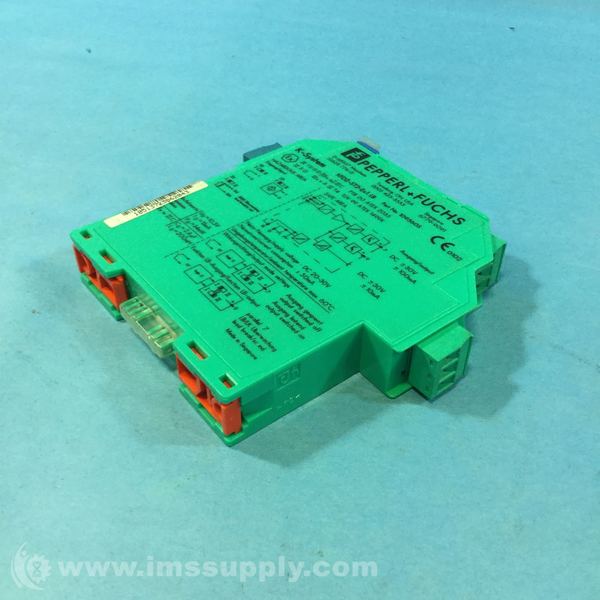

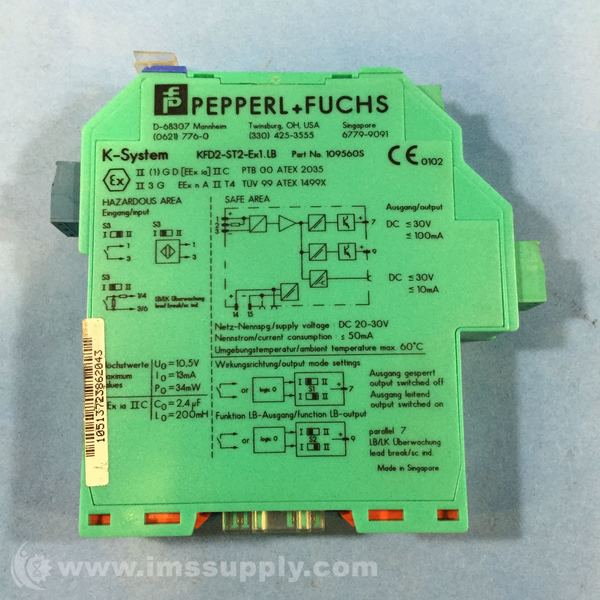

PEPPERL & FUCHS KFD2-ST2-EX1.LB SWITCH AMPLIFIER, 24VDC

Call For Quote

Quick Overview

Manufactured By: PEPPERL & FUCHS
Manufacturer Part Number: KFD2-ST2-EX1.LB
IMS Product Code: 1803924
Packaging: Sold Individually

Description:

Pepperl & Fuchs KFD2-ST2-EX1.LB Switch Amplifier, 24VDC

Specifications:

  • Signal type: Digital Input
  • Functional safety related parameters: Safety Integrity Level (SIL): SIL 2
  • Connection: Power Rail or terminals 14+, 15-
  • Rated voltage: 20 ... 30 V DC
  • Ripple: ≤ 10 %
  • Rated current: ≤ 50 mA
  • Input: Connection side: field side
  • Connection: Terminals 1+, 2+, 3-
  • Rated values: acc. to EN 60947-5-6 (NAMUR), see system description for electrical data
  • Open circuit voltage/short-circuit current: approx. 8 V DC / approx. 8 mA
  • Switching point/switching hysteresis: 1.2 ... 2.1 mA / approx. 0.2 mA
  • Line fault detection: breakage I ≤ 0.1 mA , short-circuit I > 6 mA
  • Connection side: control side
  • Connection: output I: terminals 7+ ; output II: terminals 9+
  • Signal level: 1-signal: (L+) - 3.5 V (100 mA, short-circuit protected)
  • 0-signal: switched off (off-state current ≤ 10 µA)
  • Output I: signal , electronic output, active
  • Output II: signal or error message , electronic output, active
  • Collective error message: Power Rail
  • Switching frequency: ≤ 5 kHz

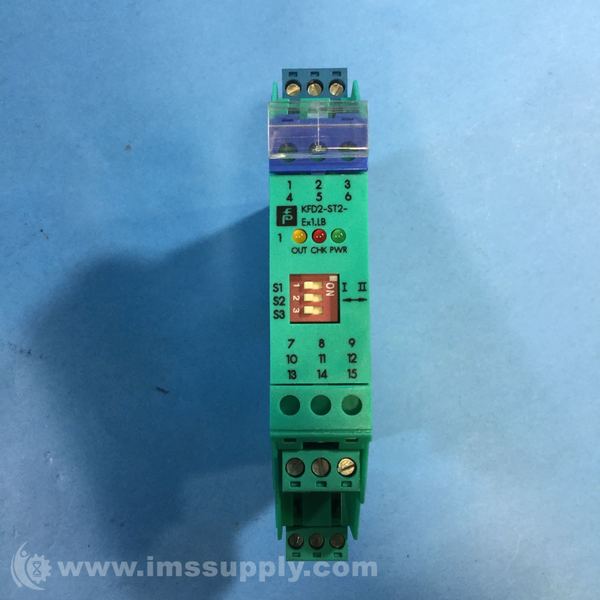

  • Display elements: LEDs
  • Control elements: DIP-switch
  • Configuration: via DIP switches
  • Labeling: space for labeling at the front
