PFANNENBERG BR50-BC BASE AND END MODULE
Quick Overview
Manufactured By: PFANNENBERG
Manufacturer Part Number: BR50-BC
IMS Product Code: 2150790
Packaging: Sold Individually
Description:

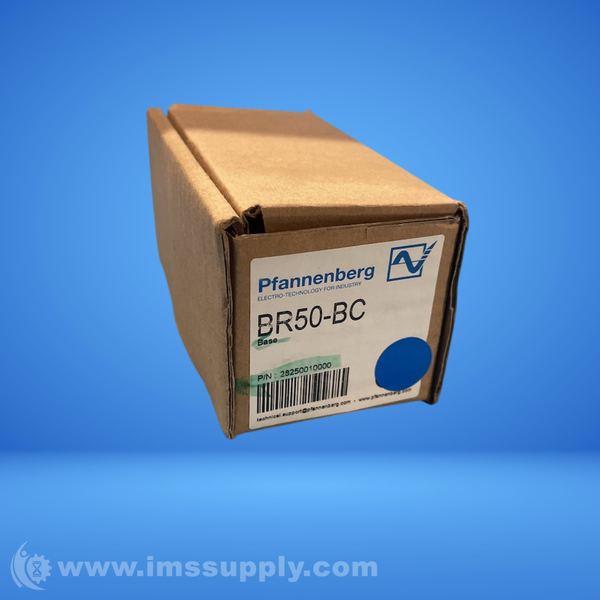

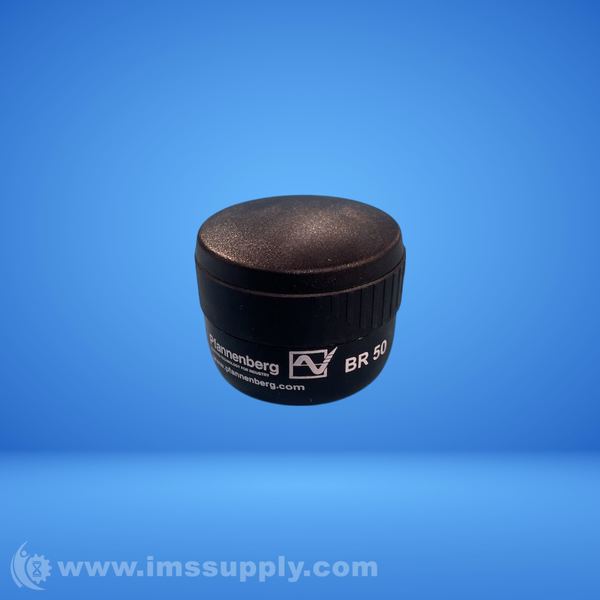

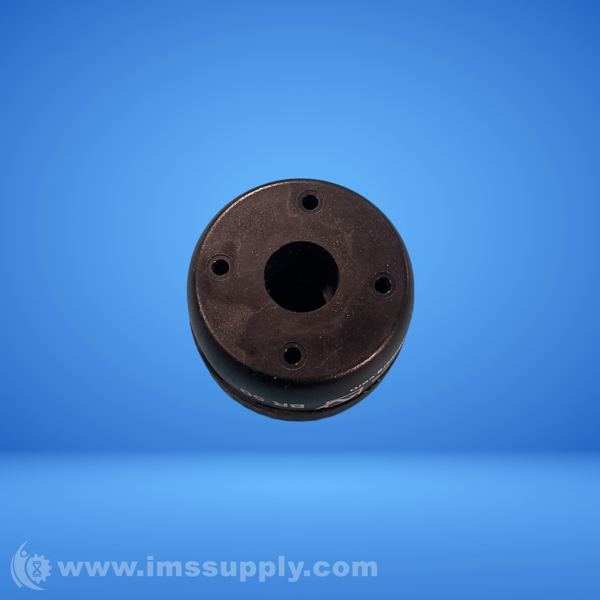

Pfannenberg BR50-BC Base and End Module
Base and end module for BR50 series stack light, designed for industrial signaling applications. Features M12 connection, AC/DC compatibility, and IP54 protection. Rated for 12/24V DC/AC operation with operating temperature range -25 to +50 degrees C.
Specifications
- type of current: AC/DC
- rated voltage (DC): 12, 24 V DC
- rated voltage (AC): 12, 24 V AC
- voltage range (DC): 8.0-36 V DC
- voltage range (AC): 8.0-36 V AC
- operating temperature: -25 to +50 degrees C
- ip protection system: 54
- housing material: ABS and stainless steel adapter
- max. relative humidity: 90%
- m12-connection: yes
- dimensions (H | W | D): 76 mm | 57 mm | 57 mm
- weight: 0.14 kg

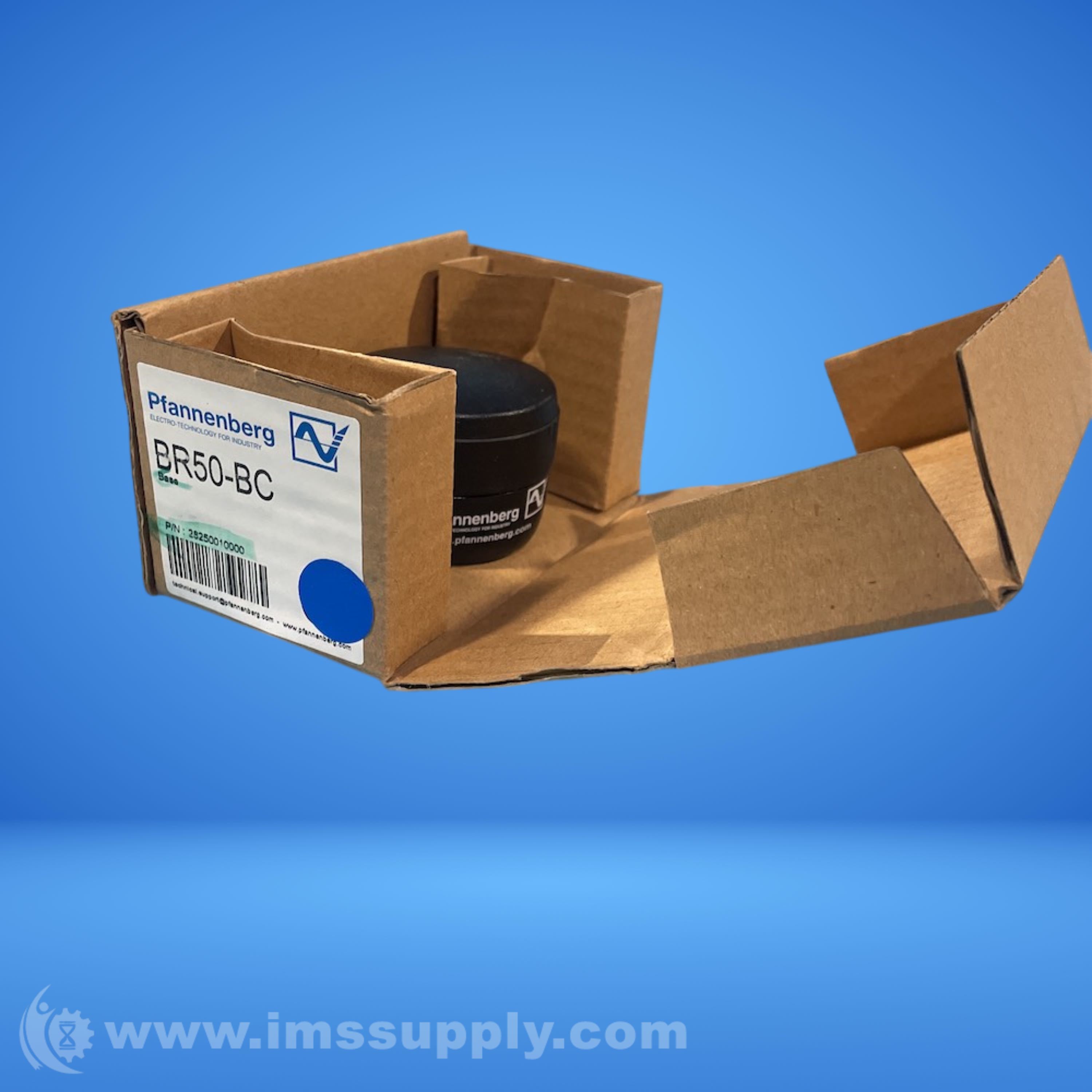

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships on Monday, December 15, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
