PHOENIX CONTACT 1405896 SENSOR/ACTUATOR CABLE
Quick Overview
Manufactured By: PHOENIX CONTACT
Manufacturer Part Number: 1405896
IMS Product Code: 2132808
Packaging: Sold Individually
Description:
Phoenix Contact 1405896 Sensor/Actuator Cable

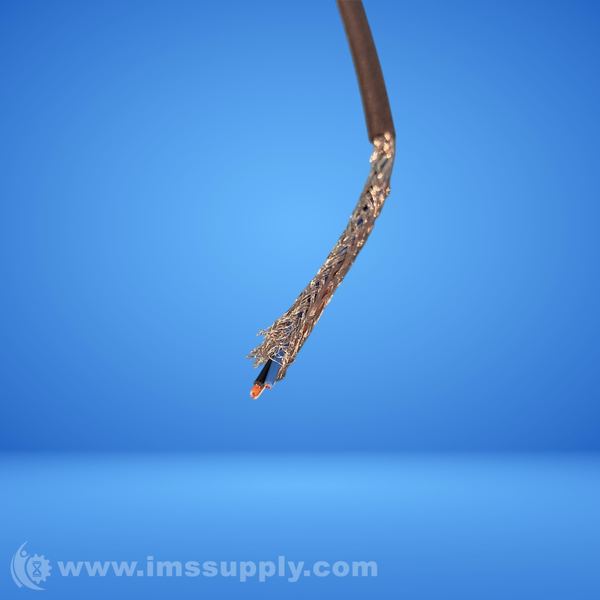

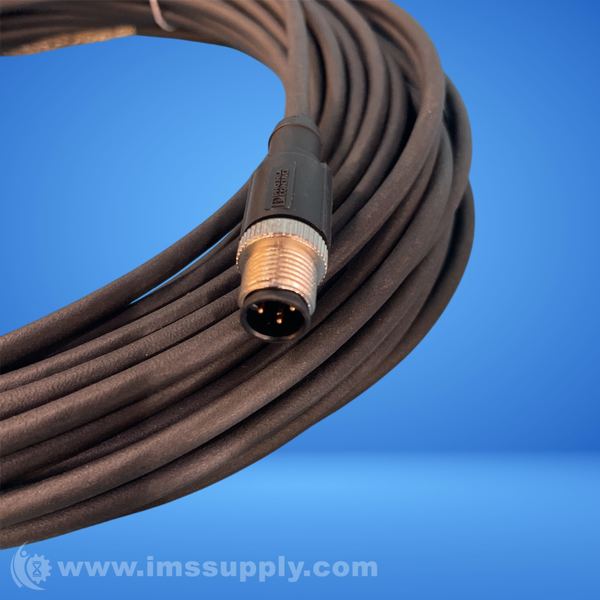

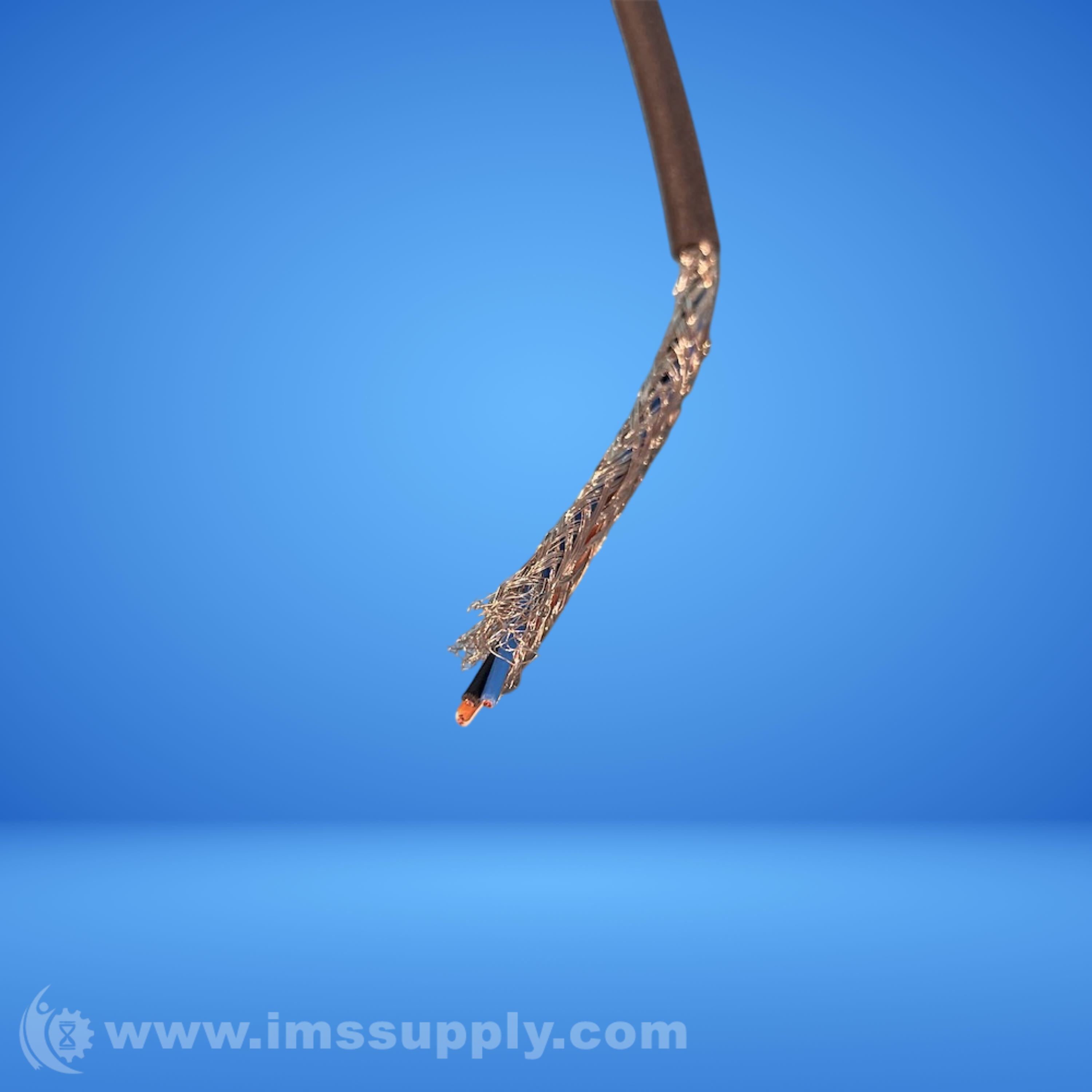

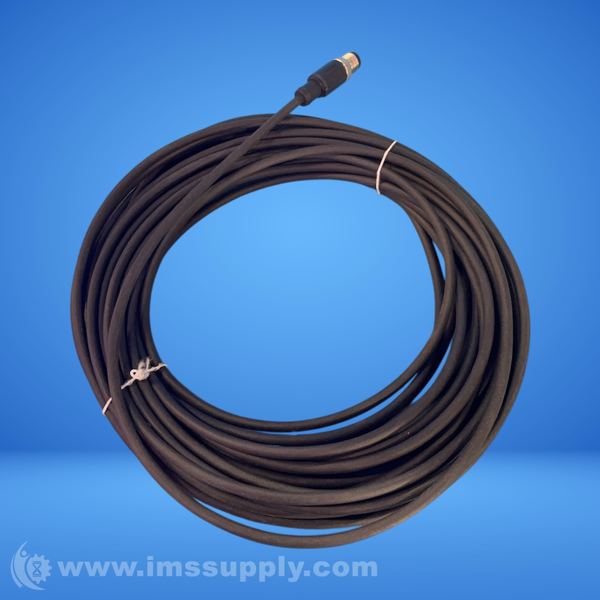

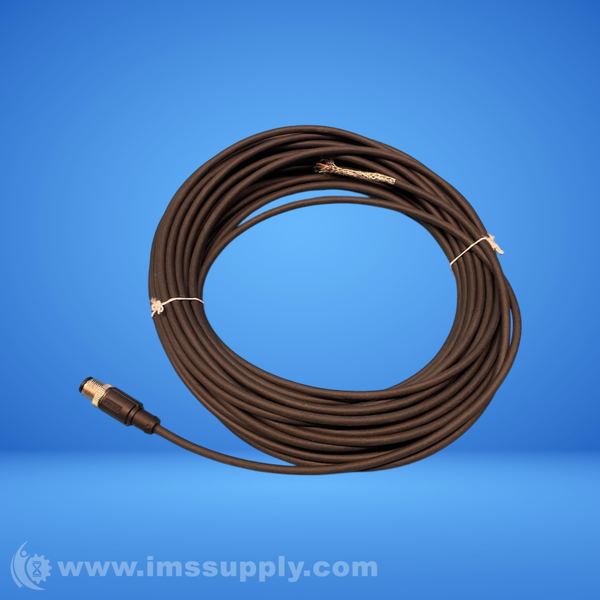

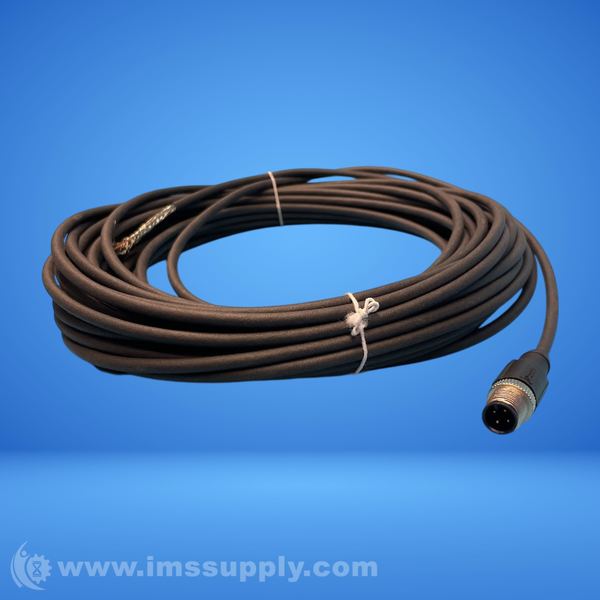

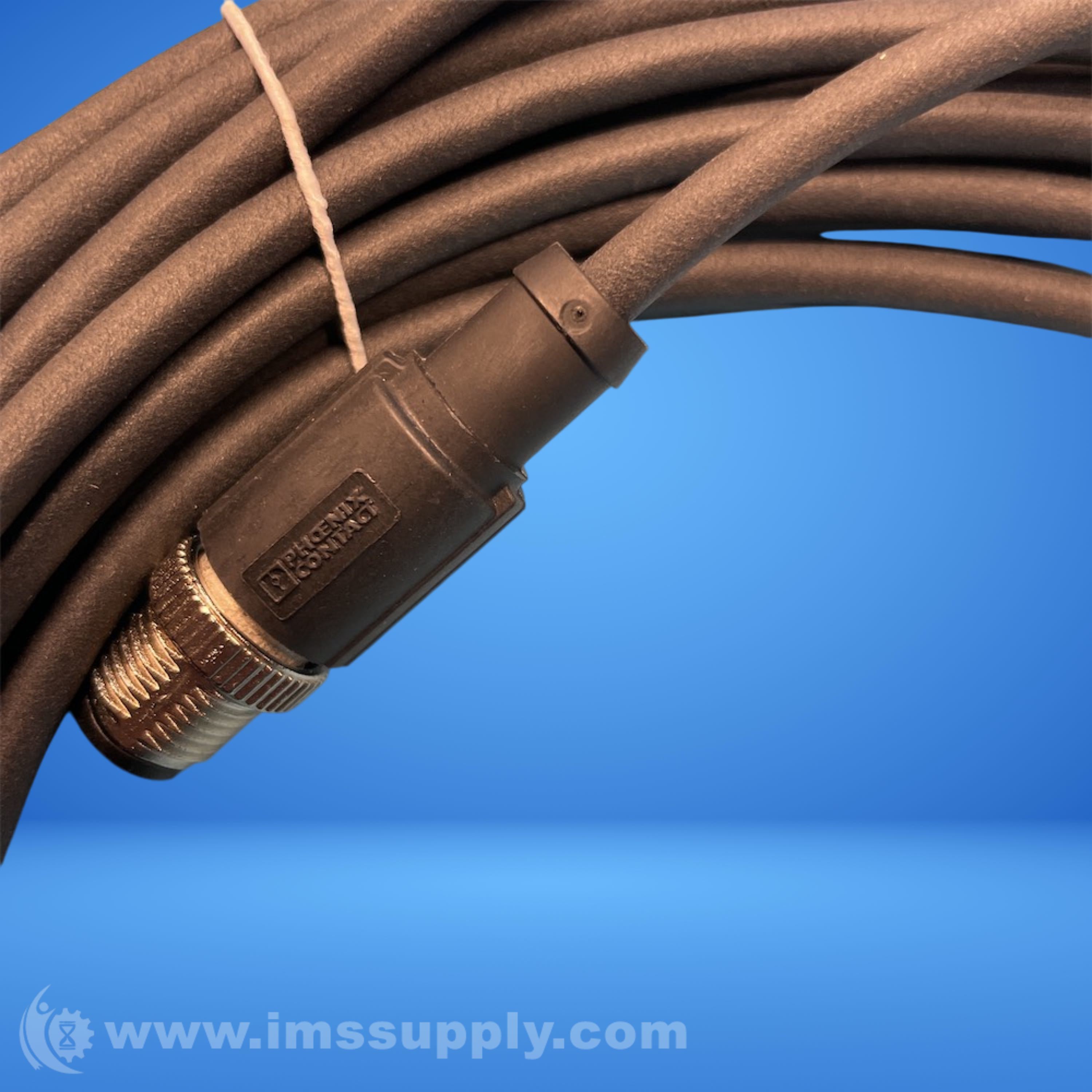

Sensor/actuator cable, 4-position, shielded, Plug straight M12, coding: A, on free cable end, cable length: Free input (0.2 m ... 85.0 m)
Specifications
- Number of positions: 4
- Shielded: yes
- Coding: A
- Nominal voltage UN: 48 V AC / 60 V DC
- Nominal current IN: 4 A
- Cable length: Free input (0.2 m ... 85.0 m)

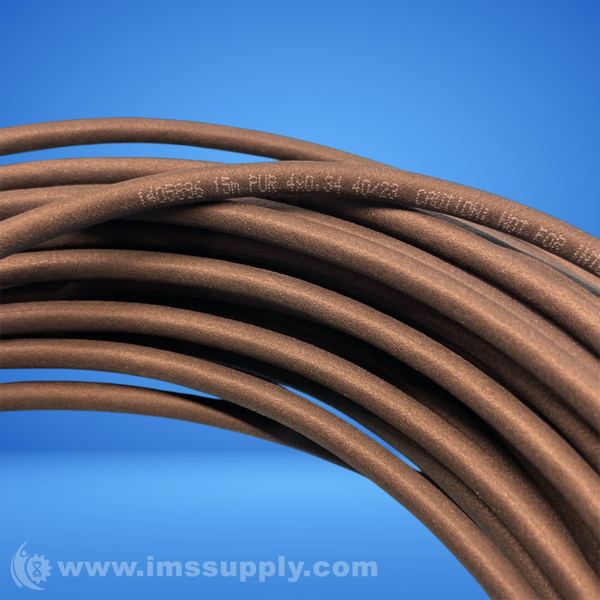

- Cable type: PUR halogen-free black [PUR]
- Conductor cross section: 4x 0.34 mm² (Signal line)
- AWG signal line: 22
- External cable diameter: 4.95 mm ±0.2 mm
- Ambient temperature (operation): -40 °C ... 80 °C (cable, fixed installation), -25 °C ... 80 °C (Cable, flexible installation), -30 °C ... 105 °C (cable, fixed installation), -5 °C ... 105 °C (Cable, flexible installation)
- Degree of protection: IP65 / IP67
- Material contact: CuSn
- Material surface contacts: Ni/Au
- Resistence of insulation: = 100 MO
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 11 hours and 5 minutes.
