PHOENIX CONTACT 1406248 SENSOR/ACTUATOR CABLE
Quick Overview
Manufactured By: PHOENIX CONTACT
Manufacturer Part Number: 1406248
IMS Product Code: 1826684
Packaging: Sold Individually
Description:
Phoenix Contact 1406248 Sensor/Actuator Cable

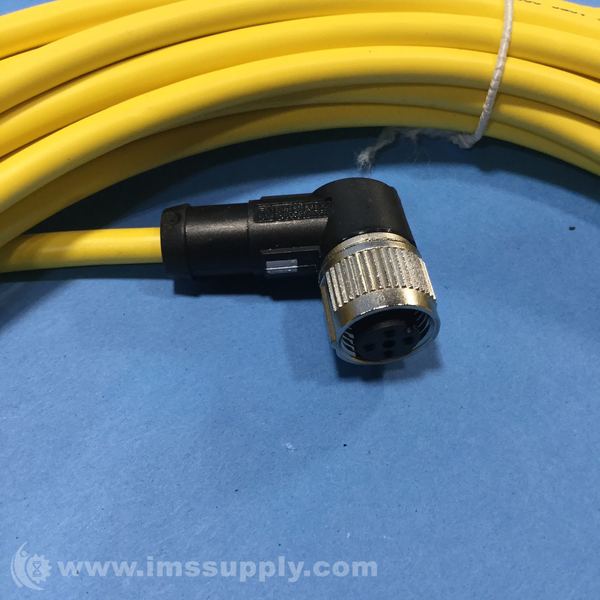

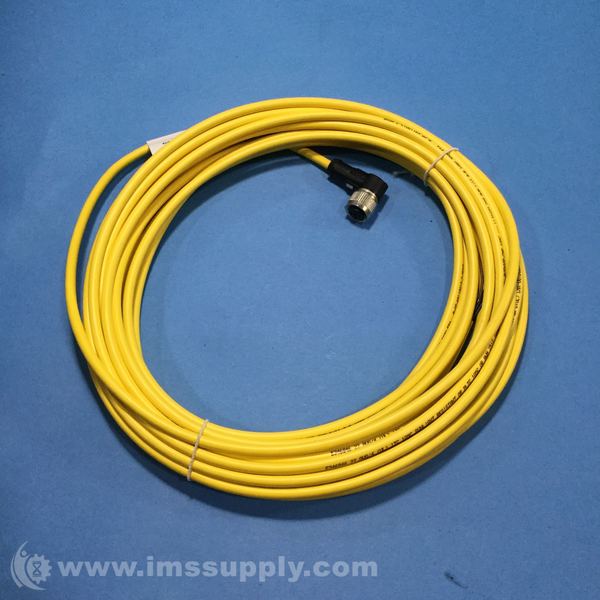

Sensor/actuator cable, 4-position, PVC, yellow, free cable end, on Socket angled M12, coding: A, cable length: 10 m
Specifications
- Number of positions: 4
- No. of cable outlets: 1
- Shielded: no
- Coding: A
- Outer sheath, material: PVC
- Nominal voltage UN: 250 V AC250 V DC
- Nominal current IN: 4 A
- Cable length: 10 m
- Cable weight: 36 kg/km
- Conductor material: Tin-plated Cu litz wires
- External cable diameter: 5.00 mm ±0.2 mm
- Single wire, color: brown, blue, black, white
- Degree of protection: IP65IP67IP68
- Ambient temperature (operation): -30 °C ... 105 °C (cable, fixed installation)-5 °C ... 105 °C (Cable, flexible installation)
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
