PHOENIX CONTACT 1671386 M12/M8/M8 DISTRIBUTION CABLE
Quick Overview
Manufactured By: PHOENIX CONTACT
Manufacturer Part Number: 1671386
IMS Product Code: 2131960
Packaging: Sold Individually
Description:

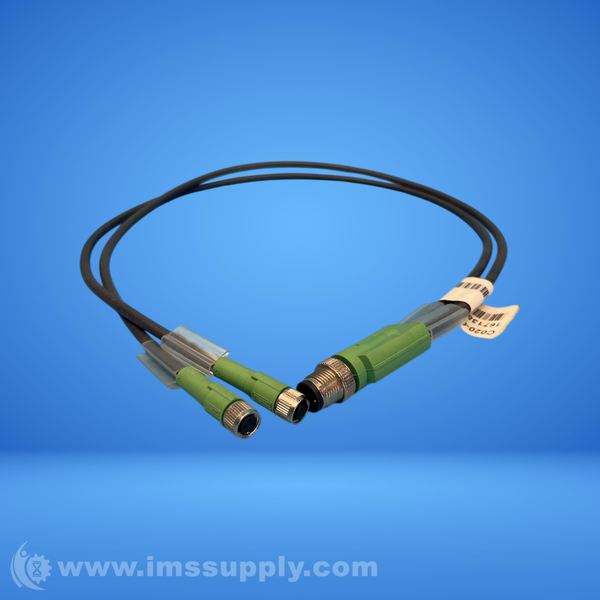

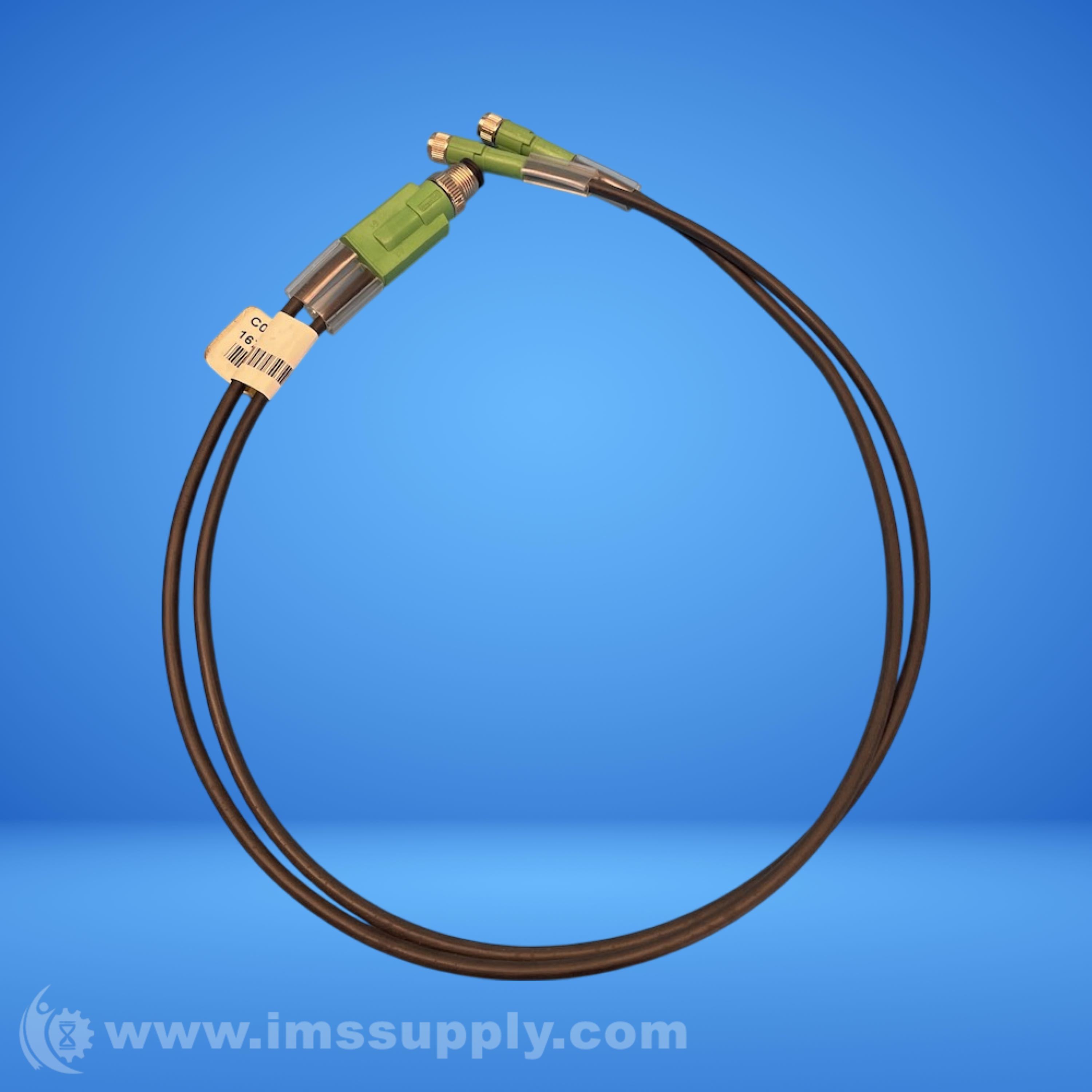

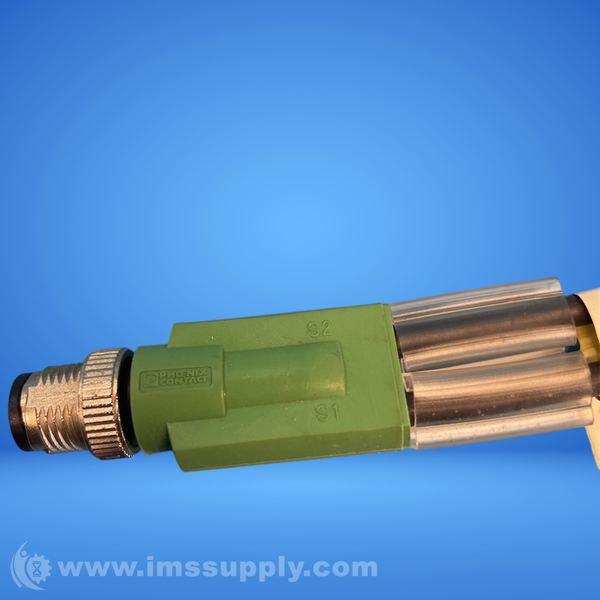

Phoenix Contact 1671386 M12/M8/M8 Distribution Cable
Sensor/actuator cable, 3-position, PUR halogen-free, black-gray RAL 7021, Plug straight M12, coding: A, on Socket angled M8, coding: A and Socket angled M8, coding: A, cable length: 0.6 m
Specifications
- Product type: Distributor with cable
- Number of positions: 3
- No. of cable outlets: 2
- Shielded: no
- Coding: A
- Tightening torque: 0.4 Nm (M12 connector), 0.2 Nm (M8 connectors)
- Nominal voltage UN: 48 V AC, 60 V DC
- Nominal current IN: 4 A
- Cable length: 0.6 m
- Cable weight: 18 kg/km
- External cable diameter: 3.60 mm ±0.15 mm
- Outer sheath, material: PUR
- Outer sheath, color: black-gray RAL 7021
- Conductor material: Bare Cu litz wires
- Conductor cross section: 3x 0.25 mm˛ (Signal line)
- AWG signal line: 24
- Degree of protection: IP65, IP67, IP68
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 10 In Stock
Ships on Monday, October 6, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
