PHOENIX CONTACT 2754927 I/O MODULE
Quick Overview
Manufactured By: PHOENIX CONTACT
Manufacturer Part Number: 2754927
IMS Product Code: 1843903
Packaging: Sold Individually
Description:

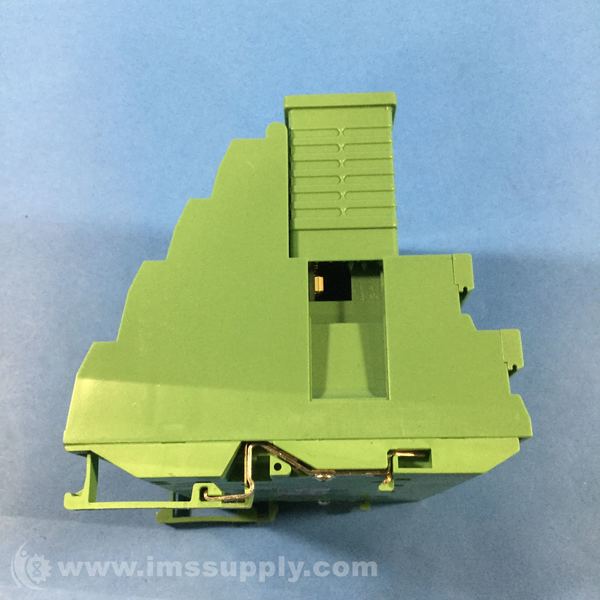

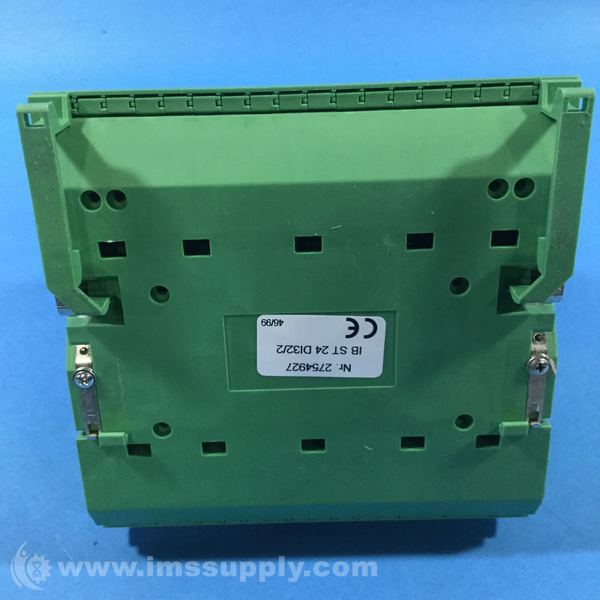

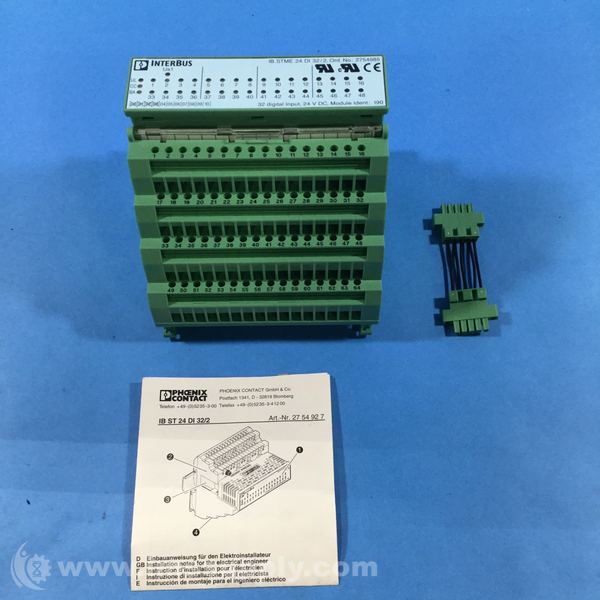

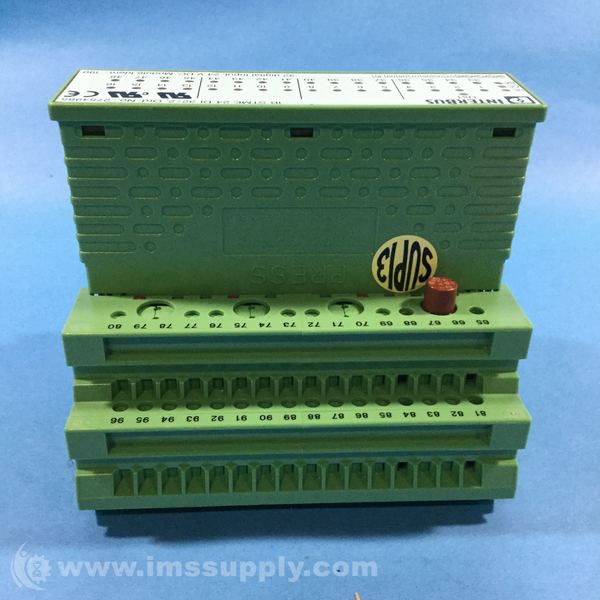

Phoenix Contact 2754927 I/O Module
INTERBUS-ST digital input module with 32 inputs, 24 V DC, 2-wire connection method, IP20 protection, consisting of terminal part with screw connection and module electronics
Specifications
- Width: 118 mm
- Height: 117 mm
- Depth: 116 mm
- Connection method: Screw connection
- Input name: Digital inputs
- Number of inputs: 32
- Input voltage: 24 V DC
- Input voltage range "0" signal: -30 V DC ... 6 V DC
- Input voltage range "1" signal: 13 V DC ... 30 V DC
- Nominal input current at UIN: typ. 5 mA (per channel)
- Typical response time: 3 ms (typical)
- Supply voltage: 24 V DC
- Supply voltage range: 20 V DC ... 30 V DC (including ripple)
- Current consumption: typ. 200 mA
- Test voltage: Bus logic / I/O: 500 V AC, 50 Hz, 1 min
- Test voltage: Ground conductor / I/O: 500 V AC, 50 Hz, 1 min
- Test voltage: Supply voltage logic / I/O: 500 V AC, 50 Hz, 1 min
- Conductor cross-section, rigid: 0.2 mm˛ ... 2.5 mm˛
- Conductor cross-section, flexible: 0.2 mm˛ ... 2.5 mm˛
- Conductor cross-section AWG: 24 ... 12
- Stripping length: 8 mm
- Ambient temperature (operation): 0 degrees C ... 55 degrees C
- Degree of protection: IP20
- Air pressure (operation): 80 kPa ... 108 kPa (up to 2000 m above sea level)
- Air pressure (storage/transport): 80 kPa ... 108 kPa (up to 2000 m above sea level)
- Ambient temperature (storage/transport): -20 degrees C ... 70 degrees C
- Permissible humidity (operation): 75 % (on average, 85% infrequently, non-condensing)
- Permissible humidity (storage/transport): 75 % (on average, 85% infrequently, non-condensing)
- Protection class: III (IEC 61140, EN 61140, VDE 0140-1)
- Mounting type: DIN rail mounting
- Mounting position: Horizontal DIN rail

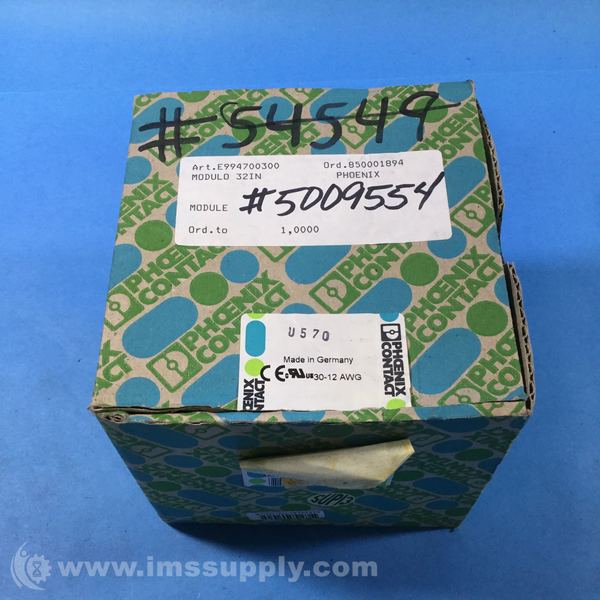

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
