PHOENIX CONTACT 2807609 SURGE PROTECTION PLUG
Quick Overview
Manufactured By: PHOENIX CONTACT
Manufacturer Part Number: 2807609
IMS Product Code: 1913923
Packaging: Sold Individually
Description:

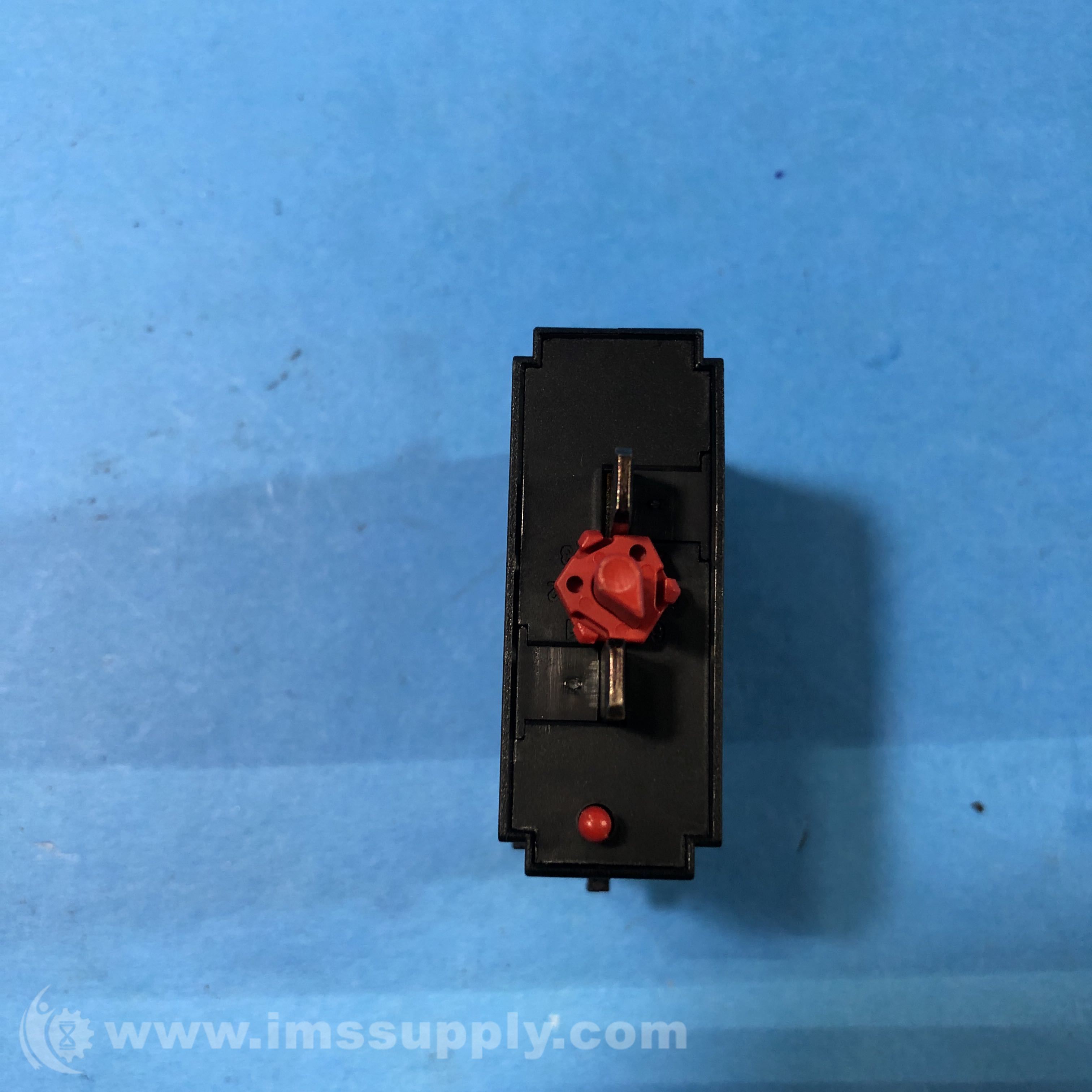

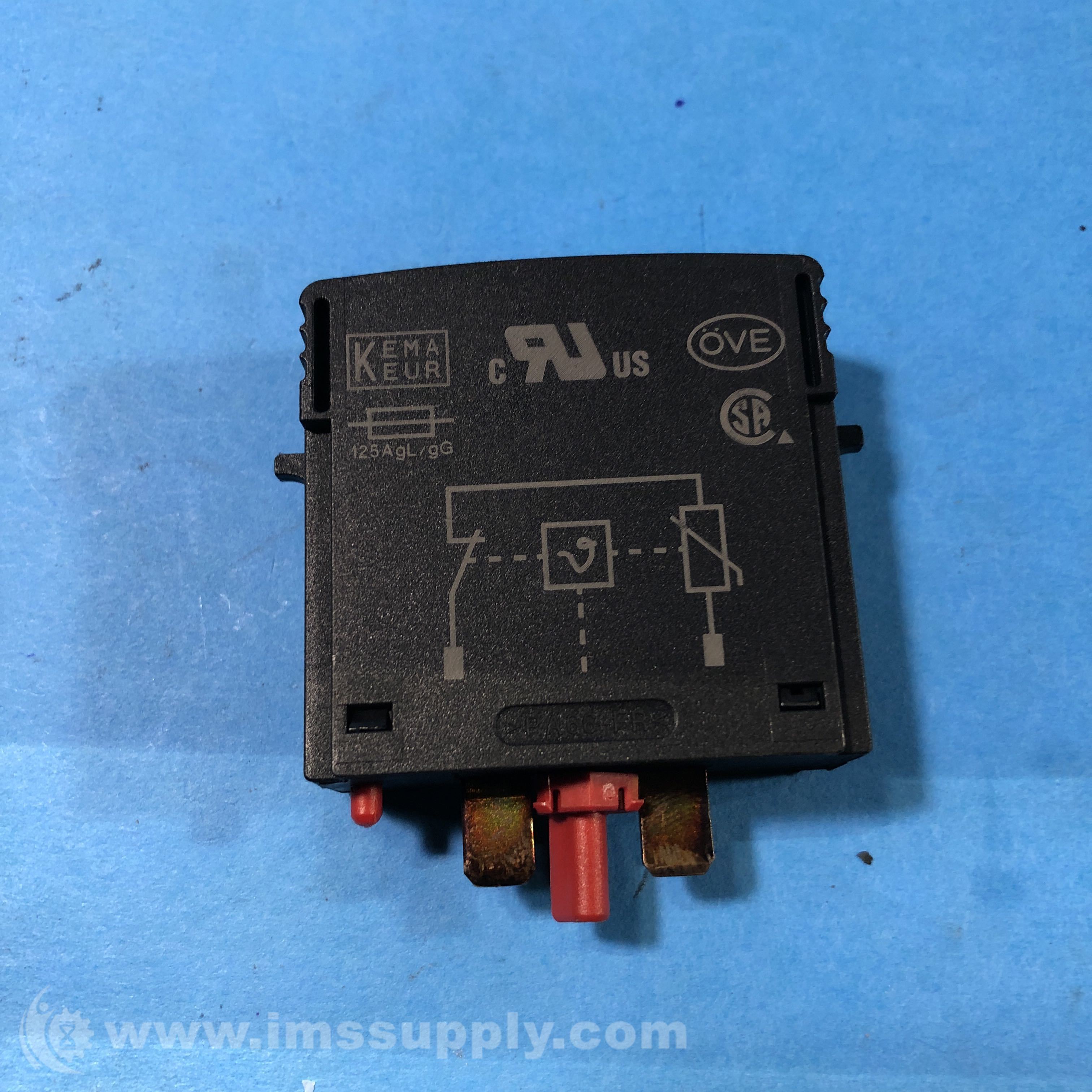

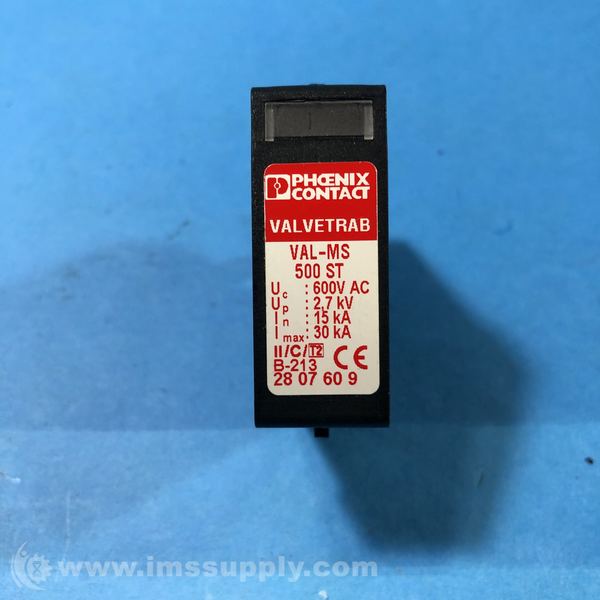

Phoenix Contact 2807609 Surge Protection Plug
Surge protection connector type 2 with high-capacity varistor for VAL-MS base element, thermal monitoring, visual fault warning. Design: 500 V AC
Specifications
- Product family: VALVETRAB MS
- IEC test classification: II
- Type: DIN rail module, two-section, divisible
- Nominal voltage UN: 400/690 V AC (TN), 500 V AC (IT)
- Maximum continuous operating voltage UC: 600 V AC
- Nominal discharge current In (8/20) µs: 15 kA
- Maximum discharge current Imax (8/20) µs: 30 kA
- Voltage protection level Up: = 2.7 kV
- Response time tA: = 25 ns
- Degree of protection: IP20
- Ambient temperature (operation): -40 °C ... 80 °C
- Width: 17.5 mm
- Height: 52.4 mm
- Depth: 55.3 mm
- Material: PA 6.6
- Color: black (RAL 9005)
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
