PHOENIX CONTACT 5528367 VARIOFACE MODULE
Quick Overview
Manufactured By: PHOENIX CONTACT
Manufacturer Part Number: 5528367
IMS Product Code: 1829366
Packaging: Sold Individually
Description:
Phoenix Contact 5528367 Varioface Module

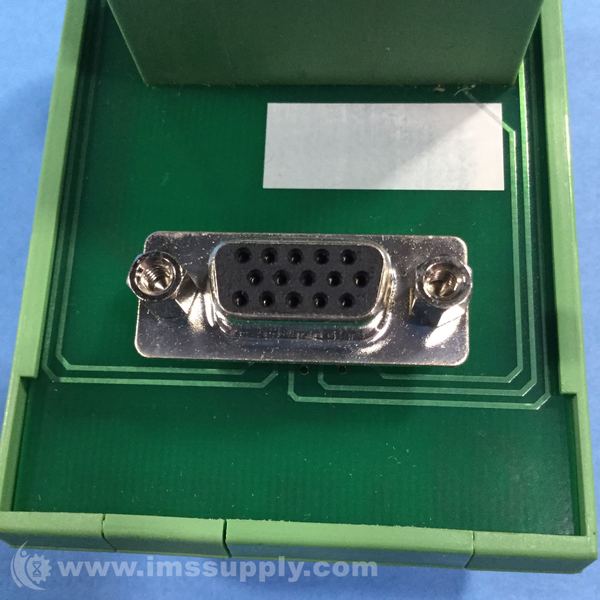

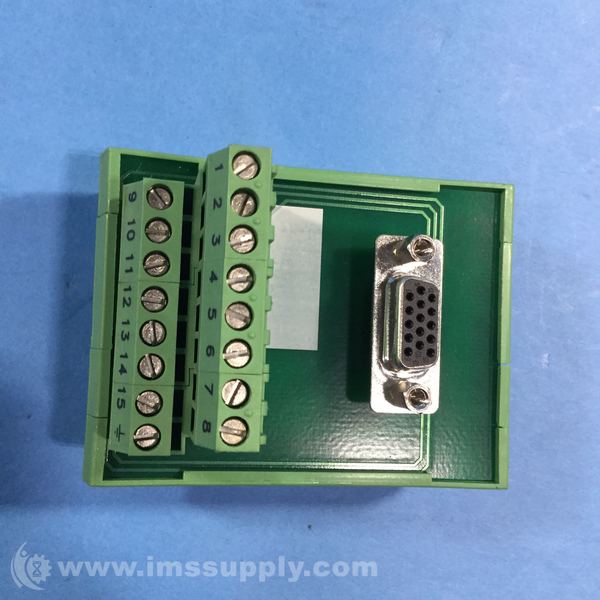

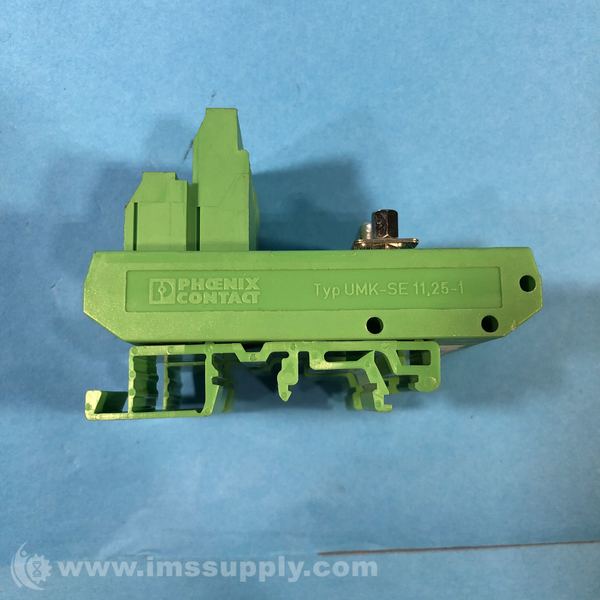

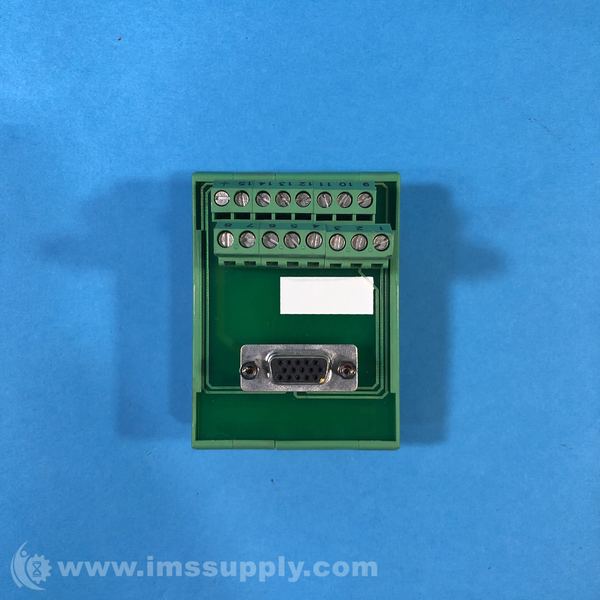

Varioface module with screw connection and High Density D-Subminiature female connector, for mounting on NS 32 or NS 35/7.5, 15 positions, 57 mm width
Specifications
- Number of Positions: 15
- Nominal Voltage UN: 125 V
- Max. Current Carrying Capacity per Branch: 1 A
- Connection Method: Screw Connection
- Stripping Length: 8 mm
- Screw Thread: M3
- Conductor Cross-Section Rigid: 0.2 mm˛ ... 4 mm˛
- Conductor Cross-Section Flexible: 0.2 mm˛ ... 2.5 mm˛
- Conductor Cross-Section AWG: 24 ... 12
- Width: 57 mm
- Height: 77 mm
- Depth: 58 mm
- Color: green (RAL 6021)
- Housing Insulation Material: Polyamide PA non-reinforced
- Ambient Temperature (Operation): -20 degrees C ... 50 degrees C
- Ambient Temperature (Storage/Transport): -20 degrees C ... 70 degrees C
- Mounting Position: any
- Series: VARIOFACE, FLKM

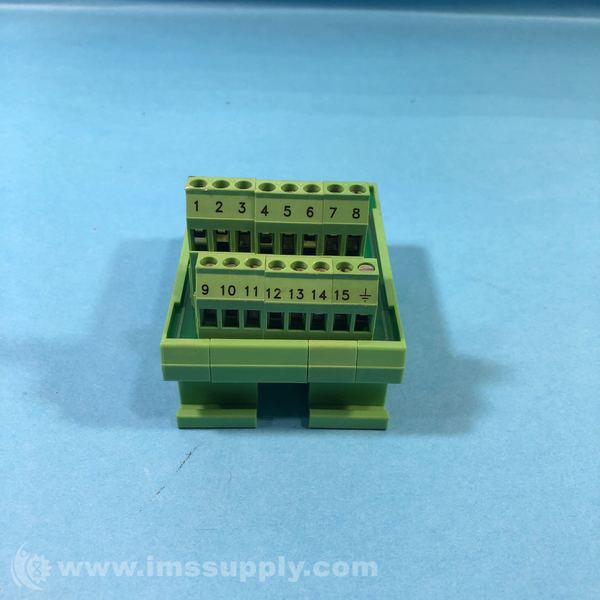

- Process Side Connection: Terminal Blocks - Screw Connection
- Control Side Connection: D-Sub, Female
- Control Side Cable Retainer: Jackscrew Socket
- Positions / Poles: 15
- Voltage - Rated: 125V
- Current Rating (Per Contact): 1A
- Operating Temperature: -20 degrees C ~ 50 degrees C
- Length: 2.244" (57.00mm)
- Wire Gauge: 12-24 AWG
