PHOENIX CONTACT SAC-12P-MS/10,0-35T SH SCO 12-POSITION CABLE
Quick Overview
Manufactured By: PHOENIX CONTACT
Manufacturer Part Number: SAC-12P-MS/10,0-35T
IMS Product Code: 2131701
Packaging: Sold Individually
Description:

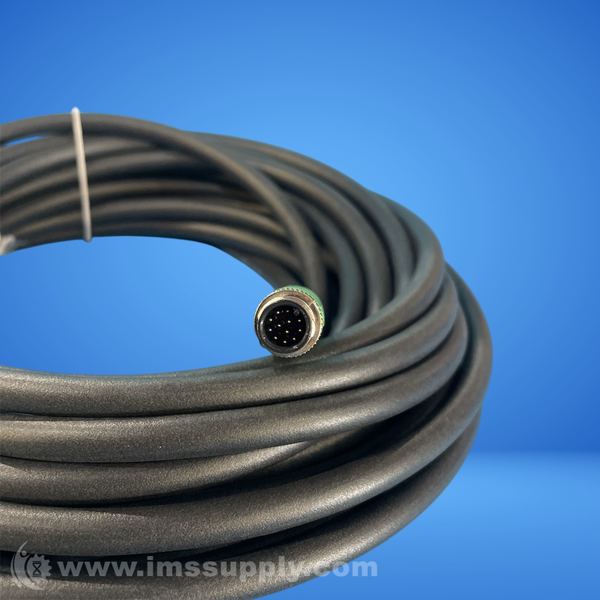

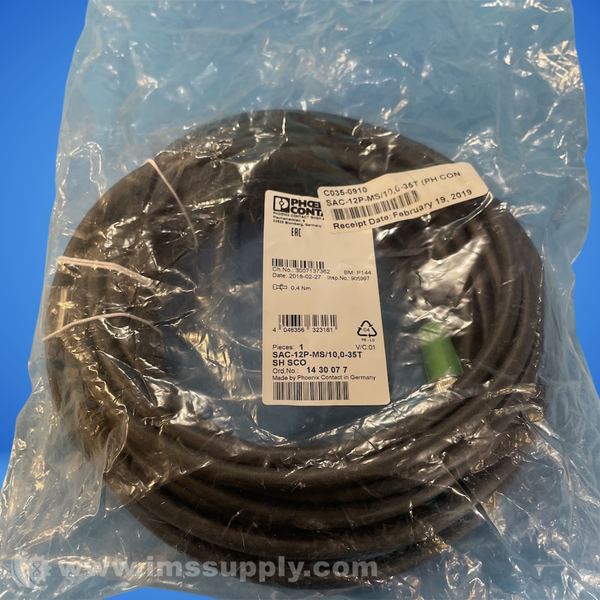

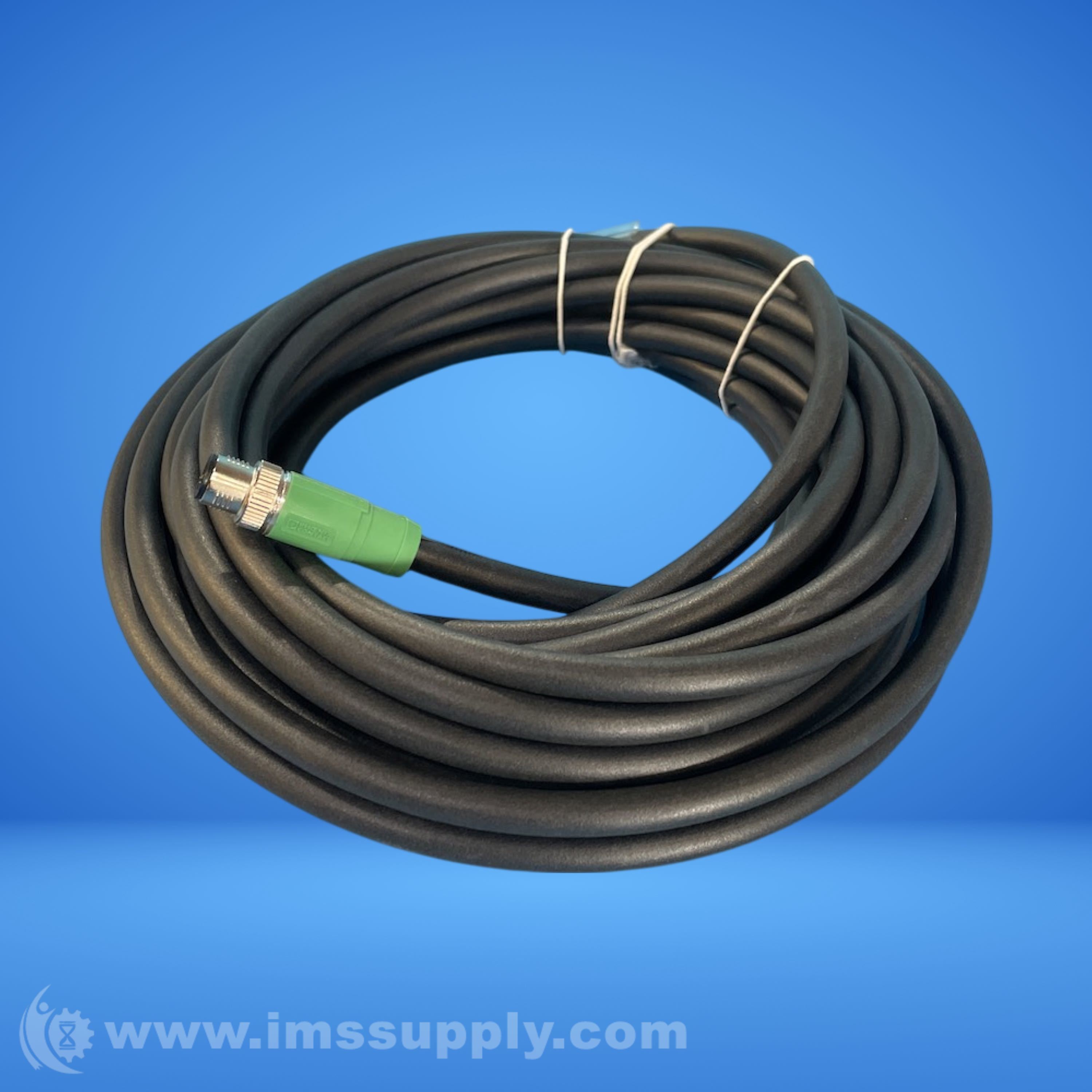

Phoenix Contact SAC-12P-MS/10,0-35T SH SCO 12-Position Cable
12-position sensor/actuator cable, shielded, PUR/PVC, black, M12 SPEEDCON plug straight to free cable end, 10 m length
Specifications
- Number of positions: 12
- Cable length: 10 m
- Shielded: yes
- Coding: A
- Nominal voltage UN: 30 V AC
- Nominal current IN: 1.5 A
- Tightening torque: 0.4 Nm
- Outer sheath material: PUR
- External sheath color: black RAL 9005
- Conductor material: Tin-plated Cu litz wires
- Material wire insulation: PVC
- Twisted pairs: 2 cores to the pair
- Overall twist: Six pairs around the filler to the core
- Optical shield covering: 85 %
- Max. conductor resistance: = 142 O/km
- Insulation resistance: = 100 MO
- Test voltage: 1500 V AC
- Minimum bending radius (fixed): 5 x D
- Minimum bending radius (flexible): 10 x D
- Flame resistance: According to DIN EN 60332-1-2
- Resistance to oil: in accordance with DIN EN 60811-2-1
- Ambient temperature (operation): -40 °C to 80 °C
- Degree of protection: IP65
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 2 In Stock
Ships today if ordered in the next 11 hours and 7 minutes.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 11 hours and 7 minutes.
