PHOENIX CONTACT SAC-4P-10,0-186/M12FS SKL SENSOR/ACTUATOR CABLE
Quick Overview
Manufactured By: PHOENIX CONTACT
Manufacturer Part Number: SAC-4P-10,0-186/M12FS SKL
IMS Product Code: 2133256
Packaging: Sold Individually
Description:

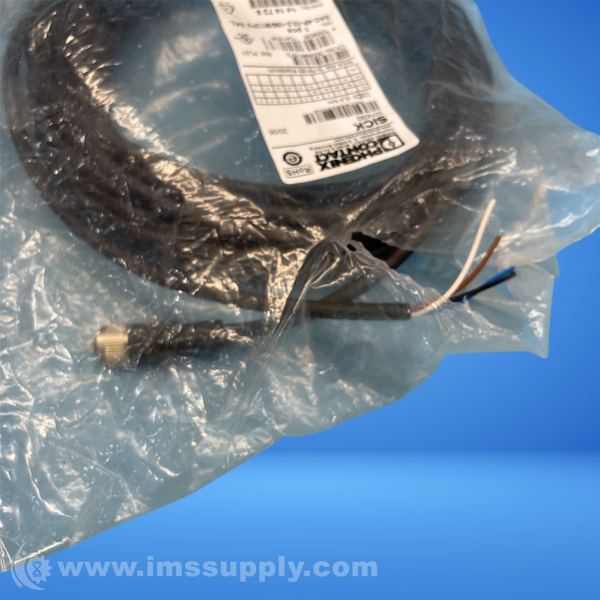

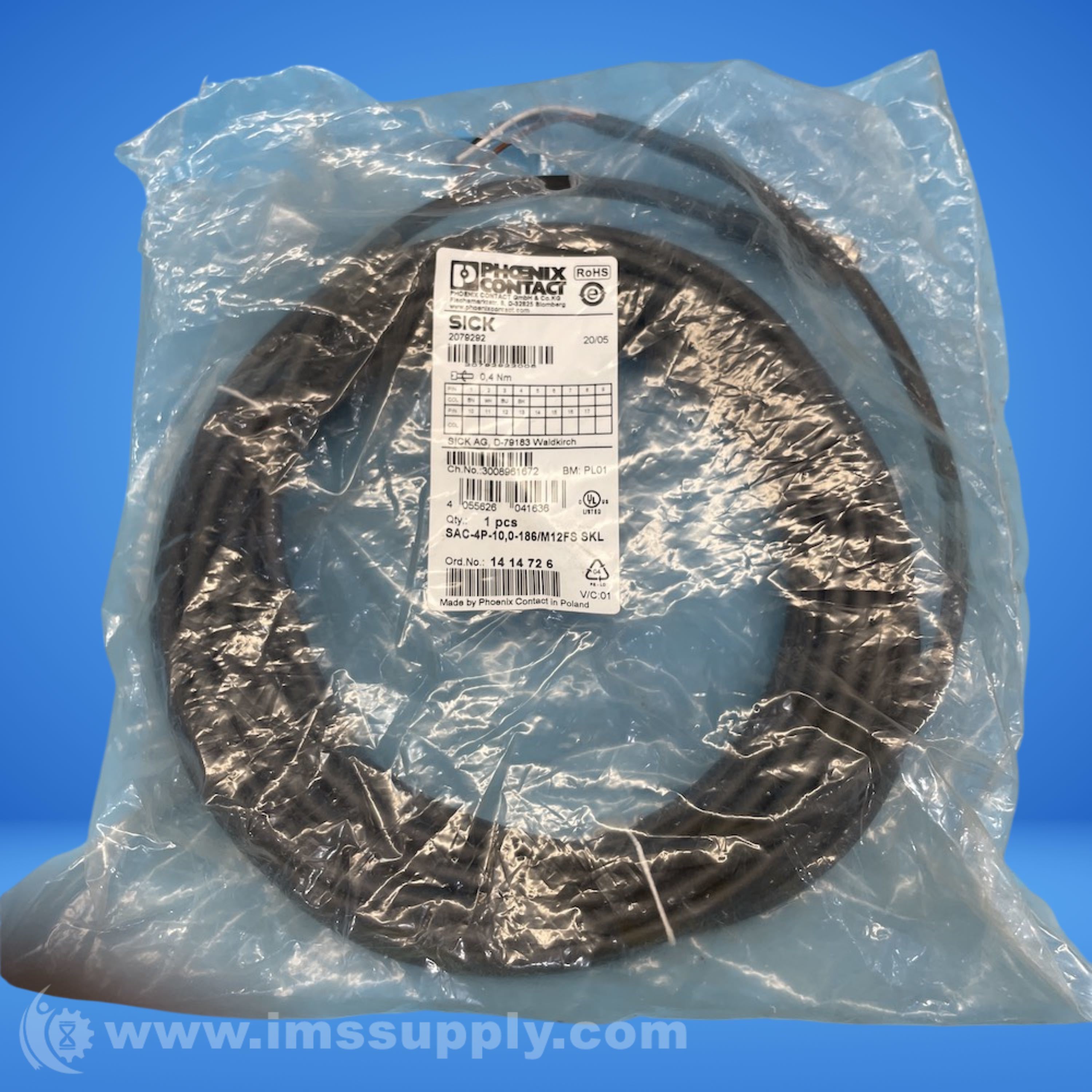

Phoenix Contact SAC-4P-10,0-186/M12FS SKL Sensor/Actuator Cable
4-position PUR sensor/actuator cable with M12 female connector and free cable end, 10m length
Specifications
- Cable Length: 10 m
- Number of Positions: 4
- Coding: A
- Shielded: no
- Nominal Voltage: 250 V AC
- Nominal Current: 4 A
- Contact Material: CuSn
- Contact Surface Material: Ni/Au
- Outer Sheath Material: PUR
- Outer Sheath Color: black-gray RAL 7021
- Conductor Material: Bare Cu litz wires
- Conductor Cross Section: 4x 0.75 mm²
- AWG Signal Line: 18
- Wire Diameter incl. Insulation: 1.75 mm ±0.05 mm
- External Cable Diameter: 5.90 mm ±0.15 mm
- Minimum Bending Radius (fixed): 5 x D
- Minimum Bending Radius (flexible): 10 x D
- Ambient Temperature (operation): -25 °C ... 80 °C
- Degree of Protection: IP65
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 7 hours and 16 minutes.
