PHOENIX CONTACT SAC-5P-M12MSB/0,3-900/M12FSB INTERBUS CABLE
Quick Overview
Manufactured By: PHOENIX CONTACT
Manufacturer Part Number: SAC-5P-M12MSB/0,3-900/M12FSB
IMS Product Code: 1942918
Packaging: Sold Individually
Description:

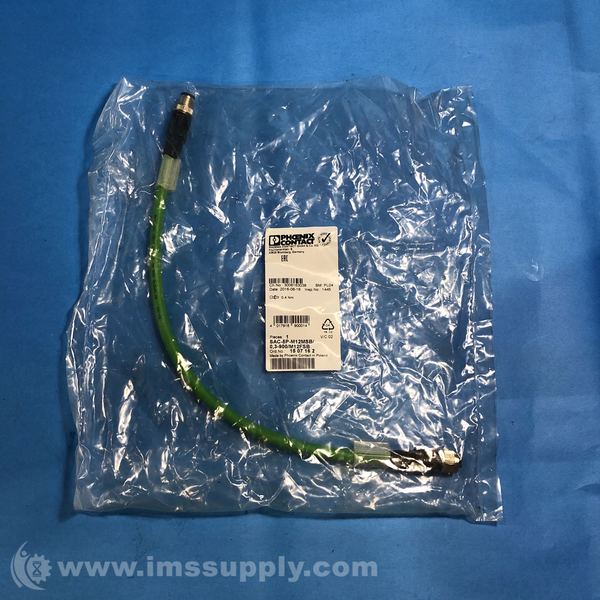

Phoenix Contact SAC-5P-M12MSB/0,3-900/M12FSB INTERBUS Cable

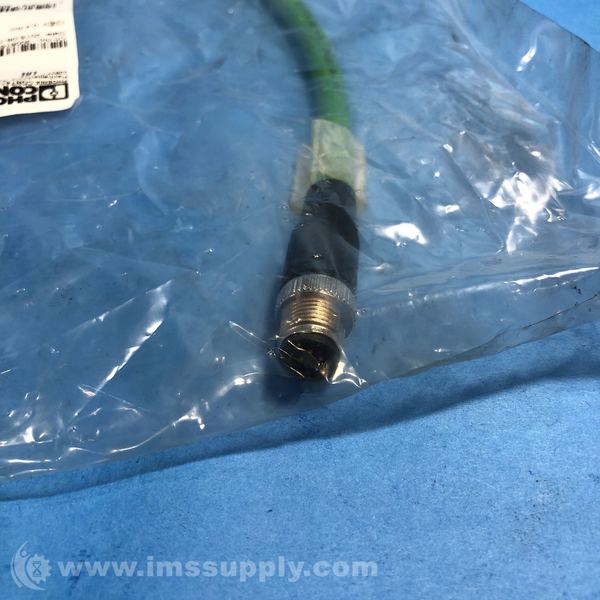

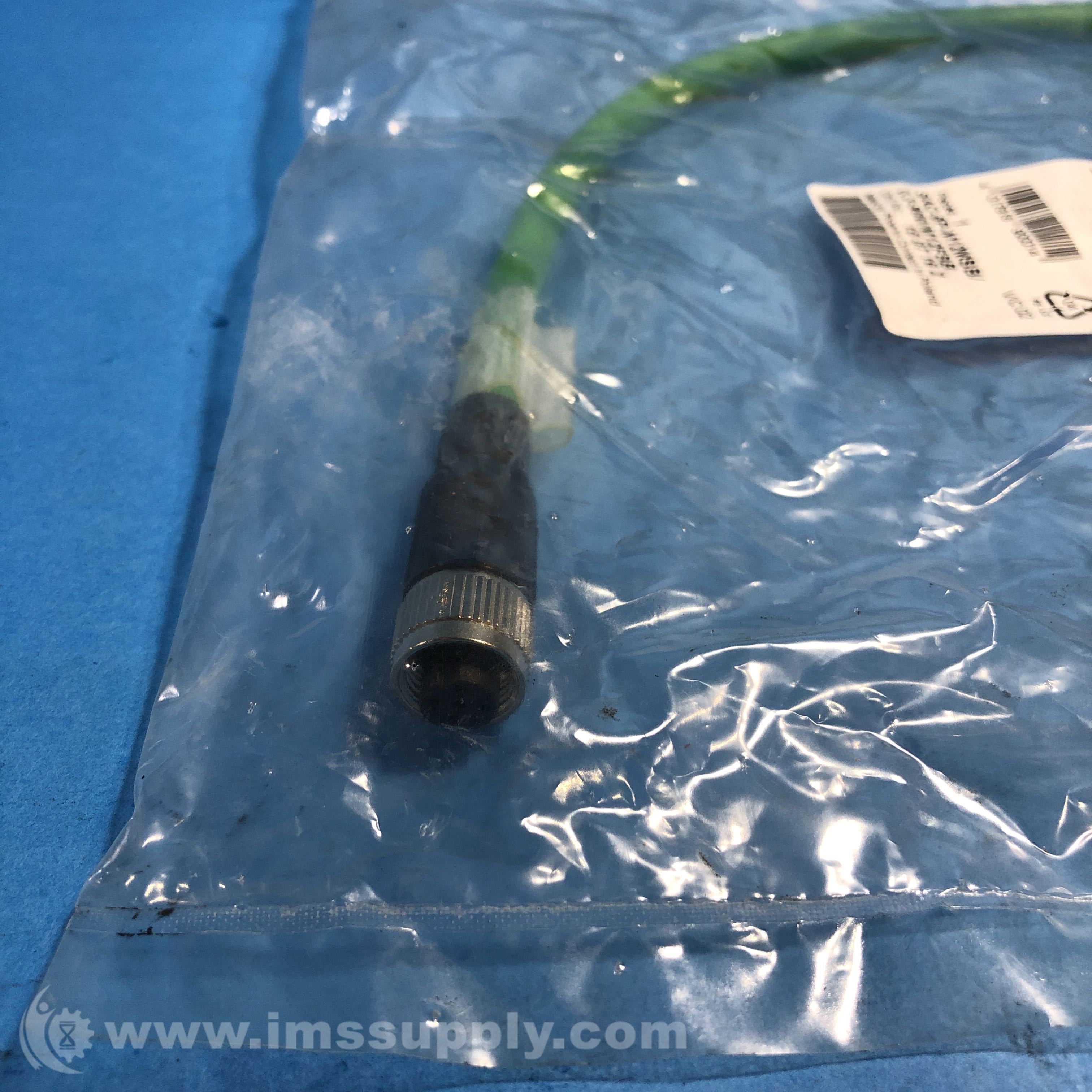

INTERBUS cable with M12 male straight connector and M12 female straight connector, 5-position, shielded, PUR halogen-free jacket, 0.3m length, used for sensor and actuator connections.
Specifications
- Application: Standard
- Sensor type: INTERBUS
- Number of positions: 5
- Shielded: yes
- Coding: B
- Nominal voltage UN: 48 V AC
- Nominal voltage UN: 60 V DC
- Nominal current IN: 4 A
- Transmission medium: Copper
- Transmission speed: 16 Mbps
- Cable length: 0.3 m
- Cable type: INTERBUS [900]
- Conductor structure: 3 x 2 x 0.22 mm²
- External cable diameter: 8.00 mm
- Outer sheath, material: PUR
- Outer sheath, color: may green RAL 6017
- Conductor material: Bare Cu litz wires
- Material wire insulation: PE
- Twisted pairs: 2 cores to the pair
- Overall twist: 3 pairs to the core
- Flammability rating according to UL 94: V0
- Ambient temperature (operation): -40 °C ... 80 °C (cable, fixed installation)
- Ambient temperature (operation): -30 °C ... 70 °C (Cable, flexible installation)
