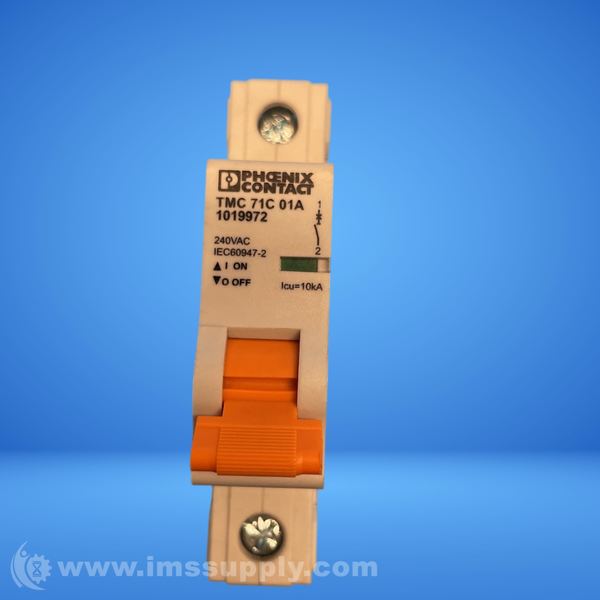

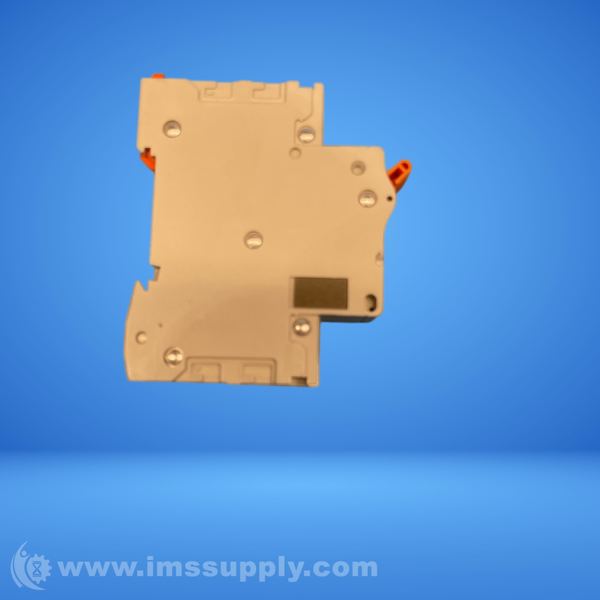

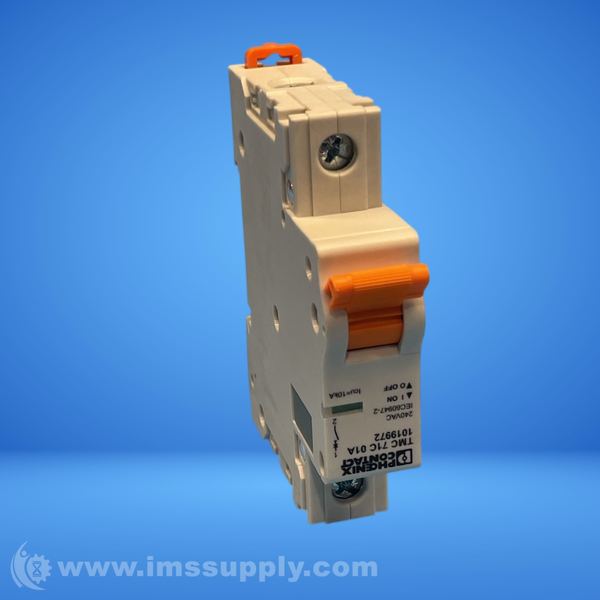

PHOENIX CONTACT TMC 71C 01A MINIATURE CIRCUIT BREAKER
Quick Overview
Manufactured By: PHOENIX CONTACT
Manufacturer Part Number: TMC 71C 01A 1019972
IMS Product Code: 2162335
Packaging: Sold Individually
Description:
Phoenix Contact TMC 71C 01A Miniature Circuit Breaker
Thermal-magnetic miniature circuit breaker for protection against overcurrent, 1-pole, rated current 1A, rated voltage 277V AC / 60V DC, C tripping characteristic, screw connection for 1mm�...35mm� conductors, DIN rail mounting.
Specifications
- rated current: 1 A
- rated voltage (AC): 277 V AC
- rated voltage (DC): 60 V DC
- tripping characteristic: C
- rated short-circuit switching capacity: 7.5 kA (240 V AC/60 V DC), 5 kA (277 V AC)
- connection method: Screw connection
- conductor cross-section: 1 mm� ... 35 mm�
- width: 17.6 mm
- height: 84.3 mm
- depth: 75.9 mm
- degree of protection: IP20
- ambient temperature (operation): -35�C ... 70�C
- standards/specifications: UL 1077, IEC 60947-2
- mounting type: NS 35/...
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 4 In Stock
Ships today if ordered in the next 5 hours and 23 minutes.
