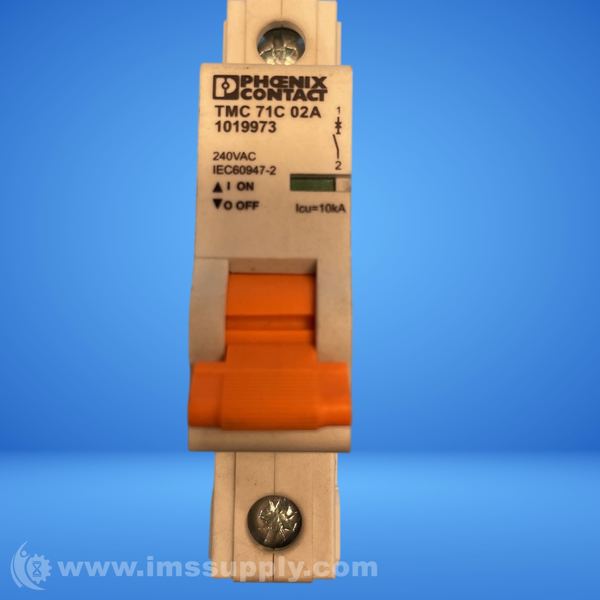

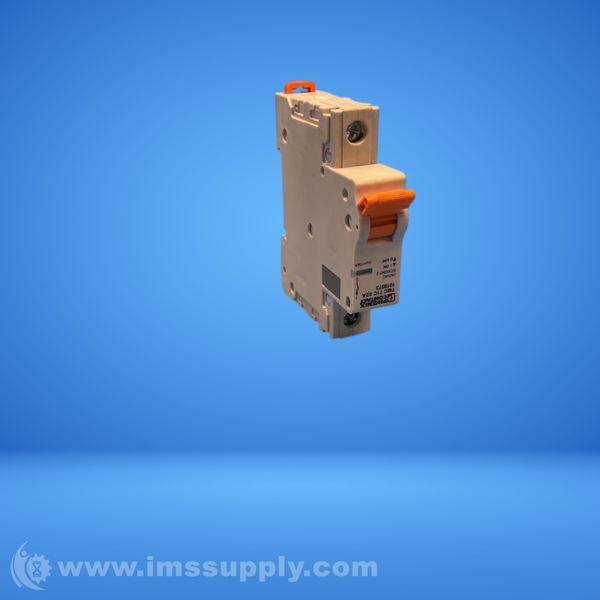

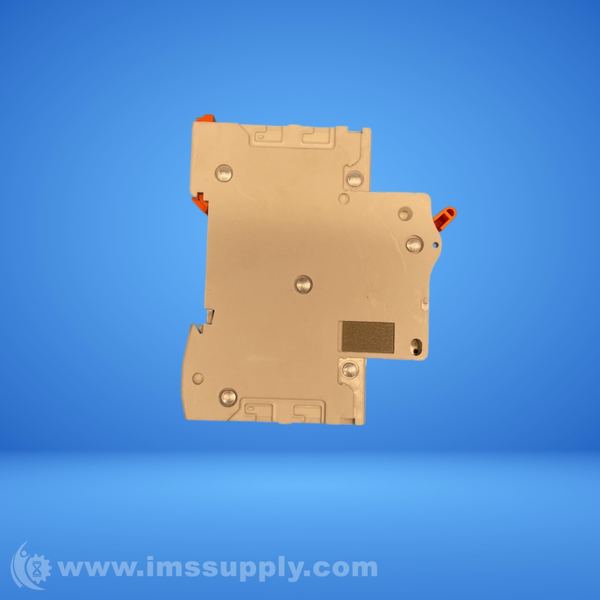

PHOENIX CONTACT TMC 71C 02A MINIATURE CIRCUIT BREAKER
Quick Overview
Manufactured By: PHOENIX CONTACT
Manufacturer Part Number: TMC 71C 02A 1019973
IMS Product Code: 2162336
Packaging: Sold Individually
Description:
Phoenix Contact TMC 71C 02A Miniature Circuit Breaker
Miniature Circuit Breaker, 1-position, Supplementary Protector (UL 1077), for protection against overcurrent up to a short-circuit current of 7.5 kA. Supplementary protector; OC; UG- EA,B,D., tripping characteristic: C, mounting type: NS 35/..., rated current: 2 A
Specifications
- Product type: Circuit breakers
- Product family: TMC 7
- Type: DIN rail module, one-piece
- Number of positions: 1
- Mechanical service life: 20000
- Service life electrical: 6000
- Operating voltage: 277 V AC, 60 V DC
- Rated current IN: 2 A
- Tripping method: TM (thermal-magnetic)
- Rated short-circuit switching capacity Icn: 7.5 kA (240 V AC/ 60 V DC), 5 kA (277 V AC)
- Fuse: C
- Conductor cross-section rigid: 1 mm� ... 35 mm�
- Connection method: Screw connection
- Tightening torque: 2 Nm
- Width: 17.6 mm
- Height: 84.3 mm
- Depth: 75.9 mm (incl. DIN rail 7.5 mm)
- Color: light gray (RAL 7035), copper color
- Degree of protection: IP20
- Ambient temperature (operation): -35 degrees C ... 70 degrees C
- Standards/specifications: UL 1077, IEC 60947-2
- Mounting type: NS 35/...
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
