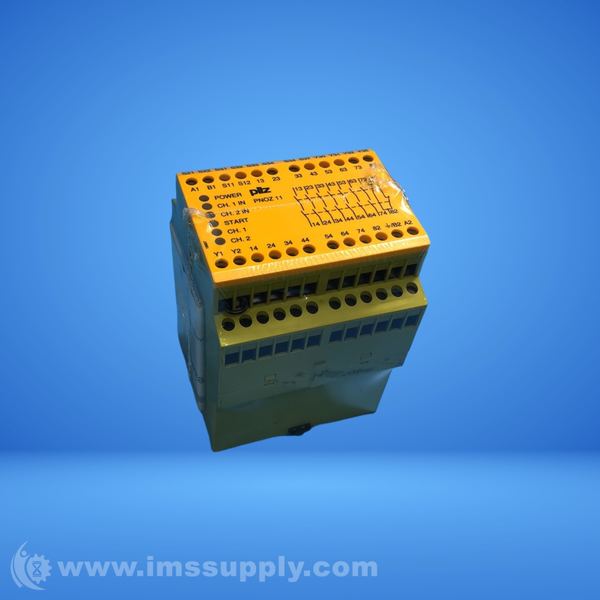

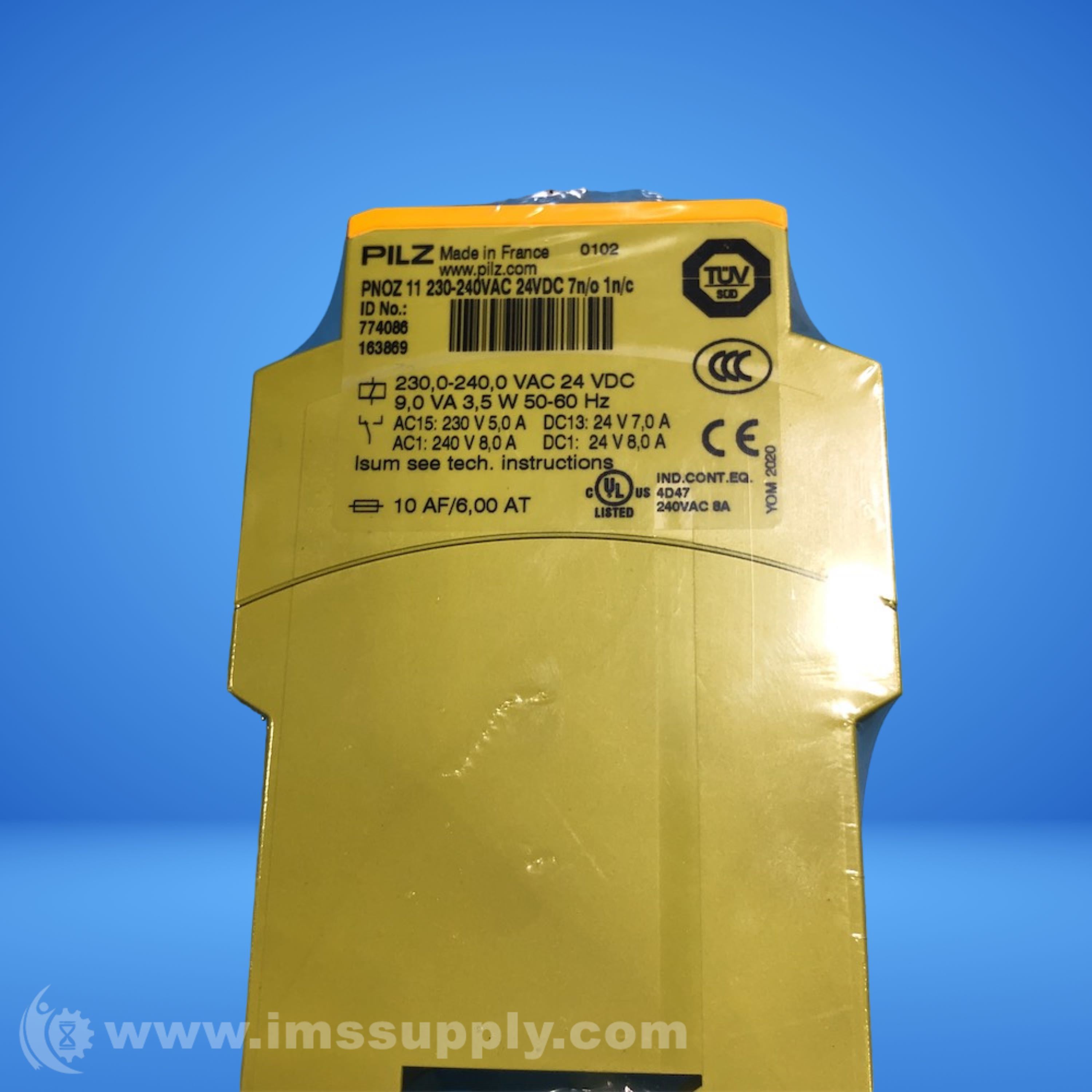

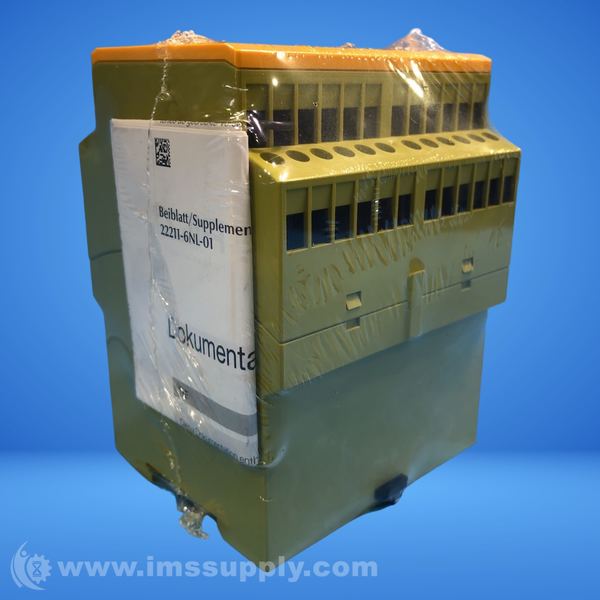

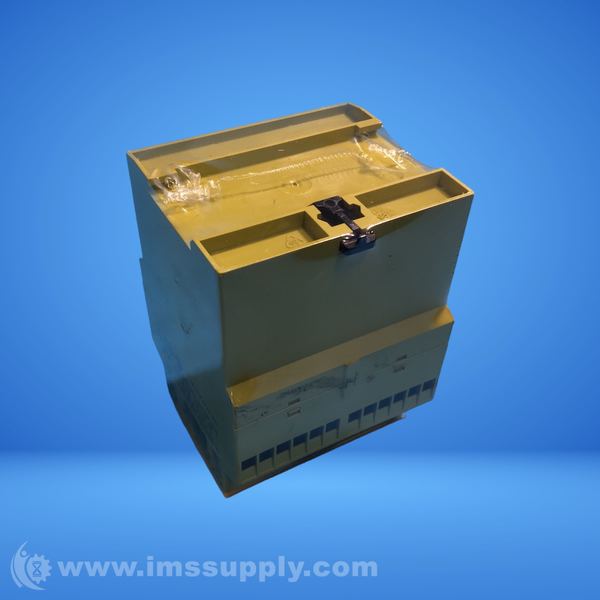

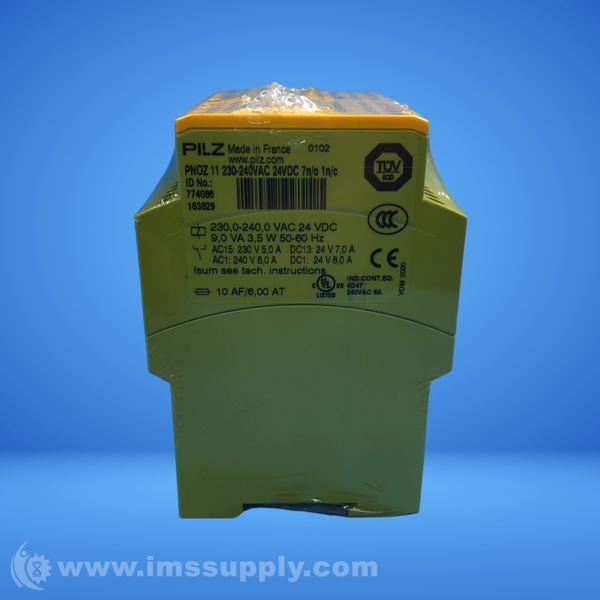

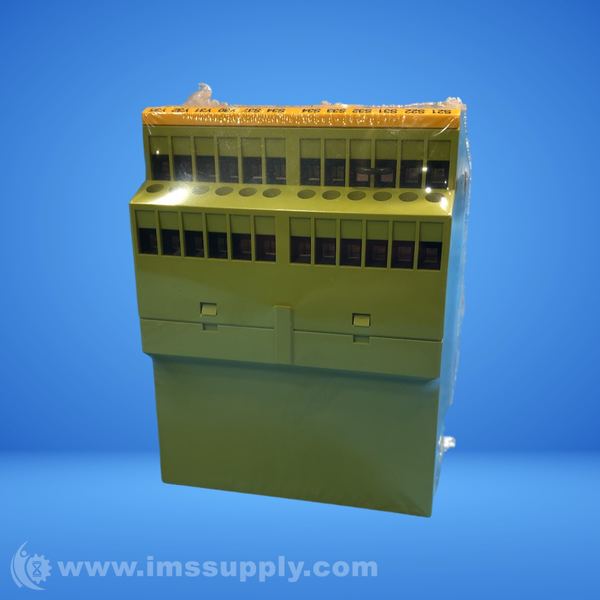

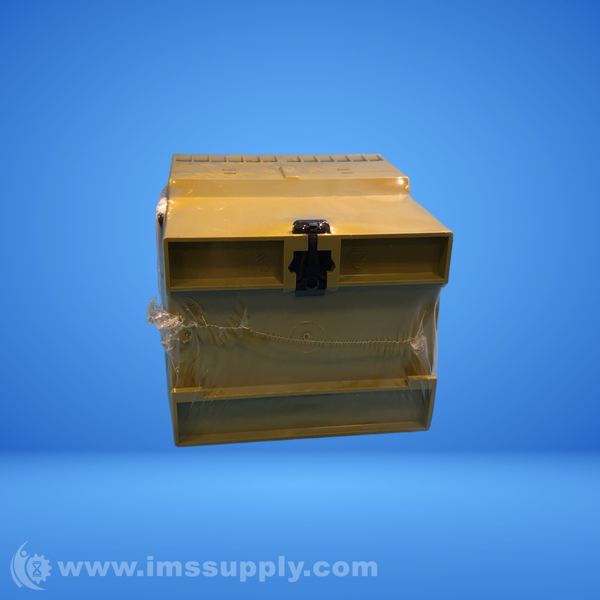

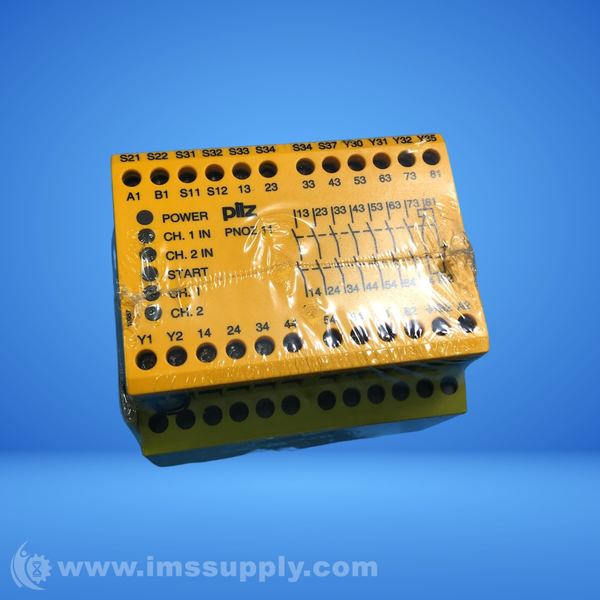

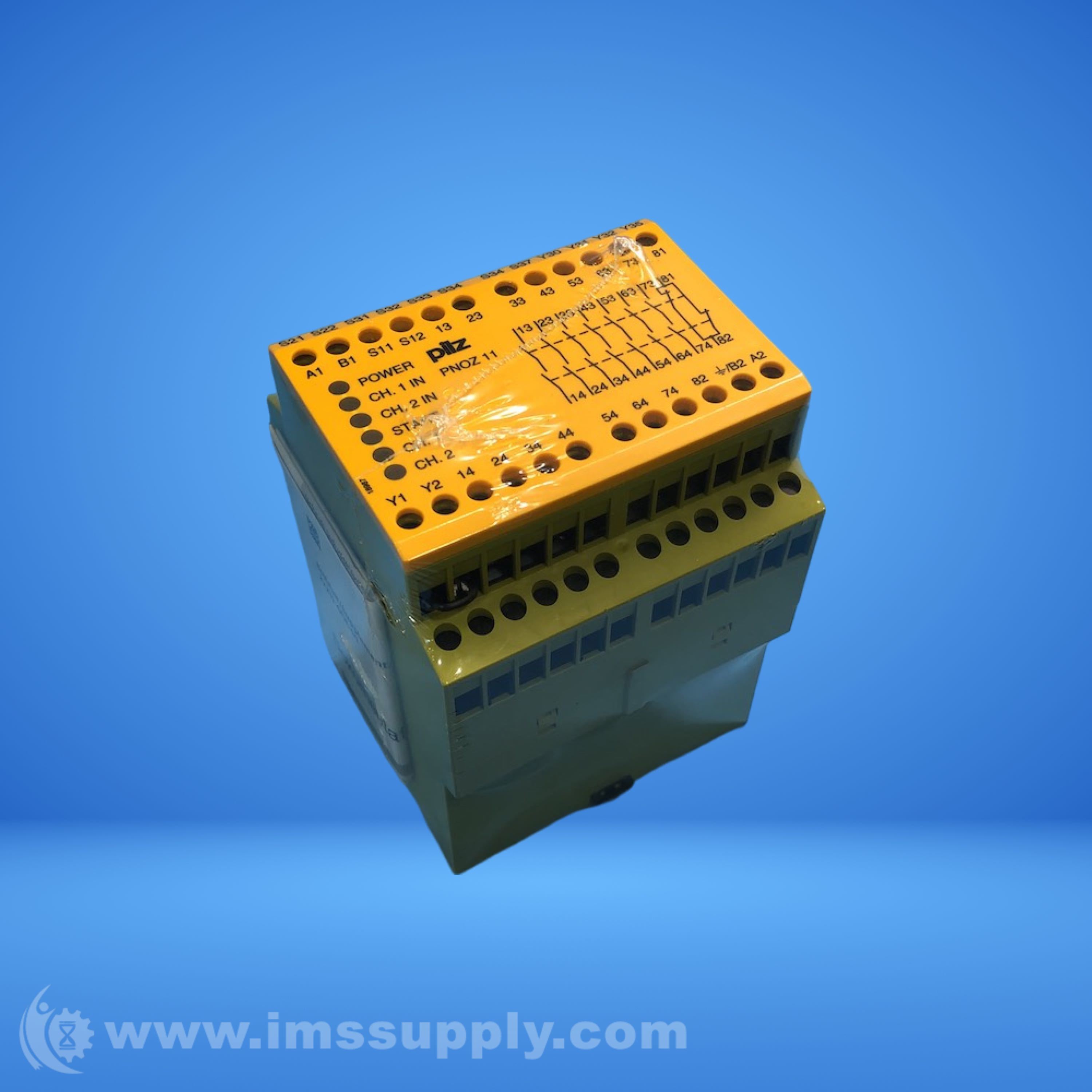

PILZ 774086 SAFETY RELAY
Quick Overview
Manufactured By: PILZ
Manufacturer Part Number: 774086
IMS Product Code: 1831384
Packaging: Sold Individually
Description:
Pilz 774086 Safety Relay
Safety relay with 1/2-channel wiring, 7 N/O and 1 N/C outputs, 230-240VAC/24VDC supply, screw terminals, monitoring E-STOP and safety gates.
Specifications
- Supply voltage: 230 - 240 V
- Type of supply voltage U1: AC
- Power consumption AC: 9 VA
- Supply voltage U2: 24 V
- Type of supply voltage U2: DC
- Number of inputs: 2
- Number of semicond. outputs: 2
- Utilisation cat. to EN 60947-1: DC-12
- Voltage AC1 safety cont.: 240 V
- Max. current AC1 safety cont.: 8 A
- Voltage DC1 safety cont.: 24 V
- Max. current DC1 safety cont.: 8 A
- Voltage AC15 safety cont.: 230 V
- Max. current AC15 safety cont.: 5 A
- Relay contact material: AgSnO2
- Ambient temperature: -10 - 55 degrees C
- Humidity rating: 93 % r. h. at 40 degrees C
- Protection type, housing: IP40
- Mounting position: any
- Housing material front plate: ABS UL 94 V0
- Connection terminal: Screw terminal
- Height dimension: 87 mm
- Width dimension: 90 mm
- Depth dimension: 121 mm
- Net weight: 640 g
- Country of Manufacture: Germany
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
