PILZ 312200 SAFETY I/O MODULE
Quick Overview
Manufactured By: PILZ
Manufacturer Part Number: PILZ-312200
IMS Product Code: 2161984
Packaging: Sold Individually
Description:

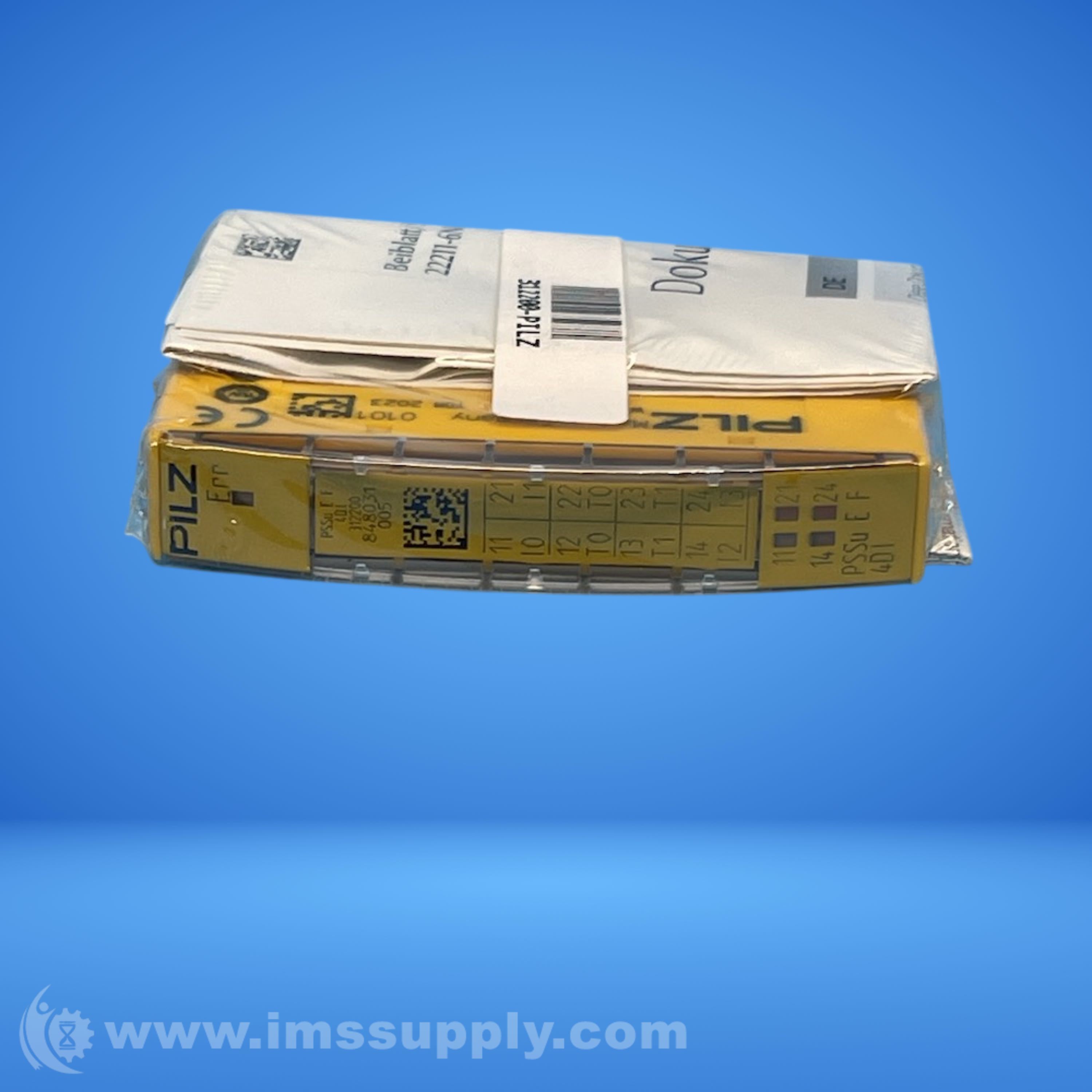

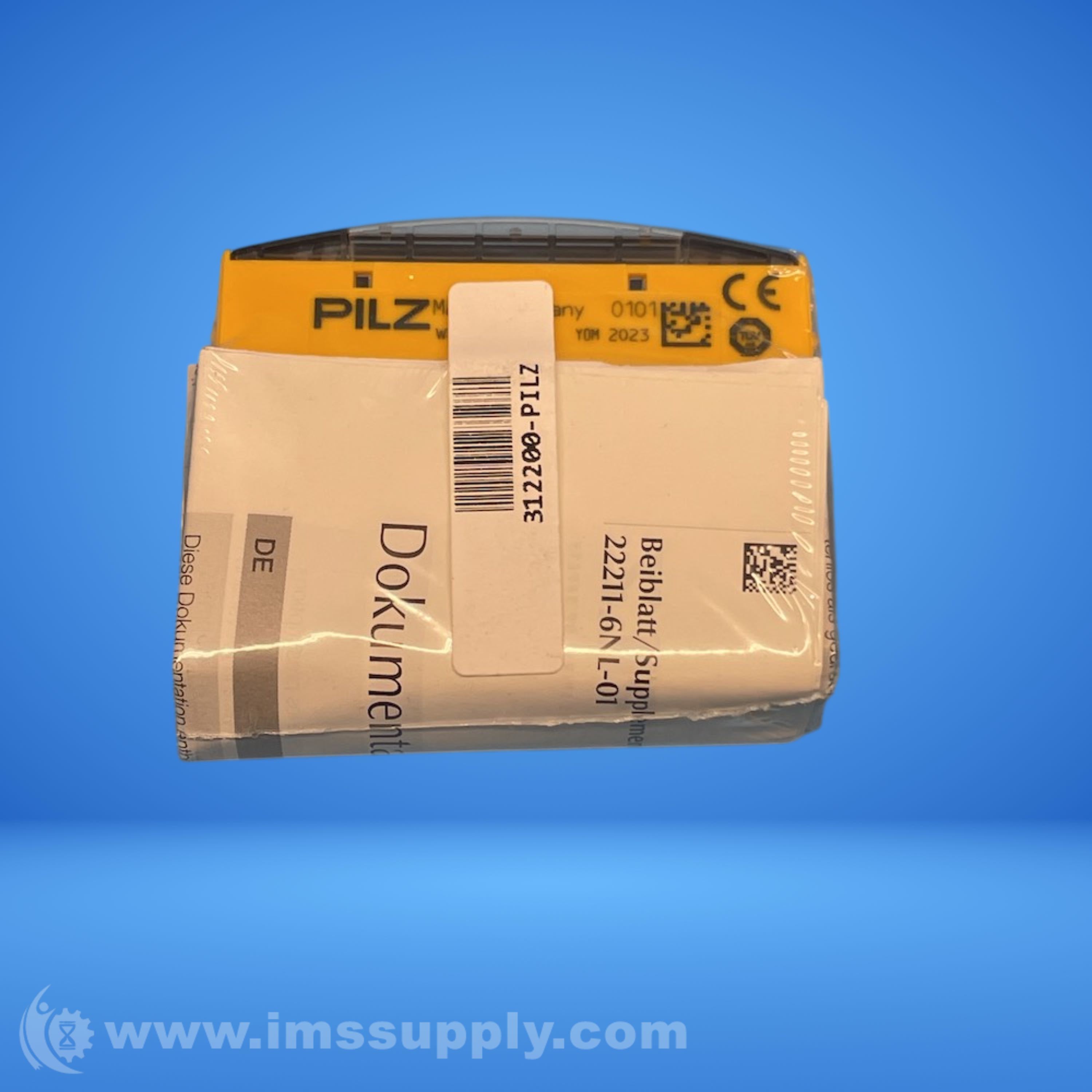

Pilz 312200 Safety I/O Module
The Pilz 312200 PSSu E F 4DI is a digital safety I/O module designed for integration into Pilz Safety Bus P systems. It provides four 24 V DC digital inputs and two 24 V DC digital outputs for monitoring and controlling safety-related devices.
Specifications
- Number of digital inputs: 4
- DC voltage at input: 24 V DC
- Potential isolation inputs: yes
- Number of test pulse outputs: 2
- Climatic suitability to: EN 60068-2-30, EN 60068-2-2, EN 60068-2-1, EN 60068-2-78, EN 60068-2-14
- Ambient temperature: 0 - 60 degrees C
- Humidity rating: 93 % r. h. at 40 degrees C
- Perm. operating height ASL: 2000 m
- EMC to standard: EN 12015, EN 12016, EN 61000-6-2, EN 61000-6-4, EN 61131-2 (Zone B)
- Vibration to standard: EN 60068-2-6
- Protection type, housing: IP20
- Terminal style: plug-in
- Height dimension: 76
- Width dimension: 12.6
- Depth dimension: 60.2
- Net weight: 35
- Housing material lower section: PC
- Housing material front plate: PC
- Input Current: 6 mA
- Output Voltage: 24 V DC
- Output Current: 0.25 A
