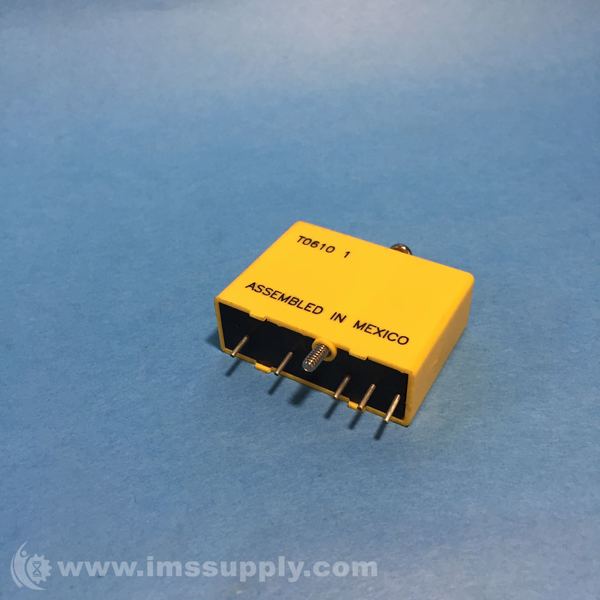

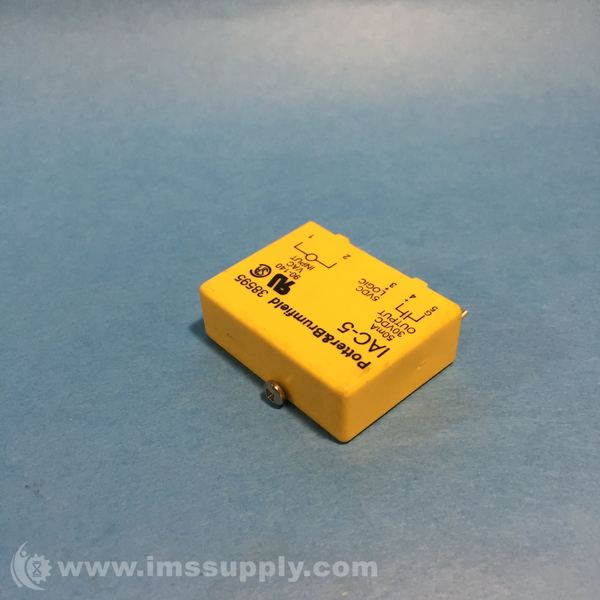

POTTER & BRUMFIELD IAC-5 AC INPUT MODULE
Quick Overview
Manufactured By: POTTER & BRUMFIELD
Manufacturer Part Number: IAC-5
IMS Product Code: 1861920
Packaging: Sold Individually
Description:
Potter & Brumfield IAC-5 AC Input Module
1 Form A SPST-NO, 90 � 140 VAC Input, 30 VDC Output, Board Mount
Specifications
- Contact Arrangement: 1 Form A SPST-NO
- Input Voltage Type: AC
- Input Voltage Range (VAC): 90 � 140
- Load Voltage Rating (VDC): 30
- Output Switching: Zero
- Isolation Voltage (Vrms): 4000
- Enclosure Type: Dust Protected
- Product Weight: 35 g [1.38 oz]
- Terminal Configuration: Solder Pins
- Relay Connection Type: PCB Termination
- Product Mounting Feature Type: Mounting Studs
- Product Mount Type: Board Mount
- Product Length: 42.3 mm [1.66 in]
- Product Width: 15.15 mm [.596 in]
- Product Height: 31.7 mm [1.24 in]
- Operating Temperature Range: -30 � 80 �C [-22 � 176 �F]
- Output Current: 50mA
- Logic Voltage: 5VDC
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 3 In Stock
