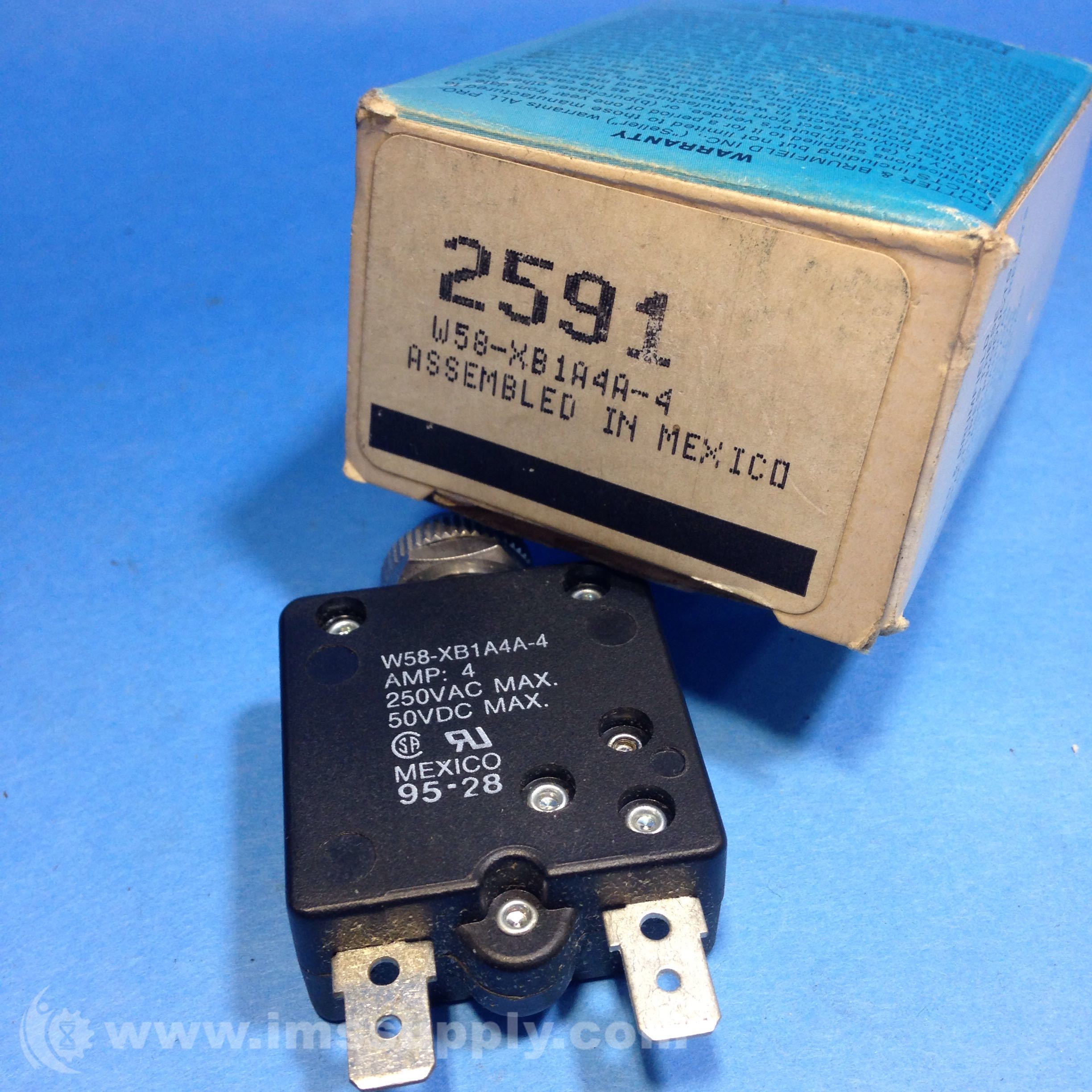

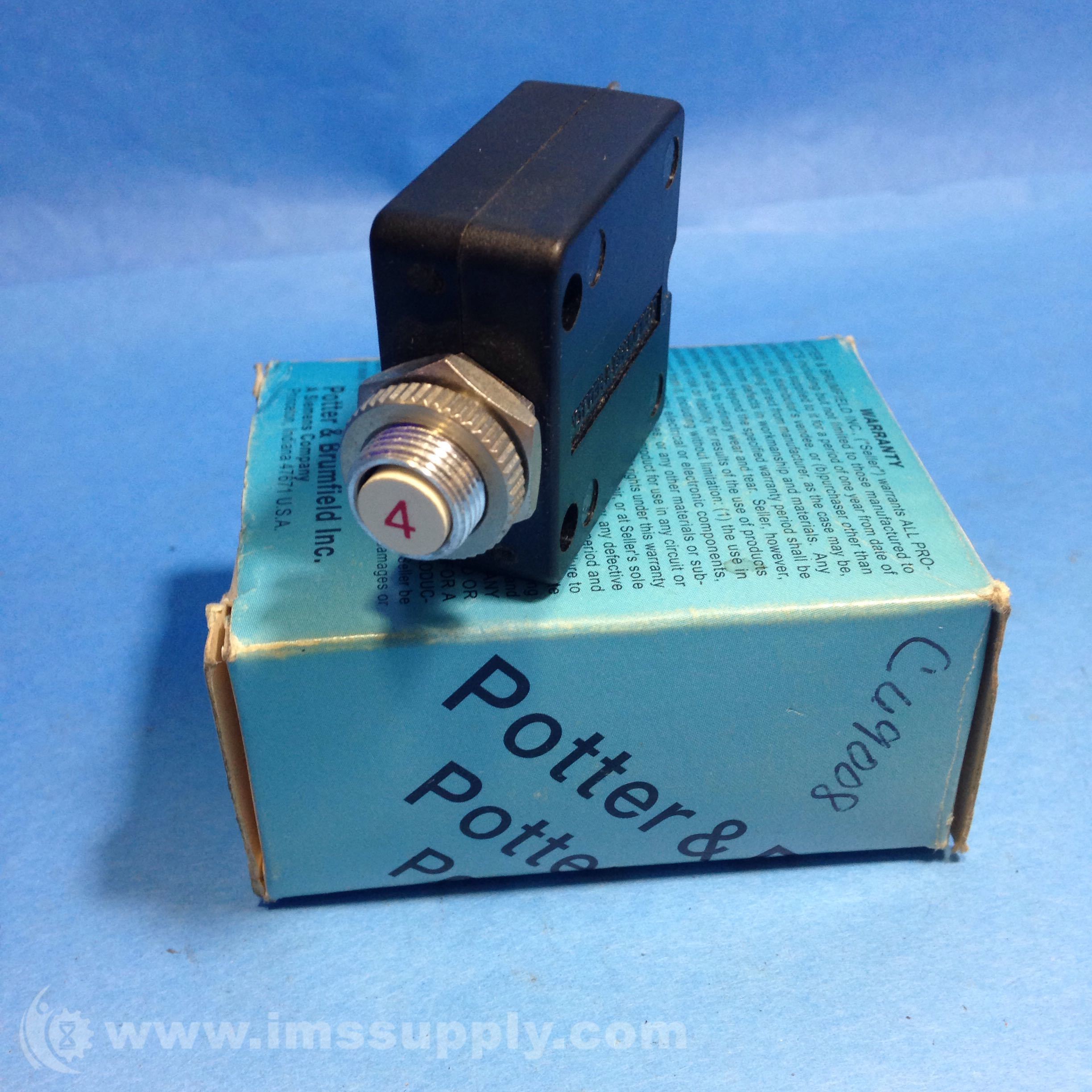

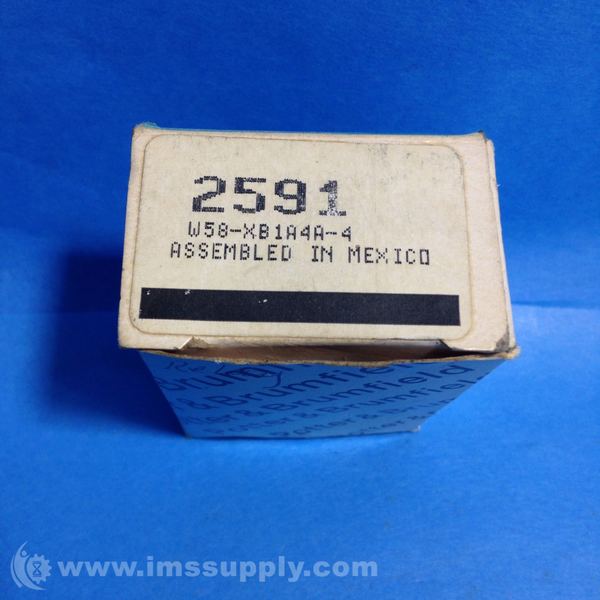

POTTER & BRUMFIELD W58-XB1A4A-4 THERMAL CIRCUIT BREAKER
Quick Overview
Manufactured By: POTTER & BRUMFIELD
Manufacturer Part Number: W58-XB1A4A-4
IMS Product Code: 1747276
Packaging: Sold Individually
Description:
Potter & Brumfield W58-XB1A4A-4 Thermal Circuit Breaker
Thermal circuit breaker with series trip, white actuator, 250 VAC, 50 VDC, 4 A, 1 pole, 10-45 seconds trip time at 200%.
Specifications
- Circuit Breaker Type: Thermal
- Circuit Function: Series Trip
- Actuator Color: White
- Operating Voltage (VAC): 250
- Operating Voltage (VDC): 50
- Current Rating (A): 4
- Interrupt Capacity: 2000A @ 50VDC or 1000A @ 250VAC
- Number of Poles: 1
- Actuator Type: Push to Reset
- Panel Cutout Size (in): .44 - .45 (Diameter)
- Trip Time at 200% (seconds): 10 - 45
- Terminal Configuration: 6.35 [.25] Straight Quick Connect Tab
- Mounting Bushing: 7/16 x .5 [12.7mm] Long
- Stamped Marking Type: Red Rate Marking
- Weight: 0.02 kgs
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
