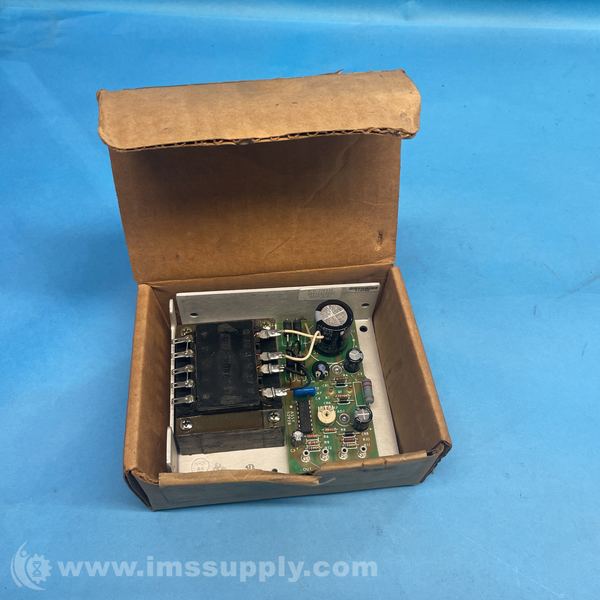

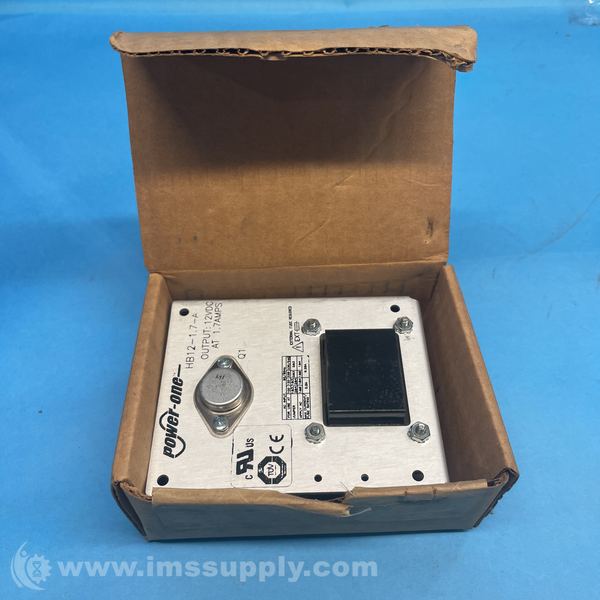

POWER-ONE HB12-1.7-A 12VDC POWER SUPPLY
Quick Overview
Manufactured By: POWER-ONE
Manufacturer Part Number: HB12-1.7-A
IMS Product Code: 2137121
Packaging: Sold Individually
Description:
Power-One HB12-1.7-A 12VDC Power Supply
Linear Power Supply, International Series, Single Output
Specifications
- AC Input Voltage: 100/120/220/240 +10%, -13% 47-63Hz
- DC Output: 12V @ 1.7A
- Line Regulation: ±0.5% for a 10% input change
- Load Regulation: ±0.5% for a 50% load change
- Output Ripple: 5.0mV PK-PK max.
- Transient Response: =50µs for 50% to 100% load change
- Overload & Short Circuit Protection: Automatic current limit/foldback
- Stability: ±0.03% for 24 Hours after 1 Hour Warm-up
- Temperature Coefficient: ±0.03%/°C max.
- Efficiency: 55%
- Agency Approvals: UL, CSA, TUV
- Case Size: 123.7mm x 101.60mm x 53.35mm / 4.87" x 4" x 2.10"
- Mounting Style: Panel Mount

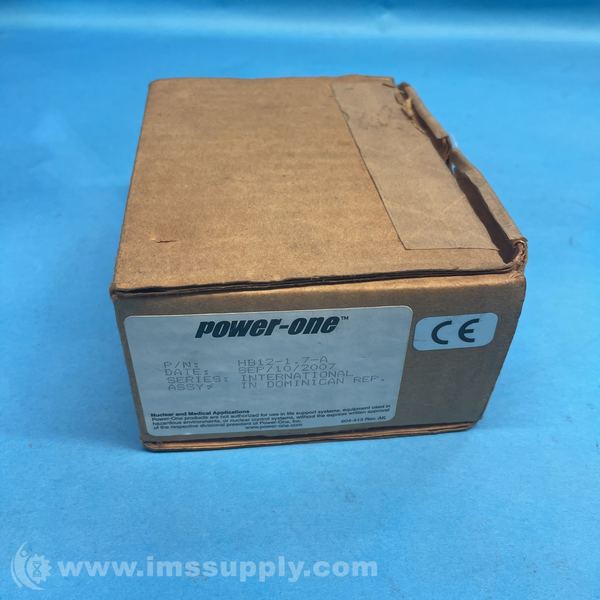

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 52 minutes.
