PROXIMITY CONTROLS CORP W11RK1-019 CAPACITIVE LEVEL SWITCH
Quick Overview
Manufactured By: PROXIMITY CONTROLS CORP
Manufacturer Part Number: W11RK1-019
IMS Product Code: 2172540
Packaging: Sold Individually
Description:

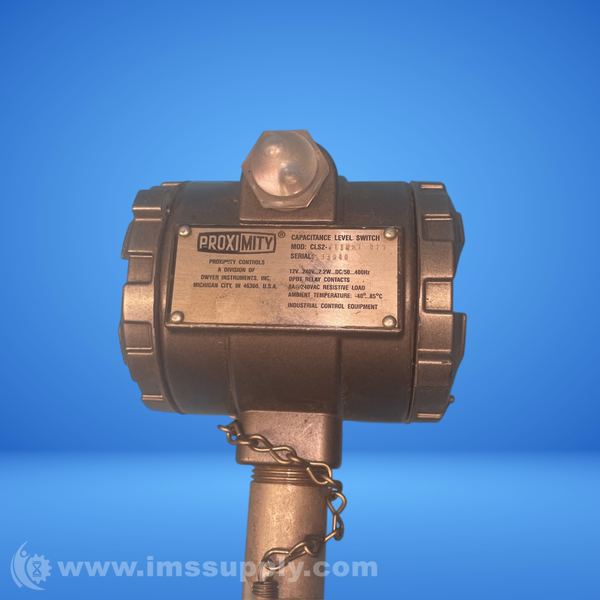

Proximity Controls Corp W11RK1-019 Capacitive Level Switch

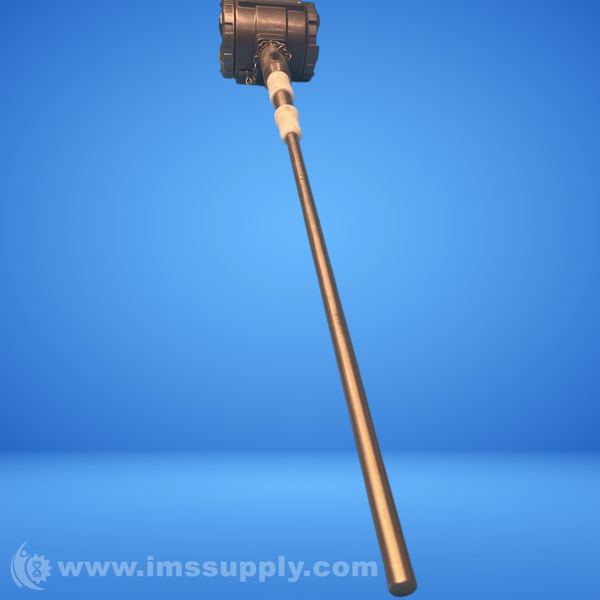

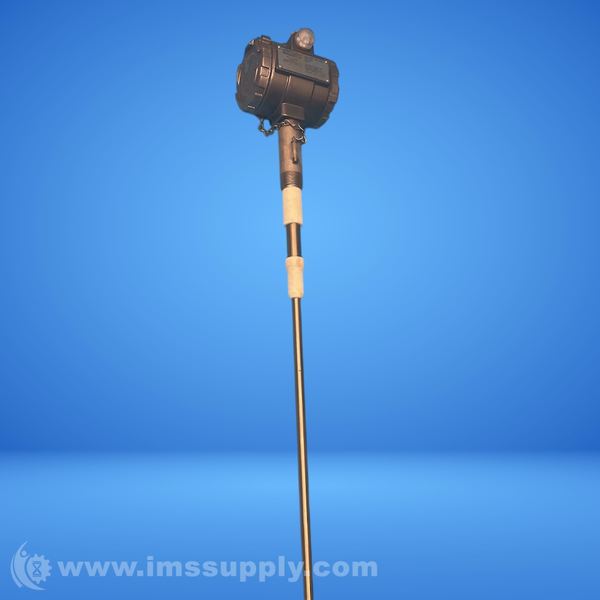

Capacitive level switch for liquids, powders and bulk materials with 19" probe.
Specifications
- Service: Liquids, powder and bulk materials compatible with wetted materials.
- Wetted Materials: 316 SS and polyvinylidene fluoride (PVDF).
- Temperature Limits: Ambient: -40 to 185 degrees F; Process: -40 to 250 degrees F.
- Pressure Limit: 365 psi.
- Enclosure Rating: Weatherproof, NEMA 4X.
- Switch Type: DPDT (two form C).
- Electrical Rating: 8A @ 120/240 VAC res., 30 VDC. 1/2 hp @ 120 VAC and 1/4 hp @ 240 VAC ind.
- Power Requirements: 12 to 240 VAC/DC.
- Power Consumption: 2.8 Watts max.
- Electric Connections: 1/2" NPT conduit opening, screw termination and removable terminal block.
- Mounting Orientation: Vertical or horizontal.
- Response Time: 0.2 seconds.
- Sensitivity: 8 selectable settings, 1-20 pF.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
